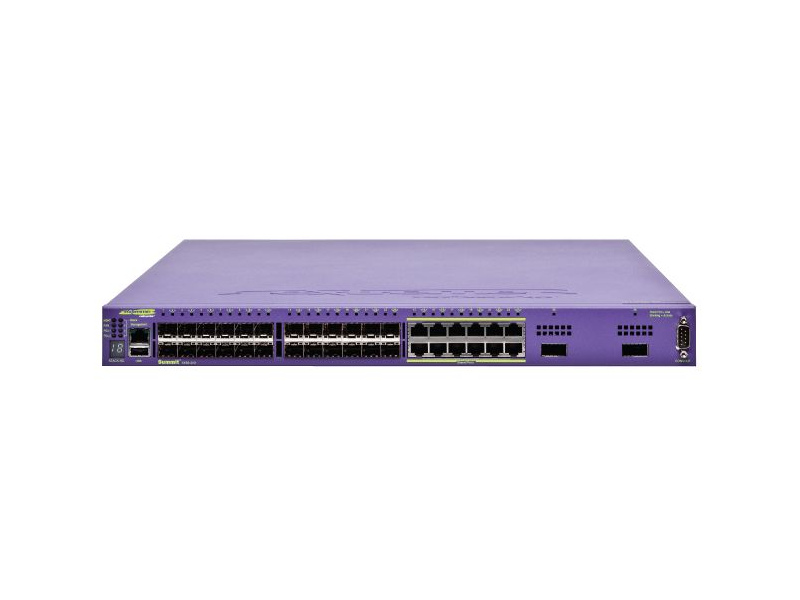

Switches Extreme Networks Summit X480 Series

Switches Extreme Networks Summit X480 Series Available to Quote:

Summit X480-24x; Summit X480-48x

End-of-Sale: Summit X480-48t

Request a Quote

Description Specifications Additional materials

Extreme Networks Summit X480 series versatile managed switches are ideal for data centers, enterprise aggregation, and Carrier Ethernet deployments. With its rich feature set, Summit X480 optimizes application performance for a variety of network deployments.

The X480 models in a compact 1U form factor have fixed ports - 24 х 1GbE ports or 48 х 100/1000MbE (SFP) ports. All ports operate at full speed and can transmit traffic to the slot using the universal VIM2 interface module.

General All

Interfaces

Summit X480-24x:	44-Port 1GbE (RJ45); 4-Port combo 1GbE (RJ45/SFP); 1 expansion slot; 1-Port console (DB-9); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
Summit X480-48t:	44-Port 1GbE (RJ45); 4-Port combo 1GbE (RJ45/SFP); 1 expansion slot; 1-Port console (DB9); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
Summit X480-48x:	48-Port 100/1000MbE (SFP); 1 expansion slot; 1-Port console (DB-9); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

44 (1U) х 441 х 483

(1.73 (1U) x 17.4 x 19.0)

Maximum Weight (kg)/(lbs)

Summit X480-24x:	9.5 (20.9)
Summit X480-48t:	10.3 (22.7)
Summit X480-48x:	9.6 (21.2)

Environmental Conditions

Relative Humidity (%)

10 to 95

Operating Temperature (°C)/(°F)

0 to 45 (32 to 113)

Maximum Power Consumption (W)

Summit X480-24x:	238
Summit X480-48t:	240
Summit X480-48x:	255

Acoustic noise (dB)

Performance

Switching Bandwidth (Gbit/s)

448

Forwarding Rate (Mp/s)

130.9

MAC Address Table (entries)

256,000

ARP Table (entries)

16,000

Layer 2 Features

VLAN

IEEE 802.1Q: 4094; GVRP; MVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP/PVST+; EAPS; ERPS (G.8032)

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	1024
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-SM (with Core license); PIM-DM (with Core license); PIM-SSM (with Core license); MSDP (with Core license); Anycast RP (with Core license)

Layer 3 features

Routing Table (routes)

IPv4:	256,000
IPv6:	8000

IP Routing

Static Routing; RIPv1/2; OSPFv2 (with Core license); IS-IS (with Core license); BGP (with Core license); MBGP (with Core license); VRRP

MPLS / VPN

Supported (with MPLS license). MPLS LDP; GRE

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; LLDP; sFlow; IPFIX; OpenFlow (with Open Flow license); SNMP v1/v2/v3; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	110 to 240 VAC, 50-60 Hz

DC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	-48 to -60 VDC

PoE (Power over Ethernet)

Not supported

Compatible Expansion Cards

Model Number	Description
VIM2-SummitStack:	Stack Card. 2-Port SummitStack
VIM2-10G4X:	4-Port 10GbE (XFP)
VIM2-SummitStack128:	Stack Card. 2-Port 64G
VIM2-SummitStack-V80:	Stack Card. 2-Port 40G
VIM3-40G4X:	4-Port 40GbE (QSFP+)

Summit X480 Datasheet (en)
