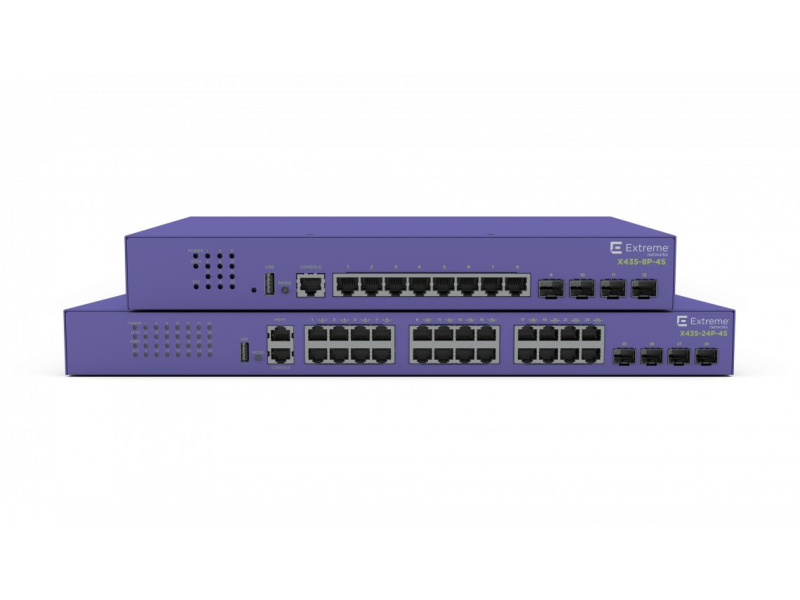

Switches Extreme Networks X435 Series

Switches Extreme Networks X435 Series Available to Quote:

X435-8T-4S; X435-8P-4S;

X435-8P-2T-W; X435-24T-4S;

X435-24P-4S

Request a Quote

Description Specifications Additional materials

Access Layer Manageable Switches with 1G access ports.

General All

Interfaces

X435-8T-4S:	8-Port 1GbE (RJ45); 4-Port 1/2.5GbE (SFP); 1-Port console (RJ45); 1-Port USB
X435-8P-4S:	8-Port 1GbE (RJ45) PoE; 4-Port 1/2.5GbE (SFP); 1-Port console (RJ45); 1-Port USB
X435-8P-2T-W:	8-Port 1GbE (RJ45) PoE+; 2-Port 1GbE (RJ45) PoE+; 1-Port console (RJ45); 1-Port USB
X435-24T-4S:	24-Port 1GbE (RJ45); 4-Port 1/2.5GbE (SFP); 1-Port console (RJ45); 1-Port out-of-band management 1GbE (RJ45); 1-Port USB
X435-24P-4S:	24-Port 1GbE (RJ45) PoE+; 4-Port 1/2.5GbE (SFP); 1-Port console (RJ45); 1-Port out-of-band management 1GbE (RJ45); 1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

X435-8T-4S: X435-8P-4S:	43.5 (1U) x 320 х 200 (1.71 (1U) x 12.6 x 7.9)
X435-8P-2T-W:	44 (1U) x 209.5 х 256.6 (1.73 (1U) x 8.2 x 10.1)
X435-24T-4S: X435-24P-4S:	43.5 (1U) x 441 х 254 (1.73 (1U) x 17.4 x 10.0)

Maximum Weight (kg)/(lbs)

X435-8T-4S:	1.87 (4.12)
X435-8P-4S:	2.2 (4.85)
X435-8P-2T-W:	1.43 (3.15)
X435-24T-4S:	2.95 (6.5)
X435-24P-4S:	3.48 (7.67)

Environmental Conditions

Relative Humidity (%)

10 to 95

Operating Temperature (°C)/(°F)

X435-8T-4S: X435-8P-4S: X435-8P-2T-W:	0 to 40 (32 to 104)
X435-24T-4S: X435-24P-4S:	0 to 45 (32 to 113)

Maximum Power Consumption (W)

X435-8T-4S:	16.7
X435-8P-4S:	155.2
X435-8P-2T-W:	122.5
X435-24T-4S:	21.3
X435-24P-4S:	449.8

Acoustic noise (dB)

Performance

Switching Bandwidth (Gbit/s)

X435-8T-4S: X435-8P-4S	36
X435-8P-2T-W:	20
X435-24T-4S: X435-24P-4S:	68

Forwarding Rate (Mp/s)

X435-8T-4S: X435-8P-4S	26.8
X435-8P-2T-W:	14.9
X435-24T-4S: X435-24P-4S:	50.6

MAC Address Table (entries)

16,000

ARP Table (entries)

3100

Layer 2 Features

VLAN

IEEE 802.1Q: 4094 QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; EAPS; ERPS (G.8032)

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	64
Multicast VLAN (MVR):	Supported
Multicast Routing:	Not supported

Layer 3 Features

Routing Table (routes)

IPv4:	32
IPv6:	16

IP Routing

Static Routing; RIP v1/v2

MPLS / VPN

Not supported

VXLAN

Not supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Built-in
Quantity:	1
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Not supported

PoE (Power over Ethernet)

Supported by:	X435-8P-4S; X435-8P-2T-W; X435-24P-4S
PoE (802.3af) (15W per port):
X435-8P-4S:	8 ports
X435-8P-2T-W:	6 ports
X435-24P-4S:	24 ports

PoE (802.3at) (30W per port):
X435-8P-4S:	3 ports
X435-8P-2T-W:	4 ports
X435-24P-4S:	12 ports

PoE++ (802.3bt) (60W per port):
X435-8P-2T-W:	2 ports

PoE++ (802.3bt) (90W per port)
X435-8P-2T-W:	1 port

Compatible Expansion Cards

Not supported
