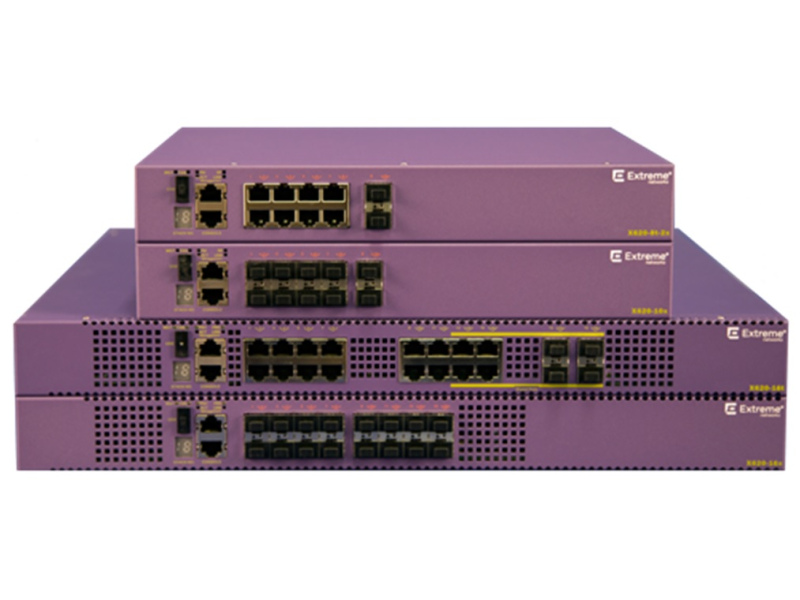

Switches Extreme Networks X620 Series

Switches Extreme Networks X620 Series Available to Quote:

X620-8t-2x; X620–10x

X620–16t; X620-16x

Request a Quote

Description Specifications Additional materials

X620 switches are ideal for installing medium and large operators on traffic aggregation nodes, as well as in small data centers for connecting servers or aggregating intranet resources.

X620 supports SummitStack-V technology that allows stacking up to 8 switches.

General All

Interfaces

X620-8t-2x:	8-Port 100MbE/1GbE/10GbE (RJ45) with EEE; 2-Port 1/10GbE (SFP/SFP+); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
X620-10x:	10-Port 1/10GbE (SFP/SFP+); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
X620-16t:	12-Port 100MbE/1GbE/10GbE (RJ45) with EEE; 4-Port combo (100MbE/1GbE/10GbE (RJ45) / 1/10GbE (SFP/SFP+)); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
X620-16x:	16-Port 1/10GbE (SFP/SFP+); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

X620-8t-2x: X620-10x:	43 (1U) х 304.8 х 262 (1.69 (1U) x 12 x 10.3)
X620-16t: X620-16x:	43 (1U) х 432 х 442 (1.69 (1U) x 17 x 17.4)

Maximum Weight (kg)/(lbs)

X620-8t-2x:	2.89 (6.37)
X620-10x:	2.74 (6.04)
X620-16t:	5.46 (12.04)
X620-16x:	5.04 (11.11)

Environmental Conditions

Relative Humidity (%)

10 to 95

Operating Temperature (°C)/(°F)

0 to 50 (32 to 122)

Maximum Power Consumption (W)

X620-8t-2x:	52
X620-10x:	36
X620-16t:	102
X620-16x:	63

Acoustic noise (dB)

Performance

Switching Bandwidth (Gbit/s)

X620-8t-2x: X620-10x:	200
X620-16t: X620-16x:	320

Forwarding Rate (Mp/s)

X620-8t-2x: X620-10x:	148.8
X620-16t: X620-16x:	238.08

MAC Address Table (entries)

16,000

ARP Table (entries)

1500

Layer 2 Features

VLAN

IEEE 802.1Q: 4094; GVRP; MVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP/PVST+; EAPS; ERPS (G.8032)

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	1024
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-SM (with Advanced Edge license)

Layer 3 features

Routing Table (routes)

IPv4:	480
IPv6:	240

IP Routing

Static Routing; RIPv1/2; OSPFv2 (with Advanced Edge license); VRRP (with Advanced Edge license)

MPLS / VPN

Not supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; LLDP; sFlow; Open Flow (with Open Flow license); SNMP v1/v2/v3; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:
X620-8t-2x: X620-10x:	Built-in
X620-16t: X620-16x:	Removable
Quantity:
X620-8t-2x: X620-10x:	1
X620-16t: X620-16x:	2
Rated voltage range:	110 to 240 VAC, 50-60 Hz

DC PSU

Type:
X620-16t: X620-16x:	Removable
Quantity:
X620-16t: X620-16x:	2
Rated voltage range:	-48 to -60 VDC

PoE (Power over Ethernet)

Not supported

Compatible Expansion Cards

Not supported
