Switches Huawei CE5800 Series

End-of-Sale

Please see "Similar Products" below.

Description Specifications Additional materials

Huawei CloudEngine5800 Series Gigabit Switches for data centers and next-generation campus networks.

Modern design and hardware provides a high density of 10GbE access ports. Based on the Huawei VRP8 software platform, the CE5800 switches support the TRILL protocol, and the stack (iStack) ability.

iStack allows customers to combine up to 16 switches into a single logical device. iStack allows to increase ports and throughput by simply adding a switch to the stack

General All

Interfaces

CE5855-24T4S2Q-EI:	24-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 2-Port 40GbE (QSFP); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
CE5850-48T4S2Q-HI:	48-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 2-Port 40GbE (QSFP); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
CE5850-48T4S2Q-EI:	48-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 2-Port 40GbE (QSFP); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
CE5810-48T4S-EI:	48-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB

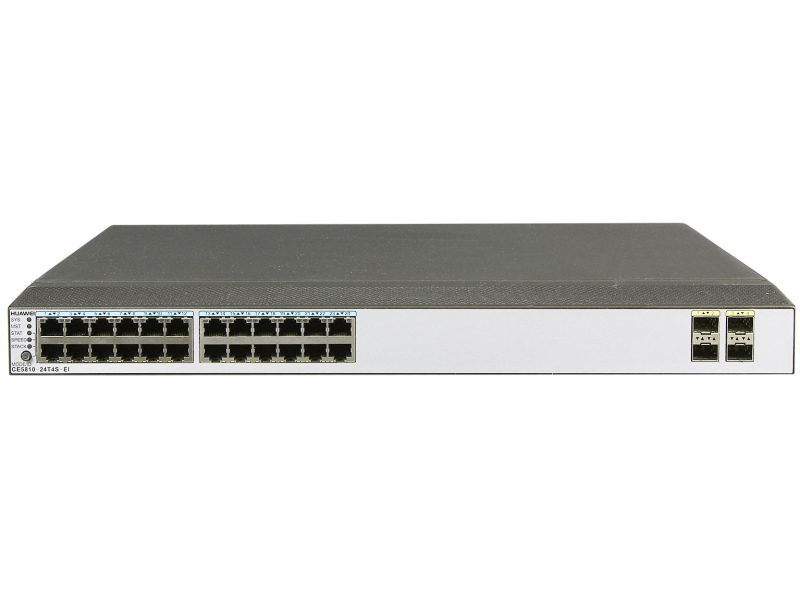

CE5810-24T4S-EI:	24-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

43.6 (1U) х 442 х 420

(1.72 (1U) x 17.4 x 16.54)

Maximum Weight (kg)/(lbs)

CE5855-24T4S2Q-ЕI:	7.5 (16.53)
CE5850-48T4S2Q-HI: CE5850-48T4S2Q-EI:	8.8 (19.4)
CE5810-48T4S-EI:	8.2 (18.08)
CE5810-24T4S-EI:	8.0 (17.64)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)/(°F)

0 to 40 (32 to 104)

Maximum Power Consumption (W)

CE5855-24T4S2Q-ЕI:	90
CE5850-48T4S2Q-HI:	131
CE5850-48T4S2Q-EI:	133
CE5810-48T4S-EI:	92
CE5810-24T4S-EI:	68

Acoustic noise (dB)

CE5855-24T4S2Q-ЕI: CE5850-48T4S2Q-HI:	51
CE5850-48T4S2Q-EI:	45
CE5810-48T4S-EI: CE5810-24T4S-EI:	47

Performance

Switching Bandwidth (Gbit/s)

CE5855-24T4S2Q-ЕI:	288
CE5850-48T4S2Q-HI: CE5850-48T4S2Q-EI:	336
CE5810-48T4S-EI:	176
CE5810-24T4S-EI:	128

Forwarding Rate (Mp/s)

CE5855-48T4S2Q-ЕI:	252
CE5855-24T4S2Q-ЕI:	216
CE5850-48T4S2Q-HI:	252
CE5810-48T4S-EI:	132
CE5810-24T4S-EI:	96

MAC Address Table (entries)

128,000

ARP Table (entries)

128,000

Layer 2 Features

VLAN

IEEE 802.1Q: 4094. QinQ; VLAN Translation

Layer 2 Reliability

CE5855-24T4S2Q-ЕI:	STP/RSTP/MSTP; ERPS (G.8032)
CE5850-48T4S2Q-HI: CE5850-48T4S2Q-EI: CE5810-48T4S-EI: CE5810-24T4S-EI:	STP/RSTP/MSTP; ERPS (G.8032); TRILL

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	2048
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-SM; PIM-SSM; MBGP

Layer 3 Features

Routing Table (routes)

IPv4:	16,000
IPv6:	16,000

IP Routing

Static Routing, RIPv1/2, OSPFv2, IS-IS, BGP, VRRP

MPLS / VPN

Not supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; NETCONF; LLDP, SNMP v1/v2/v3; RMON; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	-48 to -60 VDC

PoE (Power over Ethernet)

Not supported

Compatible Expansion Cards

Not supported
