End-of-Sale.
Please see "Similar Products" below.
Huawei CE6860 Series Gigabit Switch with fixed 25GbE and 100GbE ports is designed for data centers (DPC) and large campus networks.

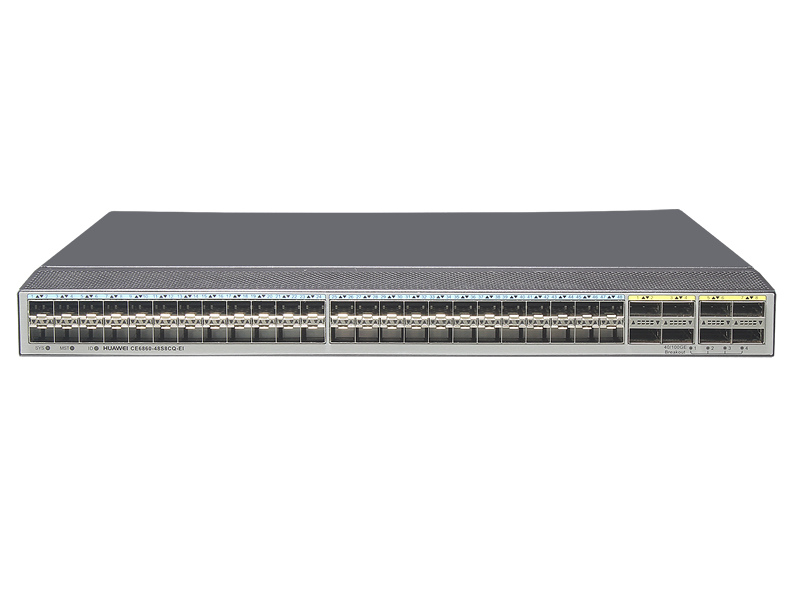

The CE6860-48S8CQ-EI switch is equipped with 48 х 10/25GbE (SFP28) ports and 8 х 40/100GbE (QSFP28) ports, provides 10/25GbE high-density access, and enables enterprises and telecom operators to build a scalable network platform for data centers.
|
CE6860-48S8CQ-EI:
|
|
8.8 (19.40 lbs)
5 to 90
0 to 40 (32 to 104 °F)
600
60
4
3200
136,000
84,000
IEEE 802.1Q: 4094. QinQ; VLAN Translation
STP/RSTP/MSTP; ERPS (G.8032); TRILL; VXLAN
| IGMP snooping: | v1/v2/v3 |
| IGMP groups: | 4096 |
| Multicast VLAN (MVR): | Supported |
| Multicast Routing: | PIM-SM, MBGP, MSDP |
| IPv4: | 128,000 |
| IPv6: | 64,000 |
Static Routing, RIPv1/2, OSPFv2, IS-IS, BGP, VRRP
Supported
| Local AAA: | Supported |
| RADIUS, TACACS+: | Supported |
| DHCP Server: | Supported |
| DHCP Relay option82: | Supported |
| DHCP Snooping: | Supported |
| Loop detection: | Supported |
| IP Source Guard: | Supported |
| Bandwidth Limit: | Supported |
| Broadcast, multicast, unknown unicast suppression: | Supported |
Telnet; SSH; NETCONF; Netstream; sFlow; SNMP v1/v2/v3; RMON; Syslog; NTP
| Type: | Removable |
| Quantity: | 2 |
| Rated voltage range: | 90 to 220 VAC, 50-60 Hz |
| Type: | Removable |
| Quantity: | 2 |
| Rated voltage range: | 38.4 to -72 VDC |
Not supported
Not supported
