Switches Huawei CE8850 Series

Switches Huawei CE8850 Series Available to Quote:

CE8850-32CQ-EI;

CE8850-64CQ-EI;

Request a Quote

Description Specifications Additional materials

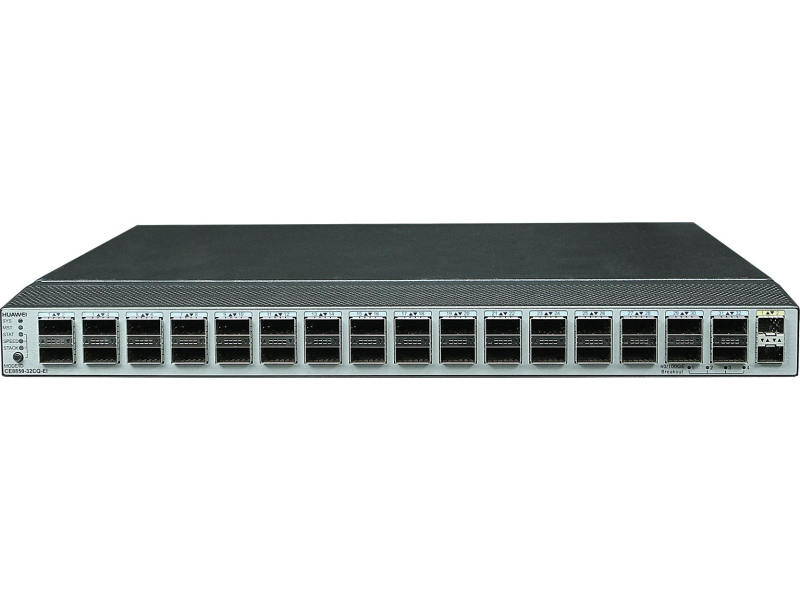

Huawei CE8850-32CQ-EI is a 32-port 100GbE gigabit switch with flexible fixed 40/100GbE ports for data centers and large campus networks.

Stable and reliable operation of L2 and L3 switching allows you to build a flexible and virtual network of high quality. The switch runs on the Huawei VRP8 software platform and provides extensive functions for servicing data centers.

General All

Interfaces

CE8850-32CQ-EI:	32-Port 40/100GbE (QSFP28); 2-Port 1/10GbE (SFP+); 1-Port console (RJ45); 1-Port out-of-band management 1GbE (RJ45); 1-Port USB
CE8850-64CQ-EI:	64-Port 40/100GbE (QSFP28); 1-Port console (RJ45/miniUSB); 2-port out-of-band management 1GbE (RJ45); 1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)

CE8850-32CQ-EI:	43.6 (1U) x 442 х 420 (1.71 (1U) x 17.4 x 16.53 in)
CE8850-32CQ-EI:	88.1 (2U) x 442 х 600 (3.47 (2U) x 17.4 x 23.62 in)

Maximum Weight (kg)

CE8850-32CQ-EI:	9.0 (19.8 lbs)
CE8850-64CQ-EI:	22.2 (48.9 lbs)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)

0 to 40 (32 to 104 °F)

Maximum Power Consumption (W)

CE8850-32CQ-EI:	453
CE8850-64CQ-EI:	965

Acoustic noise (dB)

CE8850-32CQ-EI:	88
CE8850-64CQ-EI:	94

Performance

Switching Bandwidth (Tbit/s)

CE8850-32CQ-EI:	6.4
CE8850-64CQ-EI:	12.8

Forwarding Rate (Mp/s)

CE8850-32CQ-EI:	3200
CE8850-64CQ-EI:	4482

MAC Address Table (entries)

CE8850-32CQ-EI:	136,000
CE8850-64CQ-EI:	264,000

ARP Table (entries)

CE8850-32CQ-EI:	84,000
CE8850-64CQ-EI:	156,000

Layer 2 Features

VLAN

IEEE 802.1Q: 4094. QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; ERPS (G.8032); TRILL; VXLAN

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	4096
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-SM, MBGP, MSDP

Layer 3 Features

Routing Table (routes)

IPv4:
CE8850-32CQ-EI:	192,000
CE8850-32CQ-EI:	360,000
IPv6:
CE8850-32CQ-EI:	128,000
CE8850-64CQ-EI:	256,000

IP Routing

Static Routing, RIPv1/2, OSPFv2, IS-IS, BGP, VRRP

MPLS / VPN

Supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Not supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; NETCONF; Netstream; sFlow; SNMP v1/v2/v3; RMON; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Not supported

PoE (Power over Ethernet)

Not supported

Compatible expansion cards

Not supported

CE8850 Datasheet (en)
