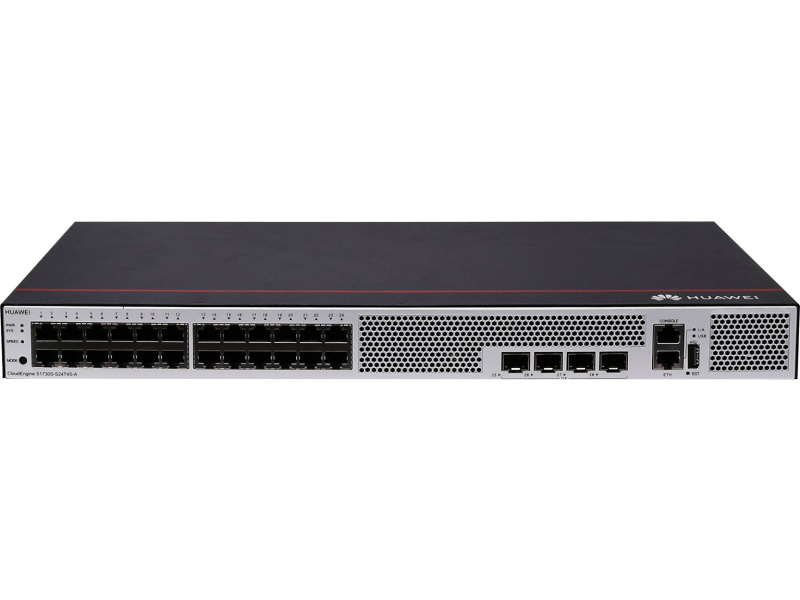

Switches Huawei CloudEngine S1730S Series

Switches Huawei CloudEngine S1730S Series Available to Quote:

S1730S-S24T4S-A; S1730S-S24P4S-A

S1730S-S48T4S-A; S1730S-S48P4S-A

S1730S-S24T4X-A

S1730S-H24T4S-A; S1730S-H48T4S-A

Request a Quote

Description Specifications Additional materials

The Huawei CloudEngine S1730S Series Ethernet Access Switches provide flexible network deployment. S1730S Series Switches are easy to configure and maintain, ideal for small and medium-sized enterprises, Internet cafes, hotels and schools.

S1730S switches in a compact 1U form factor have fixed configurations:

24 x 1GbE (RJ45) ports and 4 x 1GbE (SFP);

24 x 1GbE (RJ45) PoE+ ports and 4 x 1GbE (SFP);

48 x 1GbE (RJ45) ports and 4 x 1GbE (SFP);

48 x 1GbE (RJ45) PoE+ ports and 4 x 1GbE (SFP);

24 x 1GbE (RJ45) ports and 4 x 10GbE (SFP+);

General All

Interfaces

S1730S-S24T4S-A:	24-Port 1GbE (RJ45); 4-Port 1GbE (SFP); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S1730S-S24P4S-A:	24-Port 1GbE (RJ45) PoE+; 4-Port 1GbE (SFP); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S1730S-S48T4S-A:	48-Port 1GbE (RJ45); 4-Port 1GbE (SFP); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S1730S-S48P4S-A:	48-Port 1GbE (RJ45) PoE+; 4-Port 1GbE (SFP); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S1730S-S24T4X-A:	24-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S1730S-H24T4S-A:	24-Port 1GbE (RJ45); 4-Port 1GbE (SFP); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S1730S-H48T4S-A:	48-Port 1GbE (RJ45); 4-Port 1GbE (SFP); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

43.6 (1U) х 442 х 220

(1.72 (1U) x 17.4 x 8.66)

Maximum Weight (kg)/(lbs)

S1730S-S24T4S-A:	4.08 (8.99)
S1730S-S24P4S-A:	4.31 (9.50)
S1730S-S48T4S-A:	4.42 (9.74)
S1730S-S48P4S-A:	8.7 (19.2)
S1730S-S24T4X-A:	4.0 (8.8)
S1730S-H24T4S-A:	4.08 (8.99)
S1730S-H48T4S-A:	4.42 (9.74)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)/(°F)

-5 to +55 (23 to 131)

Maximum Power Consumption (W)

S1730S-S24T4S-A:	34
S1730S-S24P4S-A:	451
S1730S-S48T4S-A:	53
S1730S-S48P4S-A:	911
S1730S-S24T4X-A:	43
S1730S-H24T4S-A:	34
S1730S-H48T4S-A:	53

Acoustic noise (dB)

S1730S-S24T4S-A:	0
S1730S-S24P4S-A:	57.7
S1730S-S48T4S-A:	53.3
S1730S-S48P4S-A:	58.9
S1730S-S24T4X-A:	50.8
S1730S-H24T4S-A:	0
S1730S-H48T4S-A:	53.3

Performance

Switching Bandwidth (Gbit/s)

S1730S-S24T4S-A:

S1730S-S24P4S-A:

S1730S-S24T4X-A:

S1730S-H24T4S-A:

168

S1730S-S48T4S-A:

S1730S-S48P4S-A:

S1730S-H48T4S-A:

216

Forwarding Rate (Mp/s)

S1730S-S24T4S-A:

S1730S-S24P4S-A:

S1730S-H24T4S-A:

41.66

S1730S-S24T4X-A:

95.23

S1730S-S48T4S-A:

S1730S-S48P4S-A:

S1730S-H48T4S-A:

77.38

MAC Address Table (entries)

S1730S-S24T4S-A:

S1730S-S24P4S-A:

S1730S-S24T4X-A:

S1730S-S48T4S-A:

S1730S-S48P4S-A:

8000

S1730S-H24T4S-A:

S1730S-H48T4S-A:

16,000

ARP Table (entries)

4096

Layer 2 Features

VLAN

IEEE 802.1Q: 4094; GVRP; QinQ

Layer 2 Reliability

S1730S-S24T4S-A:

S1730S-S24P4S-A:

S1730S-S24T4X-A:

S1730S-S48T4S-A:

S1730S-S48P4S-A:

STP/RSTP/MSTP

S1730S-H24T4S-A:

S1730S-H48T4S-A:

STP/RSTP/MSTP; RRPP; ERPS (G.8032)

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	1024
Multicast VLAN (MVR):	Supported
Multicast Routing:	Not supported

Layer 3 features

Routing Table (routes)

IPv4:	2048
IPv6:	512

IP Routing

Static Routing

MPLS / VPN

Not supported

VXLAN

Not supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Only RADIUS is supported
DHCP Server:	Not supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop Detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

S1730S-S24T4S-A:

S1730S-S24P4S-A:

S1730S-S24T4X-A:

S1730S-S48T4S-A:

S1730S-S48P4S-A:

Web; LLDP; Syslog; NTP

S1730S-H24T4S-A:

S1730S-H48T4S-A:

Telnet; SSH; Web; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:
S1730S-S24T4S-A: S1730S-S24P4S-A: S1730S-S24T4X-A: S1730S-S48T4S-A: S1730S-H24T4S-A: S1730S-H48T4S-A:	Built-in
S1730S-S48P4S-A:	Removable
Quantity:	1
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Not supported

PoE (Power over Ethernet)

Supported by:	S1730S-S24P4S-A; S1730S-S48P4S-A
PoE (802.3af) (15W per port):
S1730S-S24P4S-A:	24 ports
S1730S-S48P4S-A:	48 ports

PoE+ (802.3аt) (30W per port):
S1730S-S24P4S-A:	12 ports
S1730S-S48P4S-A:	29 ports

PoE++ (802.3bt) (60W per port):	Not supported

PoE++ (802.3bt) (90W per port):	Not supported

Compatible Expansion Cards

Not supported
