Switches Huawei S2700-SI Series

End-of-Sale

Please see "Similar Products" below.

Description Specifications Additional materials

The access switches of the Huawei S2700-SI series provide flexible network deployment, comprehensive QoS QoS policies, and enable corporate customers to create next-generation IT networks.

S2700-SI models in a compact form factor (1U) with fixed ports - 8 х 10/100MbE ports, 16 х 10/100MbE ports, 24 х 10/100MbE ports, or 48 х 10/100MbE ports.

The S2700-SI switches use Huawei Versatile Routing Platform (VRP) software provides easy management, maintenance, security and data protection on the network.

General All

Interfaces

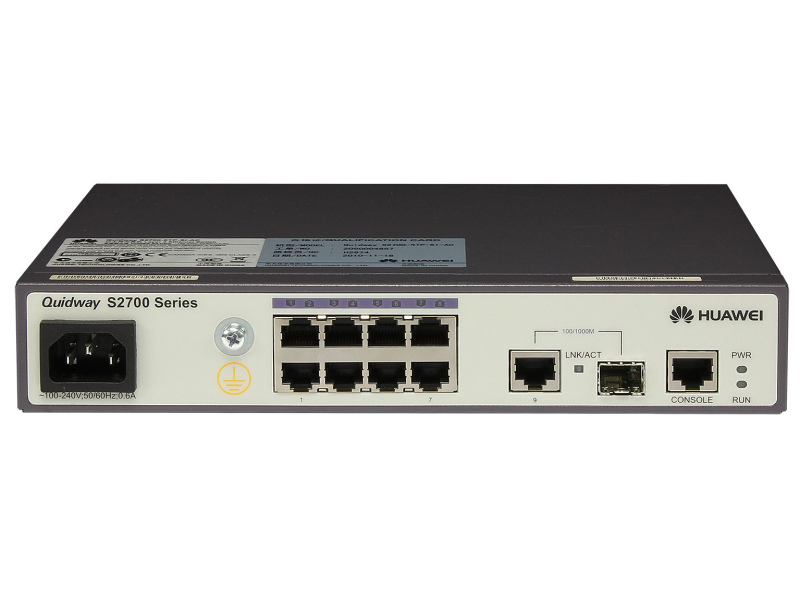

S2700-9TP-SI-AC:	8-Port 10/100MbE (RJ45); 1-Port combo 1GbE (RJ45/SFP); 1-Port console (RJ45)
S2700-18TP-SI-AC:	16-Port 10/100MbE (RJ45); 2-Port combo 1GbE (RJ45/SFP); 1-Port console (RJ45)
S2700-26TP-SI-AC:	24-Port 10/100MbE (RJ45); 2-Port combo 1GbE (RJ45/SFP); 1-Port console (RJ45)
S2710-52P-SI-AC:	48-Port 10/100MbE (RJ45); 2-Port 1GbE (SFP); 1-Port console (RJ45)

Physical Parameters

Dimensions (HxWxD) (mm)

S2700-9TP-SI-AC:	43.6 (1U) х 250 х 180 (1.72 (1U) x 9.84 x 7.09 in)
S2700-18TP-SI-AC: S2700-26TP-SI-AC: S2710-52P-SI-AC:	43.6 (1U) х 442 х 220 (1.72 (1U) x 17.4 x 8.66 in)

Maximum Weight (kg)

S2700-9TP-SI-AC:	1.4 (3.09 lbs)
S2700-18TP-SI-AC: S2700-26TP-SI-AC:	2.4 (5.29 lbs)
S2710-52P-SI-AC:	3.0 (6.61 lbs)

Environmental Conditions

Relative Humidity (%)

10 to 90

Operating Temperature (°C)

-5 to +50 (23 to 122 °F)

Maximum Power Consumption (W)

S2700-9TP-SI-AC:	12.8
S2700-18TP-SI-AC:	14.5
S2700-26TP-SI-AC:	15.5
S2710-52P-SI-AC:	38.0

Acoustic noise (dB)

S2700-9TP-SI-AC: S2700-18TP-SI-AC: S2700-26TP-SI-AC:	0
S2710-52P-SI-AC:	52

Performance

Switching Bandwidth (Gbit/s)

Forwarding Rate (Mp/s)

S2700-9TP-SI-AC:	2.7
S2700-18TP-SI-AC:	5.4
S2700-26TP-SI-AC:	6.6
S2710-52P-SI-AC:	13.2

MAC Address Table (entries)

8000

ARP Table (entries)

256

Layer 2 Features

VLAN

IEEE 802.1Q: 4094

Layer 2 Reliability

S2700-9TP-SI-AC: S2700-18TP-SI-AC: S2700-26TP-SI-AC:	STP/RSTP
S2710-52P-SI-AC:	STP/RSTP/MSTP

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	256
Multicast VLAN (MVR):	Not supported
Multicast Routing:	Not supported

Layer 3 Features

Routing Table (routes)

IPv4:	16
IPv6:	16

IP Routing

Static Routing

MPLS / VPN

Not supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Not supported
DHCP Relay option82:	Not supported
DHCP Snooping:	Not supported
Loop detection:	Not supported
IP Source Guard:	Not supported
Bandwidth Limit:	Not supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; Web; SNMP v1/v2/v3; RMON; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Built-in
Quantity:	1
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Not supported

PoE (Power over Ethernet)

Not supported

Compatible Expansion Cards

Not supported

S2700-SI Datasheet (en)
