Switches Huawei S3700TP-EI Series
Switches Huawei S3700TP-EI Series

End-of-Sale

Please see "Similar Products" below.




Description Specifications Additional materials

Huawei S3700TP-EI Series Layer 3 Managed Switches provide flexible switching, PoE support, IPv6 support, and enable corporate customers to create next-generation IT networks.

General All
Interfaces
1
S3700-28TP-EI-AC/DC:
  • 24-Port 10/100MbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)
S3700-28TP-EI-MC-AC:
  • 24-Port 10/100MbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 2-Port monitoring (RJ45);
  • 1-Port console (RJ45)
S3700-28TP-PWR-EI:
  • 24-Port 100MbE (RJ45) PoE;
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

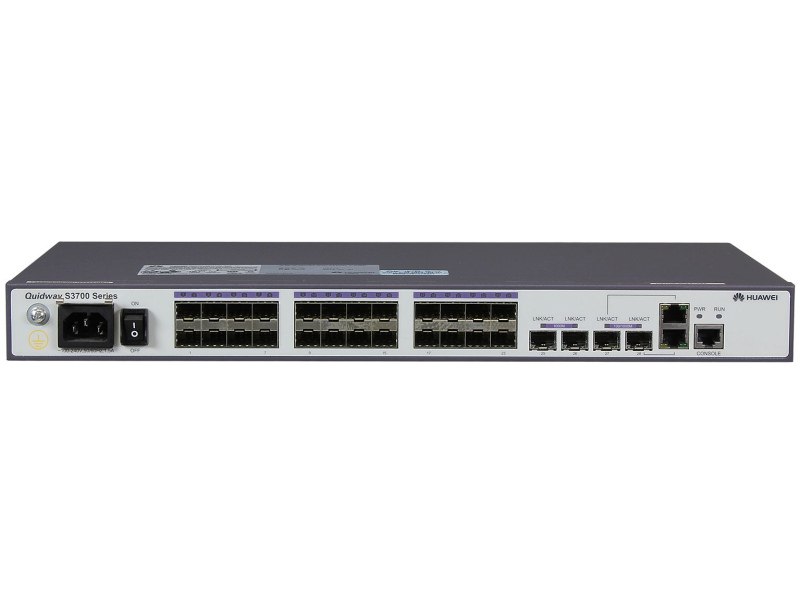

S3700-28TP-EI-24S-AC:
  • 24-Port 100MbE (SFP);
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)
S3700-52P-EI-AC:
  • 48-Port 100MbE (RJ45);
  • 2-Port 100/1000MbE (SFP);
  • 2-Port 1GbE (SFP);
  • 1-Port console (RJ45)
S3700-52P-PWR-EI:
  • 48-Port 100MbE (RJ45) PoE;
  • 2-Port 100/1000MbE (SFP);
  • 2-Port 1GbE (SFP);
  • 1-Port console (RJ45)
S3700-52P-EI-48S-AC:
  • 48-Port 100MbE (SFP);
  • 2-Port 100/1000MbE (SFP);
  • 2-Port 1GbE (SFP);
  • 1-Port console (RJ45)
S3700-52P-EI-24S-AC:
  • 24-Port 10/100MbE (RJ45);
  • 24-Port 100MbE (SFP);
  • 2-Port 100/1000MbE (SFP);
  • 2-Port 1GbE (SFP);
  • 1-Port console (RJ45)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
S3700-28TP-EI-AC/DC:
S3700-28TP-EI-MC-AC:
S3700-28TP-EI-24S-AC:
S3700-52P-EI-AC:
43.6 (1U) х 442 х 220
(1.72 (1U) x 17.4 x 8.66 in)
S3700-28TP-PWR-EI:
S3700-52P-EI-48S-AC:
S3700-52P-EI-24S-AC:
S3700-52P-PWR-EI:
43.6 (1U) х 442 х 420
(1.72 (1U) x 17.4 x 16.53 in)
4
Maximum Weight (kg)
S3700-28TP-EI-AC/DC:
S3700-28TP-EI-MC:
 2.5 (5.51 lbs)
S3700-28TP-PWR-EI: 4.0 (8.81 lbs)
S3700-28TP-EI-24S-AC: 2.6 (5.73 Ib)
S3700-52P-EI-AC: 3.0 (6.61 lbs)
S3700-52P-PWR-EI: 4.3 (9.47 lbs)
S3700-52P-EI-48S-AC:
S3700-52P-EI-24S-AC:
 4.8 (10.58 lbs)
5
Environmental Conditions
6
Relative Humidity (%)

10 to 90

7
Operating Temperature (°C)

0 to 50 (32 to 122 °F)

8
Maximum Power Consumption (W)
S3700-28TP-EI-AC/DC:
S3700-28TP-EI-MC-AC:
 20
S3700-28TP-PWR-EI: 818
S3700-28TP-EI-24S-AC: 52
S3700-52P-EI-AC: 38
S3700-52P-PWR-EI: 880
S3700-52P-EI-48S-AC: 90
S3700-52P-EI-24S-AC: 65
9
Acoustic noise (dB)
S3700-28TP-EI-AC/DC:
S3700-28TP-EI-MC-AC:
 0
S3700-28TP-PWR-EI:
S3700-52P-PWR-EI:
S3700-52P-EI-AC:
S3700-52P-EI-48S-AC:
S3700-52P-EI-24S-AC:
S3700-28TP-EI-24S-AC:
 52
10
Performance
11
Switching Bandwidth (Gbit/s)

64

12
Forwarding Rate (Mp/s)
S3700-28TP-EI-AC/DC:
S3700-28TP-EI-MC-AC:
S3700-28TP-PWR-EI:
S3700-28TP-EI-24S-AC:
 9.6
S3700-52P-EI-AC:
S3700-52P-PWR-EI:
S3700-52P-EI-48S-AC:
S3700-52P-EI-24S-AC:
 13.2
13
MAC Address Table (entries)

16,000

14
ARP Table (entries)

2048

15
Layer 2 Features
16
VLAN

IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation

17
Layer 2 Reliability

STP/RSTP/MSTP

18
Multicast
19
IGMP snooping: v1/v2/v3
IGMP groups: 1024
Multicast VLAN (MVR): Supported
Multicast Routing: PIM-SM; PIM-SSM
20
Layer 3 Features
21
Routing Table (routes)
IPv4: 8000
IPv6: 4000
22
IP Routing

Static Routing; RIPv1/2, OPSF, IS-IS, BGP, VRRP

23
MPLS / VPN
24

Not supported

25
Security
26
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server: Supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Bandwidth Limit: Supported
Broadcast, multicast, unknown unicast suppression: Supported
27
Management
28

Telnet; SSH; Web; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP

29
Power Supply Unit (PSU)
30
AC PSU
Type:
S3700-28TP-EI-AC:
S3700-28TP-EI-MC-AC:
S3700-28TP-EI-24S-AC:
S3700-52P-EI-48S-AC:
S3700-52P-EI-AC:
S3700-52P-EI-24S-AC:
 Built-in
S3700-28TP-PWR-EI:
S3700-52P-PWR-EI:
 Removable
Quantity:
S3700-28TP-EI-AC:
S3700-28TP-EI-MC-AC:
S3700-28TP-EI-24S-AC:
S3700-52P-EI-48S-AC:
S3700-52P-EI-24S-AC:
 1
S3700-28TP-PWR-EI:
S3700-52P-EI-AC:
S3700-52P-PWR-EI:
 2
Rated voltage range: 100 to 240 VAC, 50-60 Hz
31
DC PSU
Type:
S3700-28TP-EI-DC: Built-in
S3700-28TP-PWR-EI:
S3700-52P-PWR-EI:
 Removable
Quantity:
S3700-28TP-EI-DC: 1
S3700-28TP-PWR-EI:
S3700-52P-PWR-EI:
 2
Rated voltage range: -48 to -60 VDC
32
PoE (Power over Ethernet)
33
Supported by:
S3700-28TP-PWR-EI;
S3700-52P-PWR-EI

PoE (802.3af) (15W per port):
S3700-28TP-PWR-EI: 24 ports (with 500W PSU)
S3700-52P-PWR-EI: 48 ports (with 2 x 500W PSU)

PoE+ (802.3аt) (30W per port):
S3700-28TP-PWR-EI:
S3700-52P-PWR-EI:
 24 ports (with 2 x 500W PSU)

PoE++ (802.3bt) (60W per port): Not supported

PoE++ (802.3bt) (90W per port) Not supported
34
Compatible Expansion Cards
35

Not supported

36

S3700-EI Datasheet (en)
