Switches Huawei S5700-LI Series

End-of-Sale

Please see "Similar Products" below.

Description Specifications Additional materials

Access Layer Manageable Switches with 1G access ports for campus networks

General All

Interfaces

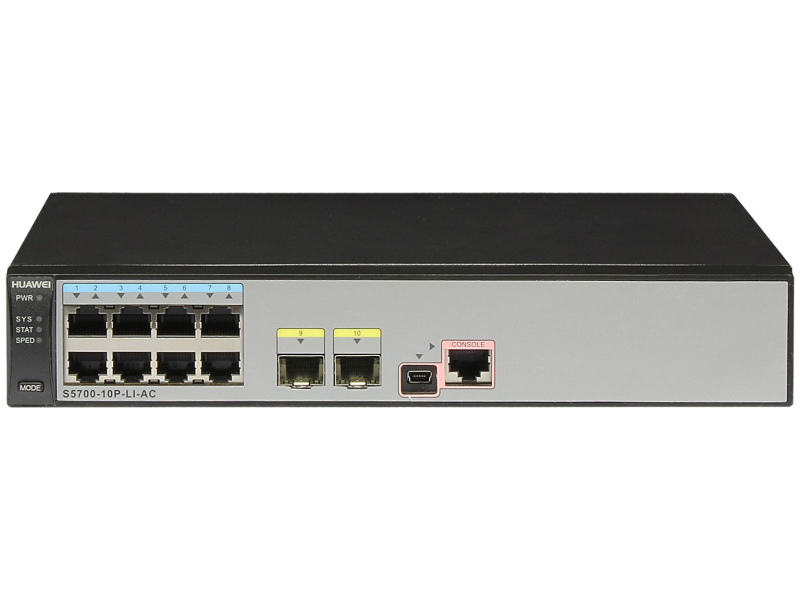

S5700-10P-LI-AC:	8-Port 1GbE (RJ45); 2-Port 1GbE (SFP); 1-Port console (RJ45/miniUSB)
S5700-28P-LI-AC/DC:	24-Port 1GbE (RJ45); 4-Port 1GbE (SFP); 1-Port console (RJ45/miniUSB)
S5700-28TP-LI-AC:	24-Port 1GbE (RJ45); 2-Port combo 1GbE (RJ45/SFP); 2-Port 1GbE (SFP); 1-Port console (RJ45/miniUSB)
S5700-52P-LI-AC/DC:	48-Port 1GbE (RJ45); 4-Port 1GbE (SFP); 1-Port console (RJ45/miniUSB)
S5700-10P-PWR-LI-AC:	8 портов 1GbE (RJ45) PoE; 2 порта 1GbE (SFP); 1 консольный порт (RJ45/miniUSB)
S5700-28P-PWR-LI-AC:	24-Port 1GbE (RJ45) PoE; 4-Port 1GbE (SFP); 1-Port console (RJ45/miniUSB)
S5700-28TP-PWR-LI-AC:	24-Port 1GbE (RJ45) PoE; 2-Port combo 1GbE (RJ45/SFP); 2-Port 1GbE (SFP); 1-Port console (RJ45/miniUSB)
S5701-28TP-PWR-LI-AC:	12-Port 1GbE (RJ45) PoE; 12 портов 1GbE (RJ45); 2 комбо-порта 1GbE (RJ45/SFP); 2 порта 1GbE (SFP); 1 консольный порт (RJ45/miniUSB)
S5700-52P-PWR-LI-AC:	48-Port 1GbE (RJ45) PoE; 4-Port 1GbE (SFP); 1-Port console (RJ45/miniUSB)

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

S5700-10P-LI-AC:	43.6 (1U) х 250 х 180 (1.72 (1U) x 9.84 x 7.09)
S5700-28P-LI-AC/DC: S5700-28TP-LI-AC:	43.6 (1U) х 442 х 220 (1.72 (1U) x 17.4 x 8.66)
S5700-52P-LI-AC/DC: S5700-28P-PWR-LI-AC: S5700-28TP-PWR-LI-AC: S5701-28TP-PWR-LI-AC: S5700-52P-PWR-LI-AC:	43.6 (1U) х 442 х 310 (1.72 (1U) x 17.4 x 12.2)
S5700-10P-PWR-LI-AC:	43.6 (1U) x 320 х 220 (1.72 (1U) x 12.6 x 8.66)

Maximum Weight (kg)/(lbs)

S5700-10P-LI-AC:	1.3 (2.87)
S5700-28P-LI-AC/DC: S5700-28TP-LI-AC:	2.8 (6.17)
S5700-52P-LI-AC/DC:	3.5 (7.72)
S5700-10P-PWR-LI-AC:	2.3 (5.07)
S5700-28P-PWR-LI-AC: S5700-28TP-PWR-LI-AC: S5701-28TP-PWR-LI-AC:	4.0 (8.9)
S5700-52P-PWR-LI-AC:	4.2 (9.26)

Environmental Conditions

Relative Humidity (%)

10 to 90

Operating Temperature (°C)/(°F)

-5 to +50 (23 to 122)

Maximum Power Consumption (W)

S5700-10P-LI-AC:	11.5
S5700-28P-LI-AC/DC:	24.0
S5700-28TP-LI-AC:	26.4
S5700-52P-LI-AC/DC:	48.4
S5700-10P-PWR-LI-AC:	142.4
S5700-28P-PWR-LI-AC:	436.5
S5700-28TP-PWR-LI-AC:	469.7
S5701-28TP-PWR-LI-AC:	238.7
S5700-52P-PWR-LI-AC:	464.5

Acoustic noise (dB)

S5700-10P-LI-AC: S5700-28P-LI-AC/DC: S5700-10P-PWR-LI-AC:	0
S5700-28TP-LI-AC:	39.5
S5700-28P-LI-BAT:	43.2
S5700-28P-LI-24S-BAT:	46.1
S5700-52P-LI-AC/DC:	43.8
S5700-28P-PWR-LI-AC: S5700-52P-PWR-LI-AC:	49.2
S5700-28TP-PWR-LI-AC:	48.0
S5701-28P-PWR-LI-AC:	45.0

Performance

Switching Bandwidth (Gbit/s)

256

Forwarding Rate (Mp/s)

S5700-10P-LI-AC: S5700-10P-PWR-LI-AC:	15
S5700-28P-LI-AC/DC: S5700-28TP-LI-AC/DC: S5700-28P-PWR-LI-AC: S5700-28TP-PWR-LI-AC: S5701-28TP-PWR-LI-AC:	42
S5700-52P-LI-AC/DC: S5700-52P-PWR-LI-AC:	78

MAC Address Table (entries)

16,000

ARP Table (entries)

256

Layer 2 Features

VLAN

IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; VBST (compatible with PVST+); SEP; RRPP; ERPS (G.8032)

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	1024
Multicast VLAN (MVR):	Supported
Multicast Routing:	Not supported

Layer 3 features

Routing Table (routes)

IPv4:	32,000
IPv6:	16,000

IP Routing

Static Routing

MPLS / VPN

Not supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; Web; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Removable
Quantity:	1
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Type:	Removable
Quantity:	1
Rated voltage range:	-48 to -60 VDC

PoE (Power over Ethernet)

Supported by:	S5700-10P-PWR-LI-AC; S5700-28P-PWR-LI; S5700-28TP-PWR-LI; S5701-28TP-PWR-LI; S5700-52P-PWR-LI

PoE (802.3af) (15W per port):
S5700-10P-PWR-LI-AC:	8 ports

Without RPS
S5700-28P-PWR-LI: S5700-28TP-PWR-LI: S5700-52P-PWR-LI:	24 ports
S5701-28TP-PWR-LI:	12 ports
With RPS
S5700-28P-PWR-LI S5700-28TP-PWR-LI:	24 ports
S5701-28TP-PWR-LI:	12 ports
S5700-52P-PWR-LI	48 ports

PoE+ (802.3аt) (30W per port):
S5700-10P-PWR-LI-AC	4 ports

Without RPS
S5700-28P-PWR-LI: S5700-28TP-PWR-LI: S5700-52P-PWR-LI:	12 ports
S5701-28TP-PWR-LI:	6 ports
With RPS
S5700-28P-PWR-LI: S5700-28TP-PWR-LI:	24 ports
S5701-28TP-PWR-LI:	6 ports
S5700-52P-PWR-LI	26 ports

PoE++ (802.3bt) (60W per port):	Not supported

PoE++ (802.3bt) (90W per port)	Not supported

Compatible Expansion Cards

Not supported
