Switches Huawei S5700C-HI Series

End-of-Sale

Please see "Similar Products" below.

Description Specifications Additional materials

Huawei S5700-HI Series Gigabit switches with flexible fixed access ports 1GbE, 10GbE, 40GbE, for data centers and large corporate networks.

State-of-the-art hardware and the versatile Huawei VRP routing platform provide easy management, maintenance, security and data protection on the network.

Models in a compact 1U/2U form factor with fixed ports: 24 x 1GbE ports, 24 x 100/1000MbE (SFP) ports, or 48 x 1GbE ports with PoE support, and 8 x 10GbE (SFP +) ports.

General All

Interfaces

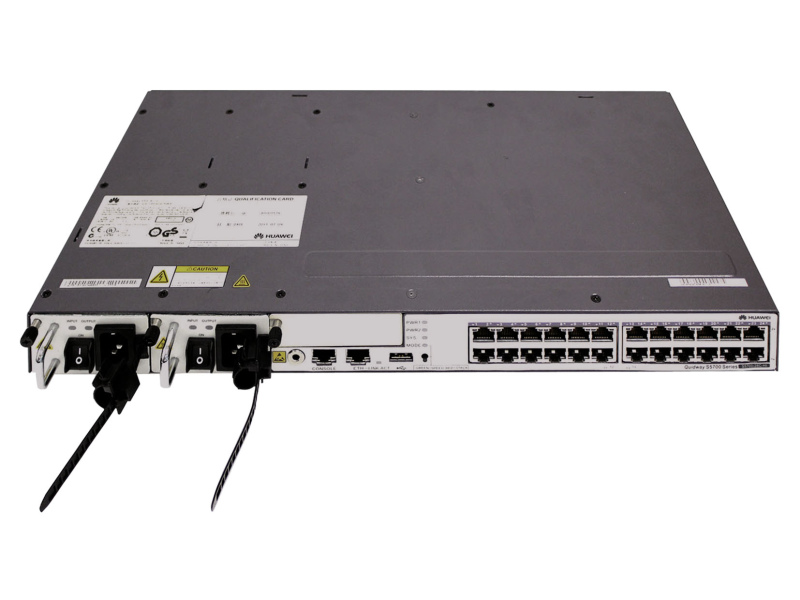

S5700-28C-HI:	24-Port 1GbE (RJ45); 1 Expansion slot; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB; 1-Port monitoring (RJ45)
S5700-28C-HI-24S:	24-Port 100/1000MbE (SFP); 1 Expansion slot; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB; 1-Port monitoring (RJ45)
S5710-108C-PWR-HI:	48-Port 1GbE (RJ45) PoE; 8-Port 10GbE (SFP+); 3 Front expansion slots; 1 Rear expansion slot 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)

S5700-28C-HI: S5700-28C-HI-24S:	43.6 (1U) х 442 х 220 (1.72 (1U) x 17.4 x 8.66 in)
S5710-108C-PWR-HI:	87.2 (2U) x 442 x 470 (3.43 (2U) x 17.4 x 18.50 in)

Maximum Weight (kg)

S5700-28C-HI: S5700-28C-HI-24S:	4.1 (9.0 lbs)
S5710-108C-PWR-HI:	10.8 (23.8 lbs)

Environmental Conditions

Relative Humidity (%)

10 to 90

Operating Temperature (°C)

-5 to +55 (23 to 131 °F)

Maximum Power Consumption (W)

S5700-28C-HI:	76
S5700-28C-HI-24S:	80
S5710-108C-PWR-HI:	2300

Acoustic noise (dB)

S5700-28C-HI:	40.0
S5700-28C-HI-24S:	60.0
S5710-108C-PWR-HI:	63.7

Performance

Switching Bandwidth (Gbit/s)

S5700-28C-HI: S5700-28C-HI-24S:	256
S5710-108C-PWR-HI:	1024

Forwarding Rate (Mp/s)

S5700-28C-HI: S5700-28C-HI-24S:	96
S5710-108C-PWR-HI:	504

MAC Address Table (entries)

S5700-28C-HI: S5700-28C-HI-24S:	32,000
S5710-108C-PWR-HI:	456,000

ARP Table (entries)

16,000

Layer 2 Features

VLAN

IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; VBST; SEP; RRPP; ERPS (G.8032)

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	2048
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-DM; PIM-SM; PIM-SSM

Layer 3 Features

Routing Table (routes)

IPv4:	12,000
IPv6:	6000

IP Routing

Static Routing, RIPv1/2, OSPFv2, IS-IS, BGP, VRRP

MPLS / VPN

MPLS LDP, L2VPN, VPLS

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; Web; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Type:	Removable
Quantity:
S5700-28C-HI: S5700-28C-HI-24S:	2
S5710-108C-PWR-HI:	Not supported
Rated voltage range:	-48 to -60 VDC

PoE (Power over Ethernet)

Supported by:	S5710-108C-PWR-HI
PoE (802.3af) (15W per port):	48 ports
PoE+ (802.3аt) (30W per port):	48 ports (with 2 x 1150W PSU)
PoE++ (802.3bt) (60W per port):	Not supported
PoE++ (802.3bt) (90W per port):	Not supported

Compatible Expansion Cards

Model Number	Description
Supported by:	S5700-28C-HI; S5700-28C-HI-24S
ES5D00X2SA00:	2-Port 1/10GbE (SFP/SFP+)
ES5D00X4SA00:	4-Port 1/10GbE (SFP/SFP+)
ES5D00G4SC00:	4-Port 1GbE (SFP)

Supported by:	S5710-108C-PWR-HI
ES5D21G16S00:	16-Port 1GbE (SFP) (front card)
ES5D21G16T00:	16-Port 1GbE (RJ45) (front card)
ES5D21X04S00:	4-Port 10GbE (SFP+) (rear card)
ES5D21L04Q00:	4-Port 40GbE (QSFP+) (rear card)
