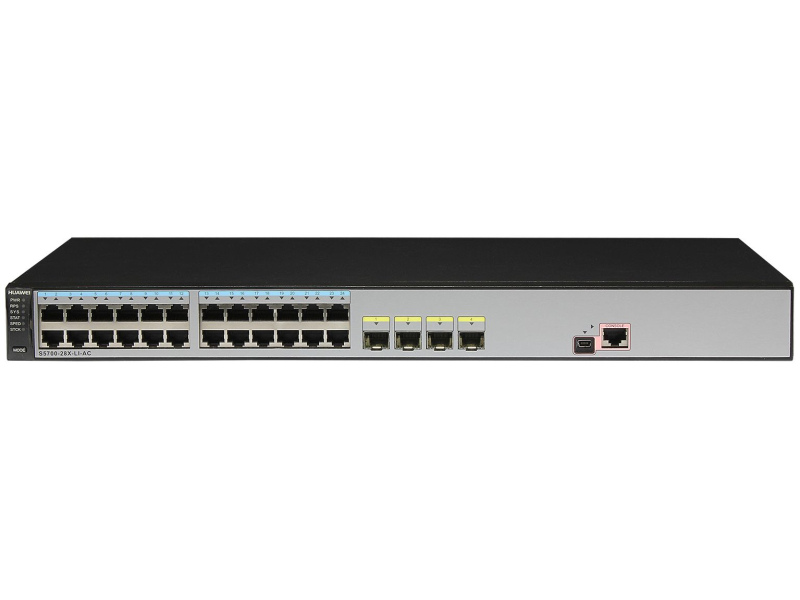

Switches Huawei S5700X-LI Series

End-of-Sale

Please see "Similar Products" below.

Description Specifications Additional materials

Access Layer Manageable Switches with 1G access ports for campus networks.

General All

Interfaces

S5700-28X-LI-AC/DC:	24-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 1-Port console (RJ45/miniUSB); 1-Port RPS
S5700-52X-LI-AC/DC:	48-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 1-Port console (RJ45/miniUSB); 1-Port RPS0
S5700-28X-LI-24S-AC/DC:	20-Port 100/1000MbE (SFP); 4-Port combo 1GbE (RJ45/SFP); 4-Port 10GbE (SFP+); 1-Port USB; 1-Port console (RJ45/miniUSB); 1-Port RPS
S5700-52X-LI-48CS-AC:	22-Port 100/1000MbE (SFP) or 44-Port 100/1000MbE (СSFP); 4-Port combo 1GbE (RJ45/SFP); 4-Port 10GbE (SFP+); 1-Port USB; 1-Port console (RJ45/miniUSB); 1-Port RPS
S5701-28X-LI-AC:	24-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 1-Port console (RJ45/miniUSB); 1-Port USB; 1-Port RPS
S5701-28X-LI-24S-AC:	20-Port 100/1000MbE (SFP); 4-Port combo 1GbE (RJ45/SFP); 4-Port 10GbE (SFP+); 1-Port USB; 1-Port console (RJ45/miniUSB); 1-Port RPS
S5700-28X-PWR-LI-AC:	24-Port 1GbE (RJ45) PoE; 4-Port 10GbE (SFP+); 1-Port console (RJ45/miniUSB); 1-Port RPS
S5700-52X-PWR-LI-AC:	48-Port 1GbE (RJ45) PoE; 4-Port 10GbE (SFP+); 1-Port console (RJ45/miniUSB); 1-Port RPS

Interfaces

Dimensions (HxWxD) (mm)

S5700-28X-LI-AC/DC: S5700-52X-LI-AC/DC: S5700-28X-LI-24S-AC/DC: S5700-52X-LI-48CS-AC: S5701-28X-LI-AC: S5701-28X-LI-24S-AC:	43.6 (1U) х 442 х 220 (1.72 (1U) x 17.4 x 8.66 in)
S5700-28X-PWR-LI-AC: S5700-52X-PWR-LI-AC:	43.6 (1U) х 442 х 310 (1.72 (1U) x 17.4 x 12.2 in)

Maximum Weight (kg)

S5700-28X-LI-AC/DC:	3.36 (7.41 lbs)
S5700-52X-LI-AC/DC:	4.42 (9.74 lbs)
S5700-28X-LI-24S-AC/DC: S5700-52X-LI-48CS-AC: S5701-28X-LI-AC: S5701-28X-LI-24S-AC:	3.5 (7.72 lbs)
S5700-28X-PWR-LI-AC:	4.66 (10.27 lbs)
S5700-52X-PWR-LI-AC:	4.78 (10.54 lbs)

Environmental Conditions

Relative Humidity (%)

10 to 90

Operating Temperature (°C)

-5 to +50 (23 to 122 °F)

Maximum Power Consumption (W)

S5700-28X-LI-AC/DC:	42
S5700-52X-LI-AC/DC:	61
S5700-28X-LI-24S-AC/DC:	60
S5700-52X-LI-48CS-AC:	80
S5701-28X-LI-AC:	40
S5701-28X-LI-24S-AC:	60
S5700-28X-PWR-LI-AC:	448.8
S5700-52X-PWR-LI-AC:	479.3

Acoustic noise (dB)

S5700-28X-LI-AC/DC:	44.9
S5700-52X-LI-AC/DC:	47.9
S5700-28X-LI-24S-AC/DC:	49.6
S5700-52X-LI-48CS-AC:	67.3
S5701-28X-LI-AC:	45.8
S5701-28X-LI-24S-AC:	49.6
S5700-28X-PWR-LI-AC:	49.5
S5700-52X-PWR-LI-AC:	50.2

Performance

Switching Bandwidth (Gbit/s)

S5700-28X-LI-AC/DC: S5700-28X-LI-24S-AC/DC: S5701-28X-LI-AC: S5701-28X-LI-24S-AC: S5700-28X-PWR-LI-AC:	128
S5700-52X-LI-AC/DC: S5700-52X-LI-48CS-AC: S5700-52X-PWR-LI-AC:	256

Forwarding Rate (Mp/s)

S5700-28X-LI-AC/DC: S5700-28X-LI-24S-AC/DC: S5701-28X-LI-AC: S5701-28X-LI-24S-AC: S5700-28X-PWR-LI-AC:	96
S5700-52X-LI-AC/DC: S5700-52X-LI-48CS-AC: S5700-52X-PWR-LI-AC:	132

MAC Address Table (entries)

16,000

ARP Table (entries)

256

Layer 2 Features

VLAN

IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; VBST (PVST+); SEP; RRPP; ERPS (G.8032)

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	1024
Multicast VLAN (MVR):	Supported
Multicast Routing:	Not supported

Layer 3 Features

Routing Table (routes)

IPv4:	32,000
IPv6:	16,000

IP Routing

Static Routing

MPLS / VPN

Not supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; Web; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Built-in
Quantity:	1
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Type:	Built-in
Quantity:	1
Rated voltage range:	48 to -60 VDC

PoE (Power over Ethernet)

Supported by:	S5700-28X-PWR-LI-AC; S5700-52X-PWR-LI-AC

PoE (802.3af) (15W per port):
Without RPS
S5700-28X-PWR-LI-AC: S5700-52X-PWR-LI-AC:	24 ports
With RPS
S5700-28X-PWR-LI-AC:	24 ports
S5700-52X-PWR-LI-AC:	48 ports

PoE+ (802.3аt) (30W per port):
Without RPS
S5700-28X-PWR-LI-AC: S5700-52X-PWR-LI-AC:	12 ports
With RPS
S5700-28X-PWR-LI-AC:	24 ports
S5700-52X-PWR-LI-AC:	26 ports

PoE++ (802.3bt) (60W per port):	Not supported

PoE++ (802.3bt) (90W per port):	Not supported

Compatible Expansion Cards

Not supported
