Switches Huawei S5720I-SI Series

Switches Huawei S5720I-SI Series Available to Quote:

S5720I-6X-PWH-SI-AC; S5720I-10X-PWH-SI-AC

S5720I-12X-SI-AC; S5720I-12X-PWH-SI-DC

S5720I-28X-SI-AC; S5720I-28X-PWH-SI-AC

Request a Quote

Description Specifications Additional materials

Access Layer Manageable Switches

General All

Interfaces

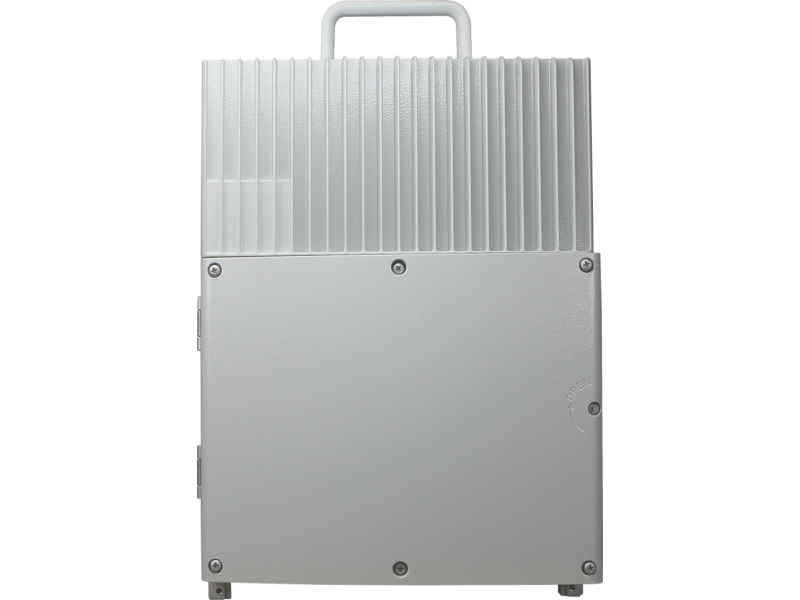

S5720I-6X-PWH-SI-AC:	4-Port 1GbE (RJ45) PoE+; 2-Port 10GbE (SFP+); 1-Port console (RJ45); 1-Port USB
S5720I-10X-PWH-SI-AC:	8-Port 1GbE (RJ45) PoE+; 2-Port 10GbE (SFP+); 1-Port console (RJ45); 1-Port USB
S5720I-12X-SI-AC:	8-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 1-Port console (RJ45); 1-Port USB
S5720I-12X-PWH-SI-DC:	8-Port 1GbE (RJ45) PoE++; 4-Port 10GbE (SFP+); 1-Port console (RJ45); 1-Port USB
S5720I-28X-SI-AC:	24-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 1-Port console (RJ45); 1-Port USB
S5720I-28X-PWH-SI-AC:	24-Port 1GbE (RJ45) PoE++; 4-Port 10GbE (SFP+); 1-Port console (RJ45); 1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

S5720I-6X-PWH-SI-AC:	390 x 300 x 110 (15.4 x 11.8 x 4.3)
S5720I-10X-PWH-SI-AC:	390 x 300 x 100 (15.4 x 11.8 x 3.9)
S5720I-12X-SI-AC: S5720I-12X-PWH-SI-DC:	43.6 (1U) x 250.0 x 180.0 (1.72 (1U) x 9.84 x 7.09)
S5720I-28X-SI-AC:	43.6 (1U) x 442.0 x 220.0 (1.72 (1U) x 17.4 x 8.7)
S5720I-28X-PWH-SI-AC:	43.6 (1U) x 442.0 x 310.0 (1.72 (1U) x 17.4 x 12.2)

Maximum Weight (kg)/(lbs)

S5720I-6X-PWH-SI-AC:	13.1 (28.88)
S5720I-10X-PWH-SI-AC:	12.8 (28.22)
S5720I-12X-SI-AC:	2.65 (5.84)
S5720I-12X-PWH-SI-DC:	2.5 (5.51)
S5720I-28X-SI-AC:	4.5 (9.92)
S5720I-28X-PWH-SI-AC:	6.7 (14.77)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)/(°F)

-40 to +65 (-40 to +149)

Maximum Power Consumption (W)

S5720I-6X-PWH-SI-AC:	188
S5720I-10X-PWH-SI-AC:	263
S5720I-12X-SI-AC:	17
S5720I-12X-PWH-SI-DC:	288.4
S5720I-28X-SI-AC:	29.3
S5720I-28X-PWH-SI-AC:	905

Acoustic noise (dB)

S5720I-6X-PWH-SI-AC: S5720I-10X-PWH-SI-AC: S5720I-12X-SI-AC: S5720I-12X-PWH-SI-DC:	0
S5720I-28X-SI-AC:	45
S5720I-28X-PWH-SI-AC:	47

Performance

Switching Bandwidth (Gbit/s)

S5720I-6X-PWH-SI-AC: S5720I-10X-PWH-SI-AC:	168
S5720I-12X-SI-AC: S5720I-12X-PWH-SI-DC: S5720I-28X-SI-AC: S5720I-28X-PWH-SI-AC:	336

Forwarding Rate (Mp/s)

S5720I-6X-PWH-SI-AC:	35.7
S5720I-10X-PWH-SI-AC:	42
S5720I-12X-SI-AC: S5720I-12X-PWH-SI-DC:	72
S5720I-28X-SI-AC: S5720I-28X-PWH-SI-AC:	96

MAC Address Table (entries)

16,000

ARP Table (entries)

2048

Layer 2 Features

VLAN

IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; RRPP; SEP; ERPS (G.8032)

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	1024
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-DM; PIM-SM; PIM-SSM

Layer 3 features

Routing Table (routes)

IPv4:	8000
IPv6:	2000

IP Routing

Static Routing; RIP; OSPF; IS-IS; BGP

MPLS / VPN

Not supported

VXLAN

Not supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; Web; LLDP; sFlow; SNMP v1/v2/v3; RMON; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Built-in
Quantity:
S5720I-6X-PWH-SI-AC: S5720I-10X-PWH-SI-AC: S5720I-12X-SI-AC:	1
S5720I-28X-SI-AC: S5720I-28X-PWH-SI-AC:	2
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Type:	Built-in
Quantity:
S5720I-12X-PWH-SI-DC:	1
Rated voltage range:	-46 to -57 VDC

PoE (Power over Ethernet)

Supported by:	S5720I-6X-PWH-SI-AC; S5720I-10X-PWH-SI-AC; S5720I-12X-PWH-SI-DC; S5720I-28X-PWH-SI-AC
PoE (802.3af) (15W per port):
S5720I-6X-PWH-SI-AC:	4 ports
S5720I-10X-PWH-SI-AC:	8 ports
S5720I-12X-PWH-SI-DC:	8 ports
S5720I-28X-PWH-SI-AC:	24 ports

PoE+ (802.3аt) (30W per port):
S5720I-6X-PWH-SI-AC:	4 ports
S5720I-10X-PWH-SI-AC:	6 ports
S5720I-12X-PWH-SI-DC:	8 ports (with PAC-260WA-E PSU)
S5720I-28X-PWH-SI-AC:	12 ports

PoE++ (802.3bt) (60W per port):
S5720I-6X-PWH-SI-AC:	2 ports
S5720I-10X-PWH-SI-AC:	3 ports
S5720I-12X-PWH-SI-DC:	4 ports (with PAC-260WA-E PSU)
S5720I-28X-PWH-SI-AC:	6 ports

PoE++ (802.3bt) (90W per port):	Not supported

Compatible Expansion Cards

Not supported
