Switches Huawei S5730-HI Series

Switches Huawei S5730-HI Series Available to Quote:

S5730-36C-HI; S5730-36C-PWH-HI;

S5730-44C-HI; S5730-44C-PWH-HI;

S5730-60C-HI; S5730-60C-PWH-HI;

S5730-68C-HI; S5730-68C-PWH-HI;

S5730-36C-HI-24S; S5730-44C-HI-24S;

S5730-60C-HI-48S; S5730-68C-HI-48S

Request a Quote

Description Specifications Additional materials

Huawei S5730-HI series switches with fixed 1GbE, 10GbE ports and 1 expansion slot.

General All

Interfaces

S5730-36C-HI:	24-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 1 SSD-card slot; 1 Expansion slot; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S5730-36C-PWH-HI:	24-Port 1GbE (RJ45) PoE++; 4-Port 10GbE (SFP+); 1 SSD-card slot 1 Expansion slot; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S5730-44C-HI:	24-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 2 Expansion slots; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S5730-44C-PWH-HI:	24-Port 1GbE (RJ45) PoE++; 4-Port 10GbE (SFP+); 2 Expansion slots; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S5730-60C-HI:	48-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 1 SSD-card slot; 1 Expansion slot; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S5730-60C-PWH-HI:	48-Port 1GbE (RJ45) PoE++; 4-Port 10GbE (SFP+); 1 SSD-card slot; 1 Expansion slot; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S5730-68C-HI:	48-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 2 Expansion slots; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S5730-68C-PWH-HI:	48-Port 1GbE (RJ45) PoE++; 4-Port 10GbE (SFP+); 2 Expansion slots; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB

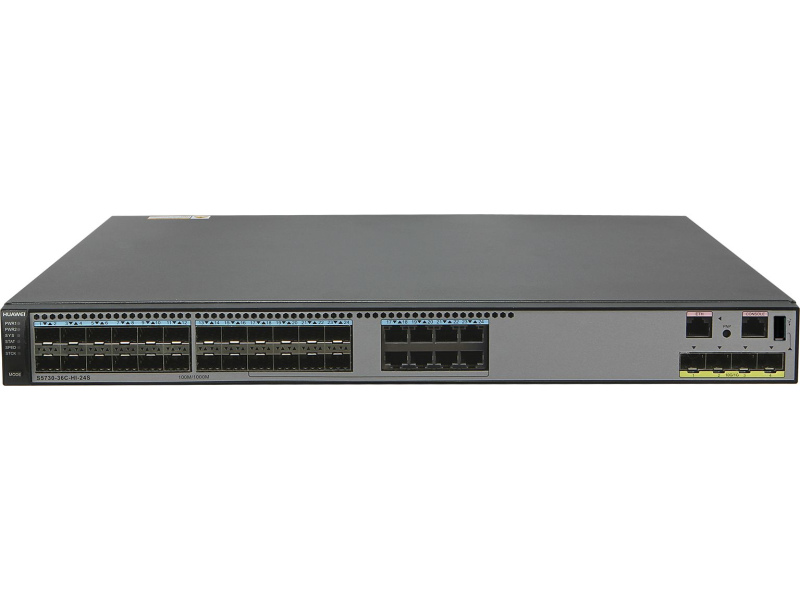

S5730-36C-HI-24S:	16-Port 1GbE (SFP); 8-Port combo 1GbE (RJ45/SFP); 4-Port 10GbE (SFP+); 1 SSD-card slot; 1 Expansion slot; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S5730-44C-HI-24S:	16-Port 1GbE (SFP); 8-Port combo 1GbE (RJ45); 4-Port 10GbE (SFP+); 2 Expansion slots; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S5730-60C-HI-48S:	48-Port 1GbE (SFP); 4-Port 10GbE (SFP+); 1 SSD-card slot; 1 Expansion slot; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S5730-68C-HI-48S:	48-Port 1GbE (SFP); 4-Port 10GbE (SFP+); 2 Expansion slots; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

44.4 (1U) x 442 x 420

(1.74 (1U) x 17.4 x 16.53)

Maximum Weight (kg)/(lbs)

8.27 (18.23)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)/(°F)

0 to 45 (32 to 113)

Maximum Power Consumption (W)

S5730-36C-HI:	74
S5730-36C-PWH-HI:	1595
S5730-44C-HI:	76,5
S5730-44C-PWH-HI:	1596
S5730-60C-HI:	87,7
S5730-60C-PWH-HI:	1610
S5730-68C-HI:	88,05
S5730-68C-PWH-HI:	1608
S5730-36C-HI-24S:	79
S5730-44C-HI-24S:	78
S5730-60C-HI-48S:	136
S5730-68C-HI-48S:	124

Acoustic noise (dB)

Performance

Switching Bandwidth (Gbit/s)

758

Forwarding Rate (Mp/s)

250

MAC Address Table (entries)

256,000

ARP Table (entries)

256,000

Layer 2 Features

VLAN

IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; VBST; SEP; RRPP; ERPS (G.8032)

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	4096
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-DM; PIM-SM

Layer 3 Features

Routing Table (routes)

IPv4:	512 000
IPv6:	64 000

IP Routing

Static Routing; RIPv1/2; OSPF; IS-IS; BGP

MPLS / VPN

MPLS, LDP, L2VPN, MPLS-TE, L3VPN, VPLS, GRE

VXLAN

Layer 2 Gateway, Layer 3 Gateway, BGP-EVPN

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; Web; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	-48 to -60 VDC

PoE (Power over Ethernet)

Supported by:	S5730-36C-PWH-HI; S5730-44C-PWH-HI; S5730-60C-PWH-HI; S5730-68C-PWH-HI

PoE (802.3af) (15W per port):
S5730-36C-PWH-HI: S5730-44C-PWH-HI:	24 ports
S5730-60C-PWH-HI: S5730-68C-PWH-HI:	48 ports (with 2 x 500W PSU)

PoE+ (802.3аt) (30W per port):
S5730-36C-PWH-HI: S5730-44C-PWH-HI:	24 ports (with 2 x 500W PSU)
S5730-60C-PWH-HI: S5730-68C-PWH-HI:	48 ports (with 2 x 500W PSU)

PoE++ (802.3bt) (60W per port):
S5730-36C-PWH-HI: S5730-44C-PWH-HI:	24 ports (with 2 x 1000W PSU)
S5730-60C-PWH-HI: S5730-68C-PWH-HI:	24 ports (with 2 x 1000W PSU)

PoE++ (802.3bt) (90W per port):	Not supported

Compatible Expansion Cards

Model Number	Description
ES5D21X08T00:	8-Port 10GbE (RJ45)
ES5D21X08S00:	8-Port 10GbE (SFP+)
ES5D21Q02Q00:	2-Port 40GbE (QSFP+)

S5730-HI Datasheet (en)
