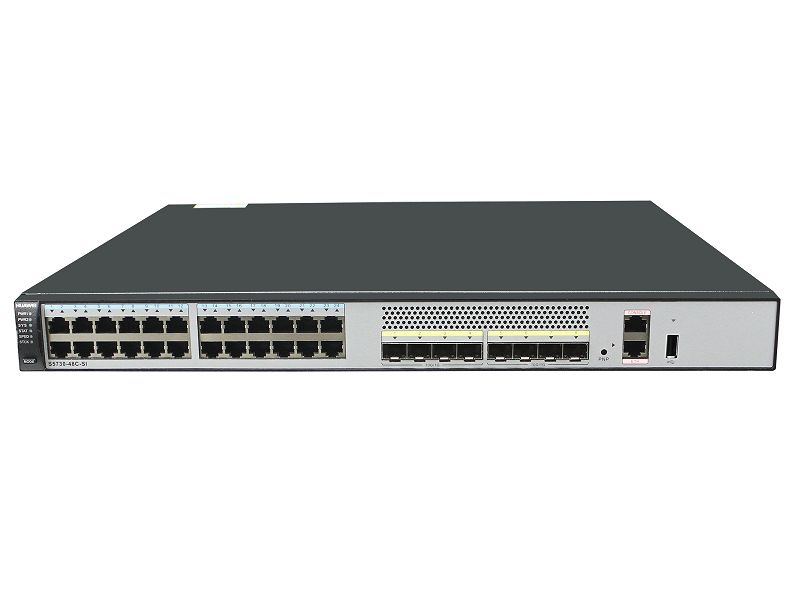

Switches Huawei S5730-SI Series

Switches Huawei S5730-SI Series Available to Quote:

S5730-48C-SI-AC; S5730-48C-PWR-SI-AC;

S5730-68C-SI-AC; S5730-68C-PWR-SI-AC

S5730-68C-PWR-SI

Request a Quote

Description Specifications Additional materials

The Gigabit S5730-SI Series switches with flexible 10GbE and 40GbE fixed ports for data centers and large campus networks.

Huawei’s Universal Routing Platform (VRP) provides high-performance L3 switching services, reliable maintenance, iStack smart stack and flexible network.

The S5730-SI models support the PoE / PoE + standard, which provides power up to 30 watts per port to support network devices such as telephones, camcorders, IEEE 802.11n wireless devices, and LAN access points (WLANs).

General All

Interfaces

S5730-48C-SI-AC:	24-Port 1GbE (RJ45); 8-Port 10GbE (SFP+); 1 Expansion slot; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S5730-48C-PWR-SI-AC:	24-Port 1GbE (RJ45) PoE; 8-Port 10GbE (SFP+); 1 Expansion slot; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S5730-68C-SI-AC:	48-Port 1GbE (RJ45); 4-Port 10GbE (SFP+); 1 Expansion slot; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S5730-68C-PWR-SI-AC:	48-Port 1GbE (RJ45) PoE; 4-Port 10GbE (SFP+); 1 Expansion slot; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S5730-68C-PWR-SI:	48-Port 1GbE (RJ45) PoE; 4-Port 10GbE (SFP+); 1 Expansion slot; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)

S5730-48C-SI-AC: S5730-48C-PWR-SI-AC: S5730-68C-SI-AC: S5730-68C-PWR-SI-AC:	44.4 (1U) x 442 x 420 (1.74 (1U) x 17.40 x 16.53 in)
S5730-68C-PWR-SI:	44.4 (1U) x 442 x 507 (1.74 (1U) x 17.40 x 19.96 in)

Maximum Weight (kg)

S5730-48C-SI-AC:	8.27
S5730-48C-PWR-SI-AC:	8.7
S5730-68C-SI-AC:	8.47
S5730-68C-PWR-SI-AC:	8.8
S5730-68C-PWR-SI:	8.0

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)

0 to 45 (32 to 113 °F)

Maximum Power Consumption (W)

S5730-48C-SI-AC:	62.4
S5730-48C-PWR-SI-AC:	967.0
S5730-68C-SI-AC:	65.4
S5730-68C-PWR-SI-AC:	925.0
S5730-68C-PWR-SI:	1733.0

Acoustic noise (dB)

Performance

Switching Bandwidth (Gbit/s)

680

Forwarding Rate (Mp/s)

240

MAC Address Table (entries)

32,000

ARP Table (entries)

2048

Layer 2 Features

VLAN

IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; VBST; SEP; RRPP; ERPS (G.8032)

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	1536
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-DM; PIM-SM; PIM-SSM

Layer 3 features

Routing Table (routes)

IPv4:	8000
IPv6:	4000

IP Routing

Static Routing; RIP; OSPF; IS-IS; BGP

MPLS / VPN

Not supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; Web; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	-36 to -72 VDC

PoE (Power over Ethernet)

Supported by:	S5730-48C-PWR-SI-AC; S5730-68C-PWR-SI-AC; S5730-68C-PWR-SI

PoE (802.3af) (15W per port):
S5730-48C-PWR-SI-AC:	24 ports
S5730-68C-PWR-SI-AC:	48 ports (with 2 x 500W PSU)
S5730-68C-PWR-SI:	48 ports (with 2 x 500W PSU)

PoE+ (802.3аt) (30W per port):
S5730-48C-PWR-SI-AC:	24 ports (with 2 x 500W PSU)
S5730-68C-PWR-SI-AC:	24 ports (with 2 x 500W PSU)
S5730-68C-PWR-SI:	48 ports (with 2 x 1150W PSU)

PoE++ (802.3bt) (60W per port):	Not supported

PoE++ (802.3bt) (90W per port):	Not supported

Compatible expansion cards

Model number	Description
ES5D21Q04Q01:	4-Port 40GbE (QSFP+)
