Switches Huawei S5735-L Series
Switches Huawei S5735-L Series Available to Quote:

S5735-L12T4S-A; S5735-L12P4S-A;

S5735-L24T4S-A; S5735-L24P4S-A;

S5735-L24T4X-A; S5735-L24P4X-A;

S5735-L32ST4X-A; S5735-L48T4S-A;

S5735-L48T4X-A; S5735-L48P4X-A

 Request a Quote
Description Specifications Additional materials

Huawei S5735-L series switches with fixed 1GbE ports.

General All
Interfaces
1
S5735-L12T4S-A:
  • 12-Port 1GbE (RJ45);
  • 4-Port 1GbE (SFP);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1Port USB
S5735-L12P4S-A:
  • 12-Port 1GbE (RJ45) PoE+;
  • 4-Port 1GbE (SFP);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB
S5735-L24T4S-A:
  • 24-Port 1GbE (RJ45);
  • 4-Port 1GbE (SFP);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB
S5735-L24P4S-A:
  • 24-Port 1GbE (RJ45) PoE+;
  • 4-Port 1GbE (SFP);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1 порт USB
S5735-L24T4X-A:
  • 24-Port 1GbE (RJ45);
  • 4-Port 10GbE (SFP+);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB
S5735-L24P4X-A:
  • 24-Port 1GbE (RJ45) PoE+;
  • 4-Port 10GbE (SFP+);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB
S5735-L48T4S-A:
  • 48-Port 1GbE (RJ45);
  • 4-Port 1GbE (SFP);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB
S5735-L48T4X-A:

  • 48-Port 1GbE (RJ45);
  • 4-Port 10GbE (SFP+);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB
S5735-L48P4X-A:
  • 48-Port 1GbE (RJ45) PoE+;
  • 4-Port 10GbE (SFP+);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB
S5735-L32ST4X-A:
  • 24-Port 1GbE (SFP);
  • 8-Port 1GbE (RJ45);
  • 4-Port 10GbE (SFP+);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB



2
Physical Parameters
3
Dimensions (HxWxD) (mm)/(in)

44.4 (1U) x 442 x 220

(1.72 (1U) x 17.4 x 8.66)

4
Maximum Weight (kg)/(lbs)
S5735-L12T4S-A:
 3.83 (8.44)
S5735-L12P4S-A:
 4.24 (9.34)
S5735-L24T4S-A:
 4.08 (8.99)
S5735-L24P4S-A:
S5735-L24P4X-A:
S5735-L32ST4X-A:
 4.31 (9.50)
S5735-L24T4X-A:
 4.0 (8.81)
S5735-L48T4S-A:
S5735-L48T4X-A:
 4.42 (9.74)
S5735-L48P4X-A:
 8.7 (19.18)
5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)/(°F)

-5 to 45 (23 to 113)

8
Maximum Power Consumption (W)
S5735-L12T4S-A:
 29
S5735-L12P4S-A:
 441
S5735-L24T4S-A:
 34
S5735-L24P4S-A:
 451
S5735-L24T4X-A:
 43
S5735-L24P4X-A:
 458
S5735-L32ST4X-A:
 65
S5735-L48T4S-A:
 53
S5735-L48T4X-A:
 54
S5735-L48P4X-A:
 914
9
Acoustic noise (dB)
S5735-L12T4S-A:
S5735-L24T4S-A:
 0
S5735-L12P4S-A:
S5735-L24P4S-A:
S5735-L24P4X-A:
 57.7
S5735-L24T4X-A:
 50.8
S5735-L32ST4X-A:
S5735-L48T4S-A:
S5735-L48T4X-A:
 53.3
S5735-L48P4X-A:
 58.9
10
Performance
11
Switching Bandwidth (Gbit/s)
S5735-L12T4S-A:
S5735-L12P4S-A:
 32
S5735-L24T4S-A:
S5735-L24P4S-A:
 56
S5735-L24T4X-A:
S5735-L24P4X-A:
 128
S5735-L48T4S-A:
 104
S5735-L48T4X-A:
S5735-L48P4X-A:
 176
S5735-L32ST4X-A:
 144
12
Forwarding Rate (Mp/s)
S5735-L12T4S-A:
S5735-L12P4S-A:
 24
S5735-L24T4S-A:
S5735-L24P4S-A:
 42
S5735-L24T4X-A:
S5735-L24P4X-A:
 96
S5735-L48T4S-A:
 78
S5735-L48T4X-A:
S5735-L48P4X-A:
 132
S5735-L32ST4X-A:
 108
13
MAC Address Table (entries)

16,512

14
ARP Table (entries)

4096

15
Layer 2 Features
16
VLAN

IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation

17
Layer 2 Reliability

STP/RSTP/MSTP; VBST (PVST+); SEP; RRPP; ERPS (G.8032)

18
Multicast
19
IGMP snooping: v1/v2/v3
IGMP groups: 1500
Multicast VLAN (MVR): Supported
Multicast Routing: PIM-DM; PIM-SM; MSDP
20
Layer 3 Features
21
Routing Table (routes)
IPv4: 4096
IPv6: 1024
22
IP Routing

Static Routing; RIPv1/2; OSPF

23
MPLS / VPN
24

Not supported

25
VXLAN
26

Not supported

27
Security
28
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server: Supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop Detection: Supported
IP Source Guard: Supported
Bandwidth Limitation: Supported
Broadcast, multicast, unknown unicast suppression: Supported
29
Management
30

Telnet; SSH; Web; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP

31
Power Supply Unit (PSU)
32
AC PSU
Type:

S5735-L12T4S-A:

S5735-L12P4S-A:

S5735-L24T4S-A:

S5735-L24P4S-A:

S5735-L24T4X-A:

S5735-L24P4X-A:

S5735-L48T4S-A:

S5735-L48T4X-A:

S5735-L32ST4X-A:

 Built-in

S5735-L48P4X-A:

 Removable
Quantity:  1
Rated voltage range: 100 to 240 VAC, 50-60 Hz
33
DC PSU

Not supported



34
PoE (Power over Ethernet)
Supported by:

S5735-L12P4S-A;

S5735-L24P4S-A;

S5735-L24P4X-A;

S5735-L48P4X-A;

PoE (802.3af) (15W per port):

S5735-L12P4S-A:

 12 ports

S5735-L24P4S-A:

S5735-L24P4X-A:

 24 ports

S5735-L48P4X-A:

 48 ports

PoE+ (802.3аt) (30W per port):
S5735-L12P4S-A: 12 ports

S5735-L24P4S-A:

S5735-L24P4X-A:

 12 ports

S5735-L48P4X-A:

 29 ports

PoE++ (802.3bt) (60W per port): Not supported

PoE++ (802.3bt) (90W per port): Not supported
35
Compatible Expansion Cards
36

Not supported

37

S5735-L Datasheet (en)

Similar Products
Switches Huawei S5720-LI Series Switches Huawei S5720-LI Series
Recently viewed

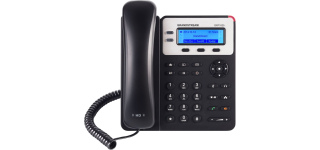

IP Phones Grandstream GXP1620/1625 IP Phones Grandstream GXP1620/1625
