Switches Huawei S6720-EI Series

End-of-Sale

Please see "Similar Products" below

Description Specifications Additional materials

Huawei S6720-EI Series Switches with flexible fixed ports of 10 Gb/s for aggregation in campus networks.

Huawei S6720-EI Series Switches supports the intelligent stack (iStack), which allows customers to combine multiple switches into a single logical device.

General All

Interfaces

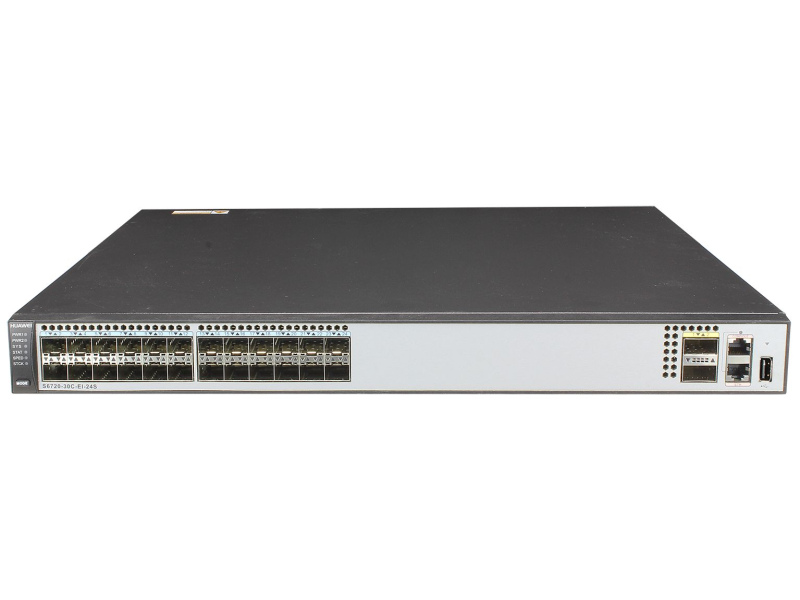

S6720-30C-EI-24S-AC/DC:	24-Port 1/10GbE (SFP/SFP+); 2-Port 40GbE (QSFP+); 1 expansion slot; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S6720-54C-EI-48S-AC/DC:	48-Port 1/10GbE (SFP/SFP+); 2-Port 40GbE (QSFP+); 1 expansion slot; 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB
S6720S-26Q-EI-24S-AC/DC:	24-Port 1/10GbE (SFP/SFP+); 2-Port 40GbE (QSFP+); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45); 1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

44.4 (1U) х 442 х 420

(1.74 (1U) x 17.4 x 16.54)

Maximum Weight (kg)/(lbs)

S6720-30C-EI-24S-AC: S6720-30C-EI-24S-DC:	9.8 (21.6)
S6720-54C-EI-48S-AC: S6720-54C-EI-48S-DC:	10.2 (22.49)
S6720S-26Q-EI-24S-AC:	5.35 (11.79)
S6720S-26Q-EI-24S-DC:	5.15 (11.35)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)/(°F)

0 to 45 (32 to 113)

Maximum Power Consumption (W)

S6720-30C-EI-24S-AC:	233.7
S6720-30C-EI-24S-DC:	212.5
S6720-54C-EI-48S-AC:	296.1
S6720-54C-EI-48S-DC:	268.6
S6720S-26Q-EI-24S-AC:	143.4
S6720S-26Q-EI-24S-DC:	126.3

Acoustic noise (dB)

S6720-30C-EI-24S-AC: S6720-30C-EI-24S-DC: S6720-54C-EI-48S-AC: S6720-54C-EI-48S-DC:	72.1
S6720S-26Q-EI-24S-AC: S6720S-26Q-EI-24S-DC:	67.1

Performance

Switching Bandwidth (Tbit/s)

2.56

Forwarding Rate (Mp/s)

S6720-30C-EI-24S-AC/DC:	720
S6720-54C-EI-48S-AC/DC:	1080
S6720S-26Q-EI-24S-AC/DC:	480

MAC Address Table (entries)

288,000 entries (enhanced-mac mode)

ARP Table (entries)

44,000 entries (enhanced-arp mode)

Layer 2 Features

VLAN

IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; VBST; SEP; RRPP; ERPS (G.8032)

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	4096
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-DM; PIM-SM; PIM-SSM

Layer 3 features

Routing Table (routes)

IPv4:	128,000 routes (enhanced-ipv4 mode)
IPv6:	80,000 routes (enhanced-ipv4 mode)

IP Routing

Static Routing; RIPv1/2; OSPFv2; IS-IS; BGP; VRRP

MPLS / VPN

Supported. MPLS, LDP, L2VPN, MPLS-TE, L3VPN, VPLS, GRE

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported
