Switches Juniper EX2200-C Series

End-of-Sale

Please see "Similar Products" below.

Description Specifications Additional materials

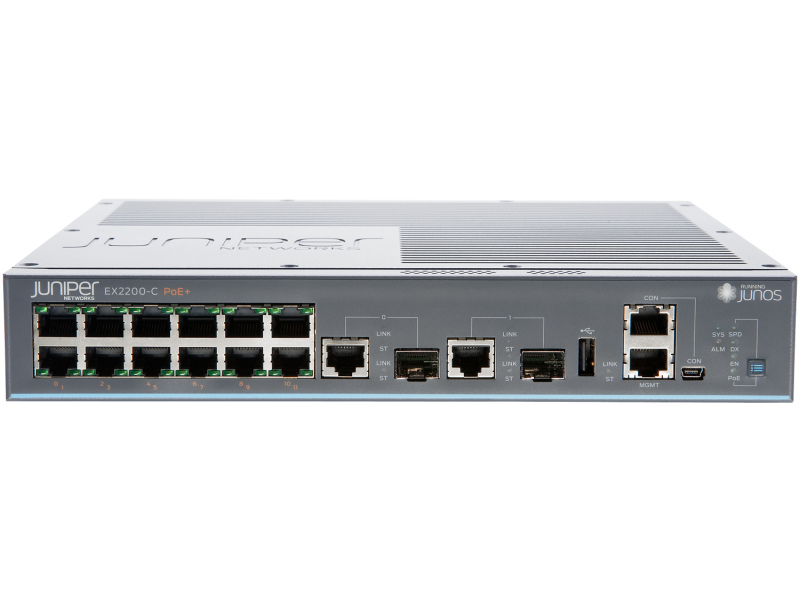

The Juniper Networks EX2200-C Series switches in a compact 1U form factor with 12 x 1GbE fixed ports

General All

Interfaces

EX2200-C-12T-2G:	12-Port 1GbE (RJ45); 2-Port combo 1GbE (RJ45)/(SFP); 1-Port out-of-band management 1GbE (RJ45); 1-Port console (RJ45)/(miniUSB); 1-Port USB
EX2200-C-12P-2G:	12-Port 1GbE (RJ45) PoE; 2-Port combo 1GbE (RJ45/SFP); 1-Port out-of-band management 1GbE (RJ45); 1-Port console (RJ45)/(miniUSB); 1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

44 (1U) x 269 х 228

(1.75 (1U) x 10.6 x 9.0)

Maximum Weight (kg)/(lbs)

EX2200-C-12T-2G:	2.09 (4.6)
EX2200-C-12P-2G:	2.9 (6.4)

Environmental Conditions

Relative Humidity (%)

10 to 85

Operating Temperature (°C)/(°F)

0 to 40 (32 to 104)

Maximum Power Consumption (W)

EX2200-C-12T-2G:	30
EX2200-C-12P-2G:	180

Acoustic noise (dB)

Performance

Switching Bandwidth (Gbit/s)

Forwarding Rate (Mp/s)

MAC Address Table (entries)

16,000

ARP Table (entries)

2000

Layer 2 Features

VLAN

EEE 802.1Q: 1024; GVRP; QinQ (with EX-EFL license); VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; ERPS (G.8032)

Multicast

IGMP snooping:	v1/v2/v3 (with EX-EFL license)
IGMP groups:	1000
Multicast VLAN (MVR):	Supported (with EX-EFL license)
Multicast Routing:	PIM-DM; PIM-SM; PIM-SSM (with EX-EFL license)

Layer 3 Features

Routing Table (routes)

IPv4:	6500
IPv6:	Not supported

IP Routing

Static Routing; RIPv1/2; OSPFv2 (with EX-EFL license); BFD (with EX-EFL license)

MPLS / VPN

Not supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Not supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; Syslog; NTP; Junos XML

Power Supply Unit (PSU)

AC PSU

Type:	Built-in
Quantity:	1
Rated voltage range:	110 to 240 VAC, 50-60 Hz

DC PSU

Not supported

PoE (Power over Ethernet)

Supported by:	EX2200-C-12P-2G
PoE (802.3af) (15W per port):	12 ports
PoE+ (802.3аt) (30W per port):	3 ports
PoE++ (802.3bt) (60W per port):	Not supported
PoE++ (802.3bt) (90W per port):	Not supported

Compatible Expansion Cards

Not supported

EX2200-C Datasheet (en)
