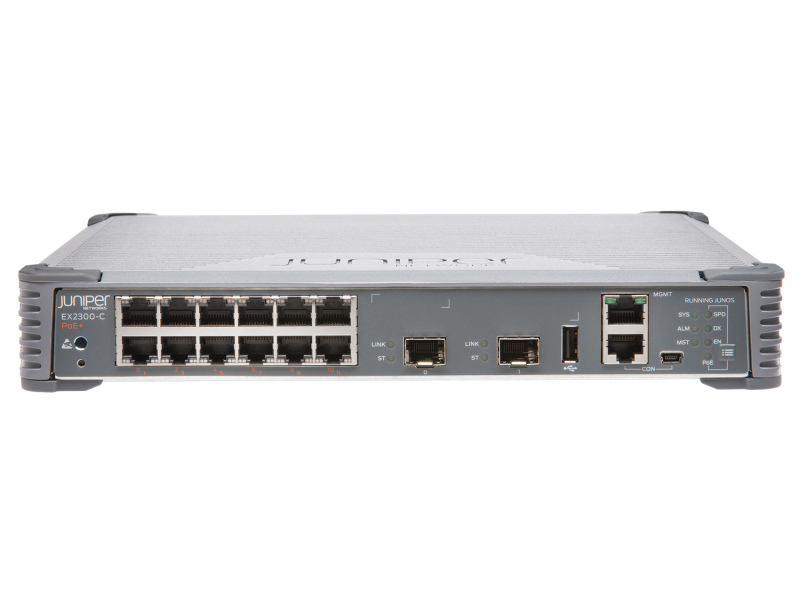

Switches Juniper EX2300-C Series

Switches Juniper EX2300-C Series Available to Quote:

EX2300-C-12T;

EX2300-C-12P

Request a Quote

Description Specifications Additional materials

The compact Juniper Networks EX2300-C series switches are good for small and medium-sized businesses.

EX2300-C models in a compact 1U form factor have fixed configration: 12-port 1GbE (RJ45), 2-port 1/10GbE (SFP/SFP+).

General All

Interfaces

EX2300-C-12T:	12-Port 1GbE (RJ45); 2-Port 1/10GbE (SFP/SFP+); 1-Port out-of-band management 1GbE (RJ45); 1-Port console (RJ45/miniUSB); 1-Port USB.
EX2300-C-12P:	12-Port 1GbE (RJ45) PoE; 2-Port 1/10GbE (SFP/SFP+); 1-Port out-of-band management 1GbE (RJ45); 1-Port console (RJ45/miniUSB); 1-Port USB.

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

44 (1U) x 279 х 239

(1.72 (1U) x 10.98 x 9.4)

Maximum Weight (kg)/(lbs)

EX2300-C-12T:	2.48 (5.45)
EX2300-C-12P:	3.17 (6.99)

Environmental Conditions

Relative Humidity (%)

10 to 85

Operating Temperature (°C)/(°F)

0 to 40 (32 to 104)

Maximum Power Consumption (W)

EX2300-C-12T:	20
EX2300-C-12P:	148

Acoustic noise (dB)

Performance

Switching Bandwidth (Gbit/s)

Forwarding Rate (Mp/s)

MAC Address Table (entries)

16,000

ARP Table (entries)

1500

Layer 2 Features

VLAN

IEEE 802.1Q: 4093; GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP

Multicast

IGMP snooping:	v1/v2/v3 (with EX-EFL license)
IGMP groups:	2048
Multicast VLAN (MVR):	Supported (with EX-EFL license)
Multicast Routing:	PIM-DM (with EX-EFL license); PIM-SM (with EX-EFL license); PIM-SSM (with EX-EFL license)

Layer 3 features

Routing Table (routes)

IPv4:	512
IPv6:	512

IP Routing

Static Routing; RIPv1/2; OSPFv2 (with EX-EFL license); BFD (with EX-EFL license)

MPLS / VPN

Not supported

VXLAN

Not supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; Syslog; NTP; Junos XML

Power Supply Unit (PSU)

AC PSU

Type:	Built-in
Quantity:	1
Rated voltage range:	110 to 240 VAC, 50-60 Hz

DC PSU

Not supported

PoE (Power over Ethernet)

Supported by:	EX2300-C-12P
PoE (802.3af) (15W per port):	8 ports
PoE+ (802.3аt) (30W per port):	4 ports
PoE++ (802.3bt) (60W per port):	Not supported
PoE++ (802.3bt) (90W per port):	Not supported

Compatible Expansion Cards

Not supported

EX2300-C Datasheet (en)
