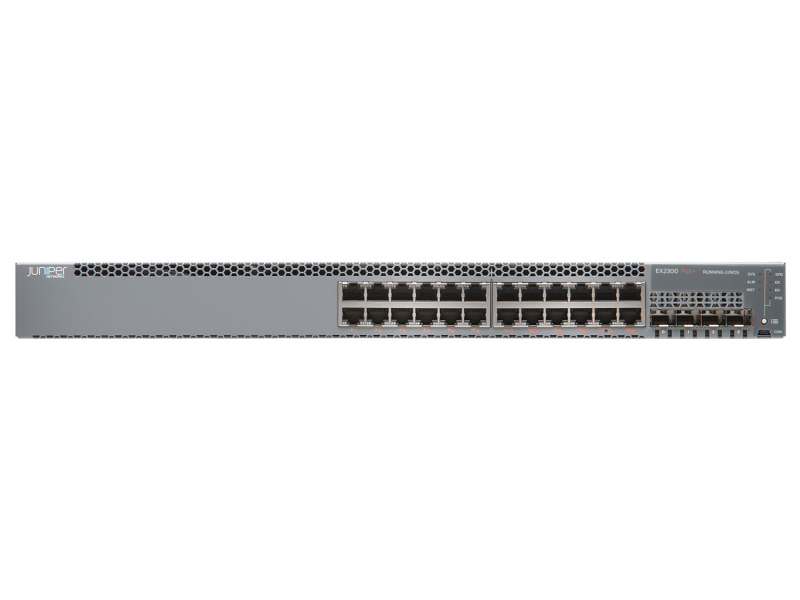

Switches Juniper EX2300 Series Available to Quote:
EX2300-24T; EX2300-24P
EX2300-24T-DC; EX2300-48T
EX2300-48P
Request a Quote
Description Specifications Additional materials

The compact Juniper Networks EX2300 series switches are good for small and medium-sized businesses.

EX2300 models in a compact 1U form factor have fixed configration: 24-port 1GbE (RJ45), 4-port 1/10GbE (SFP/SFP+), and 48-port 1GbE (RJ45).

General All
Interfaces
1

EX2300-24T:

  • 24-Port 1GbE (RJ45);
  • 4-Port 1/10GbE (SFP/SFP+);
  • 1-Port out-of-band management 1GbE (RJ45);
  • 1-Port console (RJ45);
  • 1-Port USB

EX2300-24T-DC:

  • 24-Port 1GbE (RJ45);
  • 4-Port 1/10GbE (SFP/SFP+);
  • 1-Port out-of-band management 1GbE (RJ45);
  • 1-Port console (RJ45);
  • 1-Port USB

EX2300-48T:

  • 48-Port 1GbE (RJ45);
  • 4-Port 1/10GbE (SFP/SFP+);
  • 1-Port out-of-band management 1GbE (RJ45);
  • 1-Port console (RJ45);
  • 1-Port USB
EX2300-24P:
  • 24-Port 1GbE (RJ45) PoE;
  • 4-Port 1/10GbE (SFP/SFP+);
  • 1-Port out-of-band management 1GbE (RJ45);
  • 1-Port console (RJ45);
  • 1-Port USB
EX2300-48P:
  • 48-Port 1GbE (RJ45) PoE;
  • 4-Port 1/10GbE (SFP/SFP+);
  • 1-Port out-of-band management 1GbE (RJ45);
  • 1-Port console (RJ45);
  • 1-Port USB
2
Physical Parameters
3
Dimensions (HxWxD) (mm)/(in)
EX2300-24T:
EX2300-24T-DC:
EX2300-48T:
44.5 (1U) x 446 х 259
(1.75 (1U) x 17.5 x 10.2)
EX2300-24P:
EX2300-48P:
44.5 (1U) x 446 х 309.8
(1.75 (1U) x 17.5 x 12.2)



4
Maximum Weight (kg)/(lbs)
EX2300-24T:
EX2300-24T-DC:
3.29(7.25)
EX2300-48T: 3.76 (8.29)
EX2300-24P: 4.49 (9.89)
EX2300-48P: 5.02 (11.07)
5
Environmental Conditions
6
Relative Humidity (%)

10 to 85

7
Operating Temperature (°C)/(°F)

0 to 45 (32 to 113)

8
Maximum Power Consumption (W)
EX2300-24T:
EX2300-24T-DC:
55
EX2300-48T: 70
EX2300-24P: 80
EX2300-48P: 100
9
Acoustic noise (dB)
EX2300-24T:
EX2300-24T-DC:
34.2
EX2300-48T: 34.6
EX2300-24P: 39.3
EX2300-48P: 48.5
10
Performance
11
Switching Bandwidth (Gbit/s)
EX2300-24T:
EX2300-24T-DC:
EX2300-24P:
128
EX2300-48T:
EX2300-48P:
176
12
Forwarding Rate (Mp/s)
EX2300-24T:
EX2300-24T-DC:
EX2300-24P:
95
EX2300-48T:
EX2300-48P:
130
13
MAC Address Table (entries)

16,000

14
ARP Table (entries)

1500

15
Layer 2 Features
16
VLAN

IEEE 802.1Q: 4093; GVRP; QinQ; VLAN Translation

17
Layer 2 Reliability

STP/RSTP/MSTP

18
Multicast
19
IGMP snooping: v1/v2/v3 (with EX-EFL license)
IGMP groups: 2048
Multicast VLAN (MVR): Supported (with EX-EFL license)
Multicast Routing: PIM-DM (with EX-EFL license); PIM-SM (with EX-EFL license); PIM-SSM (with EX-EFL license); MSDP (with EX-EFL license)



20
Layer 3 features
21
Routing Table (routes)
IPv4: 512
IPv6: 512
22
IP Routing

Static Routing; RIPv1/2 (with EX-EFL license); OSPFv2 (with EX-EFL license);  VRRP (with EX-EFL license)

23
MPLS / VPN
24

Not supported

25
VXLAN
26

Not supported

27
Security
28
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server: Supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Bandwidth Limit: Supported
Broadcast, multicast, unknown unicast suppression: Supported
29
Management
30

Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; RMON; Syslog; NTP

31
Power Supply Unit (PSU)
32
AC PSU
Type: Built-in
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz
33
DC PSU
Type: Built-in
Quantity: 1
Rated voltage range: -48 to -60 VDC
34
PoE (Power over Ethernet)
Supported by:
EX2300-24P;
EX2300-48P
PoE (802.3af) (15W per port):
EX2300-24P:
24 ports
EX2300-48P:
48 ports

PoE+ (802.3аt) (30W per port):
EX2300-24P:
15 ports
EX2300-48P:
24 ports

PoE++ (802.3bt) (60W per port):
Not supported


PoE++ (802.3bt) (90W per port):
Not supported
35
Compatible Expansion Cards
36

Not supported
