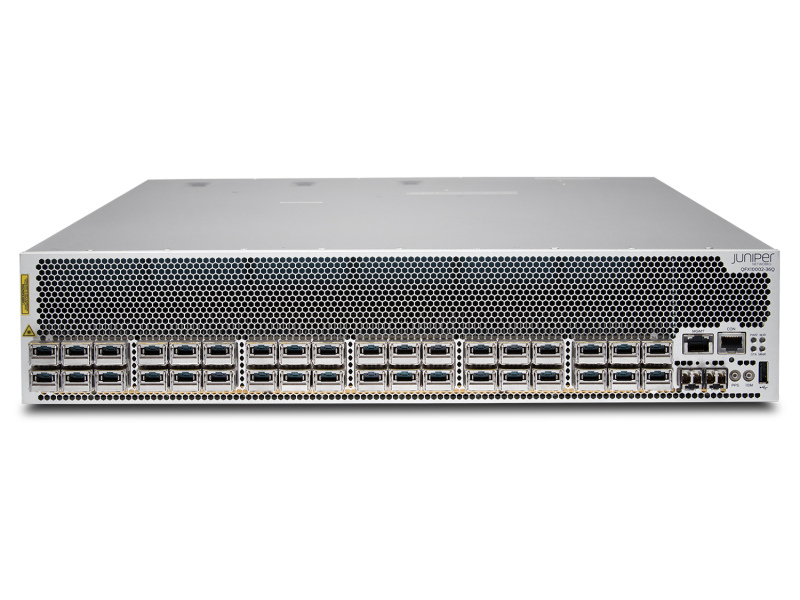

Switches Juniper QFX10002

Switches Juniper QFX10002 Available to Quote:

QFX10002-36Q;

QFX10002-72Q

Request a Quote

Description Specifications Additional materials

The QFX10002 Series Juniper Networks switches with fixed 10/40 and 100 Gb/s ports in a compact 2U form factor are designed to deploy IP / Ethernet networks, data centers and large campus networks.

The QFX10002 series includes three fixed models that provide the rich set of OC Junos ASIC Q5 features, robust and scalable virtualization for SDN, and logical application scaling.

General All

Interfaces

QFX10002-36Q:

QFX10002-36Q-DC:

36-Port 40GbE (QSFP+);
1-Port out-of-band management 1GbE (RJ45);
1-Port out-of-band management 1GbE (SFP);
1-Port PTP 1GbE (RJ45);
1-Port console (RJ45);
1-Port sync IN + OUT 10Hz PPS (SMB);
1-Port sync 10MHz (SMB);
1-Port USB

QFX10002-72Q:

QFX10002-72Q-DC:

72-Port 40GbE (QSFP+);
1-Port out-of-band management 1GbE (RJ45);
1-Port out-of-band management 1GbE (SFP);
1-Port PTP 1GbE (RJ45);
1-Port console (RJ45);
1-Port sync IN + OUT 10Hz PPS (SMB);
1-Port sync 10MHz (SMB);
1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)

88 (2U) x 442 x 787 mm

(3.46 (2U) x 17.4 x 31 in)

Maximum Weight (kg)

QFX10002-36Q:

QFX10002-36Q-DC:

23 kg (50 lbs)

QFX10002-72Q:

QFX10002-72Q-DC:

31 kg (68.6 lbs)

Environmental Conditions

Relative Humidity (%)

5 to 90

Operating Temperature (°C)

0 to 40°C (32 to 104°F)

Maximum Power Consumption (W)

QFX10002-36Q-DC: QFX10002-36Q-DC:	800
QFX10002-72Q:	1425
QFX10002-72Q-DC:	1050

Acoustic noise (dB)

Performance

Switching Bandwidth (Tbit/s)

QFX10002-36Q:

QFX10002-36Q-DC:

2.88

QFX10002-72Q:

QFX10002-72Q-DC:

5.76

Forwarding Rate (Bp/s)

QFX10002-36Q:

QFX10002-36Q-DC:

QFX10002-72Q:

QFX10002-72Q-DC:

MAC Address Table (entries)

1М

ARP Table (entries)

QFX10002-36Q:

QFX10002-36Q-DC:

192,000

QFX10002-72Q:

QFX10002-72Q-DC:

340,000

Layer 2 Features

VLAN

IEEE 802.1Q: 4093; GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	4091
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-SM; PIM-SSM; PIM-DM; MSDP

Layer 3 Features

Routing Table (routes)

IPv4 RIB:	10M
IPv4 FIB:	2M (with 1M FIB license. 256,000 routes are supported by default)

IPv6 RIB:	4M
IPv6 FIB:	2M (with 1M FIB license. 256,000 routes are supported by default)

IP Routing

Static Routes, RIPv1/2, OSPFv2, IS-IS (with Premium Feature license); BGP (with Premium Feature license) VRRP

MPLS / VPN

Supported (with Advanced Feature license). MPLS LDP; L2VPN; L3VPN

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported
