Switches Juniper QFX5120 Series

Switches Juniper QFX5120 Series Available to Quote:

QFX5120-48Y-AFI;

QFX5120-48Y-AFO;

QFX5120-48T-AFI;

QFX5120-48T-AFO;

QFX5120-32C-AFI;

QFX5120-32C-AFO

Request a Quote

Description Specifications Additional materials

The Juniper Networks QFX5120 Series Managed Switches with a high port density of 10 Gbit/s, 25 Gbit/s, 40 Gbit/s, 100 Gbit/s, provides flexible deployment in a corporate LAN.

QFX5120 series runs on the reliable Juniper Networks Junos operating system, supports MPLS, layer 2 and layer 3.

General All

Interfaces

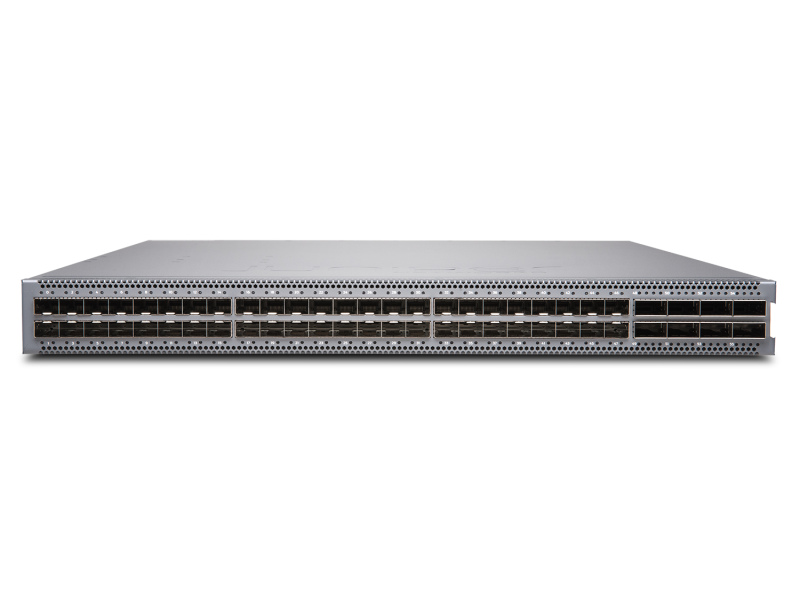

QFX5120-48Y:	48-Port 10/25GbE (SFP+/SFP28); 8-Port 40/100GbE (QSFP28); 1-Port out-of-band management 1GbE (RJ45); 1-Port console (RJ45); 1-Port USB
QFX5120-48T:	48-Port 1/10GbE (SFP/SFP+); 6-Port 40/100GbE (QSFP28); 1-Port out-of-band management 1GbE (RJ45); 1-Port console (RJ45); 1-Port USB
QFX5120-32C:	32-Port 40/100GbE (QSFP28); 1-Port out-of-band management 1GbE (RJ45); 1-Port console (RJ45); 1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

43.7 (1U) x 440.9 x 520.2

(1.72 (1U) x 17.36 x 20.48)

Maximum Weight (kg)/(lbs)

QFX5120-48Y:	10.75 (23.7)
QFX5120-48T:	11.0 (24.25)
QFX5120-32C:	9.58 (21.12)

Environmental Conditions

Relative Humidity (%)

5 to 90

Operating Temperature (°C)

0 to 40 (32 to 104 °F)

Maximum Power Consumption (W)

450

Acoustic noise (dB)

Performance

Switching Bandwidth (Tbit/s)

QFX5120-48Y:	4
QFX5120-48T:	2.16
QFX5120-32C:	6.4

Forwarding Rate (Bp/s)

QFX5120-48Y:	1.31
QFX5120-48T:	1.0017
QFX5120-32C:	2.0

MAC Address Table (entries)

288,000

ARP Table (entries)

64,000

Layer 2 Features

VLAN

IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP, RSTP, MSTP, VXLAN

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	4091
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-SM; PIM-SSM; MSDP

Layer 3 features

Routing Table (routes)

IPv4:	351,000
IPv6:	168,000

IP Routing

Static Routing; RIP; OSPF; IS-IS (with Advanced Feature license); BGP (with Advanced Feature license)

MPLS / VPN

Supported (with Premium Feature license)

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; Syslog; NTP; Junos XML; Python

Power Supply Unit (PSU)

AC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	-48 to -60 VDC

PoE (Power over Ethernet)

Not supported

Compatible Expansion Cards

Not supported
