DWDM Transmission System Ekinops RM 10001-10010 Available to Quote:

RM 10001 Transponder: Supported modes:  100G Transponder. Supports 1 x 100 Gbit/s client

RM 10010 Muxponder: Supported modes:  10x10G. Supports 10 x 10 Gbit/s clients.

Request a Quote
Description Specifications Additional materials

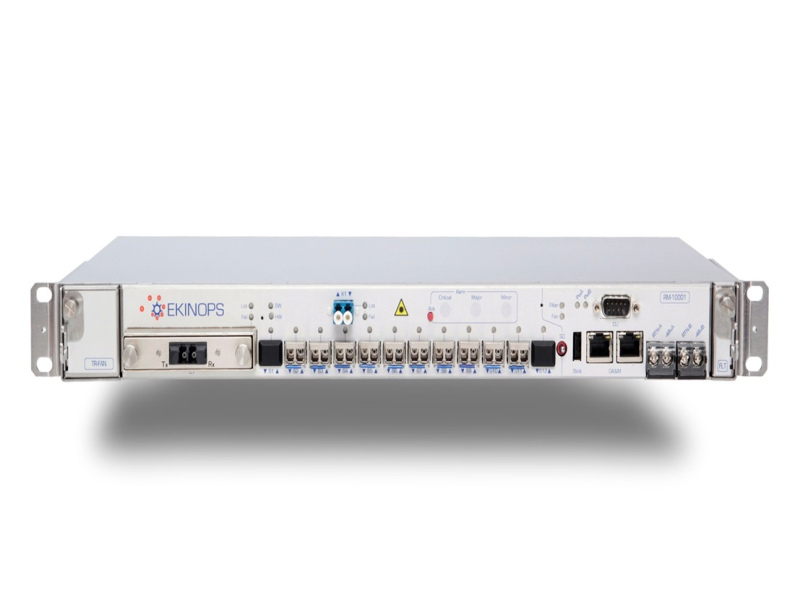

Ekinops RM 10001-10010 is a DWDM system that can operate in 10x10G Muxponder or 100G Transponder modes

General All
Interfaces
1
RM 10001 Transponder:
  • 12-Port 10GbE (SFP+);
  • 1-Port 100GbE (CFP)
RM 10010 Muxponder:
  • 12-Port 10GbE (SFP+);
  • 1-Port 100GbE (CFP)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)

44 (1U) x 482,6 х 300

(1.73 (1U) x 19 x 11.81 in)

4
Environmental Conditions
5
Relative Humidity (%)

10 to 90

6
Operating Temperature (°C)

-5 to +55

(23 to 122°F)

7
Maximum power consumption (W)

200

8
9
100G Clients Aggregation Modes
10
10 x 10GbE
8 x OTU2
12 x 8G FC
8 x OC-192/STM-64
11
Management
12

SNMP, RS232, SSH, HTTP, Ekinops MPSN: Multi-Protocol Service and Network Manager

13
