SDH Transmission System Huawei OptiX OSN 500

Please see "Similar Products" below.

Description Specifications Additional materials

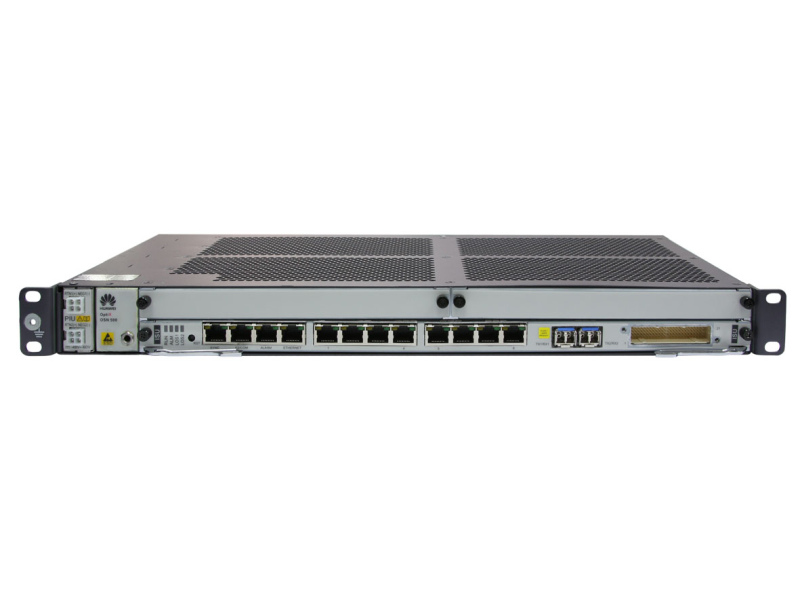

Huawei Optix MSTP (Multi-Service Transmission Platform) OSN 500 SDH System

General All

Interfaces

OSN 500 (DC):

Physical Parameters

Dimensions (HxWxD) (mm)

44 (1U) x 442 х 220

(1.73 (1U) x 17.4 x 8.66 in)

Maximum Weight (kg)

2 kg (4.4 lbs) (Empty chassis)

Environmental Conditions

Relative Humidity (%)

10 to 90

Operating Temperature (°C)

-5 to +55

(23 to 131 °F)

Maximum Power Consumption (W)

100

Performance

Switching Bandwidth (Gbit/s)

Packet Services:	7,2
TDM Services:	20,0

Supported Services

Ethernet interface:	FE/GE
SDH interface:	STM-1/4
PDH interface:	E1/E3; T1/T3
CES interface:	ATM/IMA; PWE3; TDM PWE3
WDM interface:	40 DWDM wavelengths according to ITU-T G.694.1; 8 CWDM wavelengths according to ITU-T G.694.2

Services protection

LSP / PW Linear protection ; MPLS-TP Ring protection
1+1 and 1:1 Linear MSP
ERPS (G.8032); STP/RSTP/MSTP; LAG; LPT; IMA protection

Power Supply Unit (PSU)

AC PSU

Type:	Supported by using UPS-module
Quantity:	1
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Compatible Control Cards

Model Number	Description
TNH1CSHD:	2-Port 100/1000MbE (SFP); 4-Port 100MbE (RJ45); 16-Port E1

Compatible Power Supply Cards

Compatible Auxiliary Cards

Model Number	Description
TNC1FAN:	Fan Card
