OptiXtrans DC908

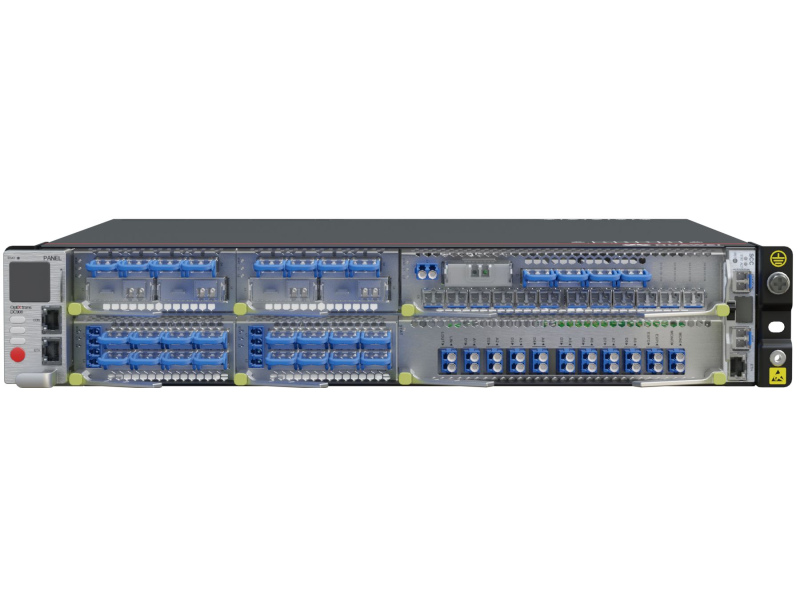

Request a QuoteDWDM Transmission System Huawei OptiXtrans DC908
| OptiXtrans DC908: |
|
86.1 (1U) x 442 х 500
(3.38 (1U) x 17.40 x 19.68 in)
32 (70.54 lb)
5 to 95
-5 to +45
(23 to 113°F)
676
9.6
| 100 Gbit/s: | PDM_QPSK, PDM_wDCM_QPSK |
| 200 Gbit/s: | PDM_16QAM, PDM_16QAM-H, PDM_e16QAM, PDM_QPSK |
| 400 Gbit/s: | PDM_16QAM |
| 600 Gbit/s: | PDM_64QAM |
| 10GE; 25GE; 40GE; 100GE; 400GE |
| OTU4; OTU2; OTU2e; STM-64 |
| FC800; FC1200; FC1600; FC3200 |
| Type: | Removable |
| Quantity: | 2 |
| Rated voltage range: | 100 to 240 VAC, 50-60 Hz |
| Type: | Removable |
| Quantity: | 2 |
| Rated voltage range: | -40 to -72 VDC |
| Model Number | Description |
| SCC: | Control Board for DC908 |
| Model Number | Description |
| PANEL: | Interface Panel Board for DC908 |
| Model Number | Description |
| MD02: | Dual-channel 100G/200G programmable optical transponder unit (OTU) board that implements the conversions between 100GE/OTU4 signals and OTU4/OTUC2 signals |
| MD02A: | Optical transponder unit (OTU) board. It performs mutual conversion between 8G to 100G Any services and OTU4/OTUC2 signals |
| MS04: | Single-channel 100G/400G programmable optical transponder unit (OTU) board. This board performs conversion between 100GE/400GE and OTUC2/OTUC4 signals |
| Model Number | Description |
| MD60: | 60-channel multiplexer/demultiplexer board. It can multiplex/demultiplex 60 optical signals and can be expanded to multiplex/demultiplex 120 optical signals |
| UMD40: | 40-channel multiplexer/demultiplexer board. It can multiplex/demultiplex 40 optical signals and can be expanded to multiplex/demultiplex 80 optical signals |
| EMR8: | Five-in-one optical line board that integrates five functional modules: OA, XFIU, OSC, MR8, and LS |
| Model Number | Description |
| OL: | Optical line board that integrates the functions of the transmit and receive optical amplifiers, XFIU unit, OPM, and OSC&OTDR |
| OLA: | Regeneration line board that integrates the OA, XFIU, OPM, and OSC and OTDR functions |
| Model Number | Description |
| OPC: | Can be equipped with four pluggable modules. The board supports pluggable OLP and EOMSP modules to function as an OLP or EOMSP board |
| Model Number | Description |
| DPSU: | DC Power Supply module |
| APSU: | AC Power Supply module |
| Model Number | Description |
| Fan tray assemply: | Fan module |
