HD Camera Huawei VPT300 Available to Quote:

VPT300

Request a Quote
Description Specifications Additional materials

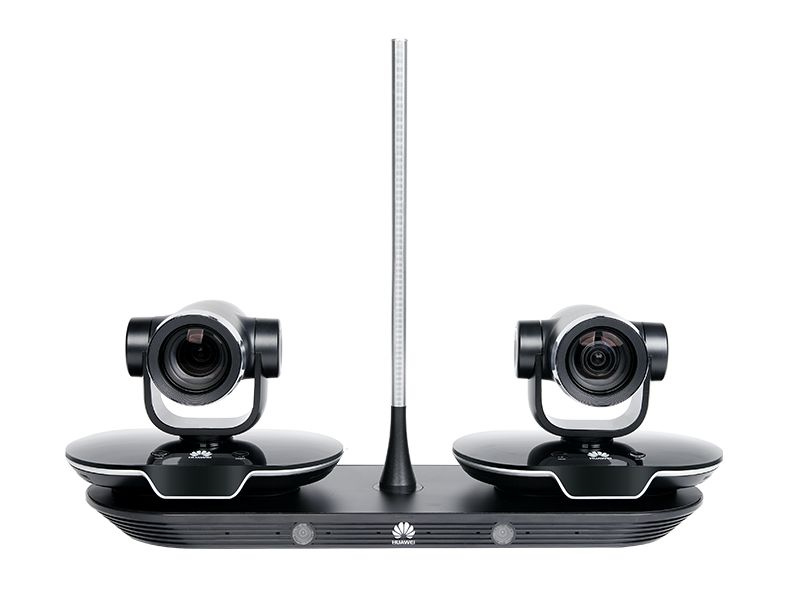

Huawei VTP300 is an intelligent tracking appliance that is equipped with two VPC600 HD cameras.

General All
Interfaces
1
Video interfaces:
  • 2-Port HD-VI (Input);
  • 1-Port HD-VI (Output);
  • 1-Port 3G-SDI (Output)
Audio interfaces:
  • 1-Port 3.5mm (input);
  • 1-Port 3.5mm (output)
Network interfaces:
  • 1-Port 1GbE (RJ45)
Common interfaces:
  • 1-Port console (RJ45)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)

418 x 170 x 530

(16.45 х 20.86 x 6.69 in)

4
Maximum Weight (kg)

6,2 (13.66 Ibs)

5
Environmental Conditions
6
Relative Humidity (%)

0 to 95

7
Operating Temperature (°C)

0 to 40 (32 to 104°F)

8
Maximum power consumption (W)

88

9
Video Output
10

1080p, 720p

11
Lens Specifications
12
Sensor

2.38МP 1/2.8" CMOS

13
Zoom
Optical: 12x
Digital: 12x
14
Focal Length (mm)

f = 3.9 to 46.8

15
Lens Aperture

F1.8

16
Maximum Field of View
Horizontal: 72°
Vertical: 44.5°
17
Pan / Tilt
18
Pan range: ±100°
Tilt range: ±30°
19
Power Supply Unit (PSU)
20
AC PSU
Type: External
Rated voltage range: 100 to 240 VAC, 50-60 Hz.
Output: 19 V DC
21
DC PSU

Not supported
