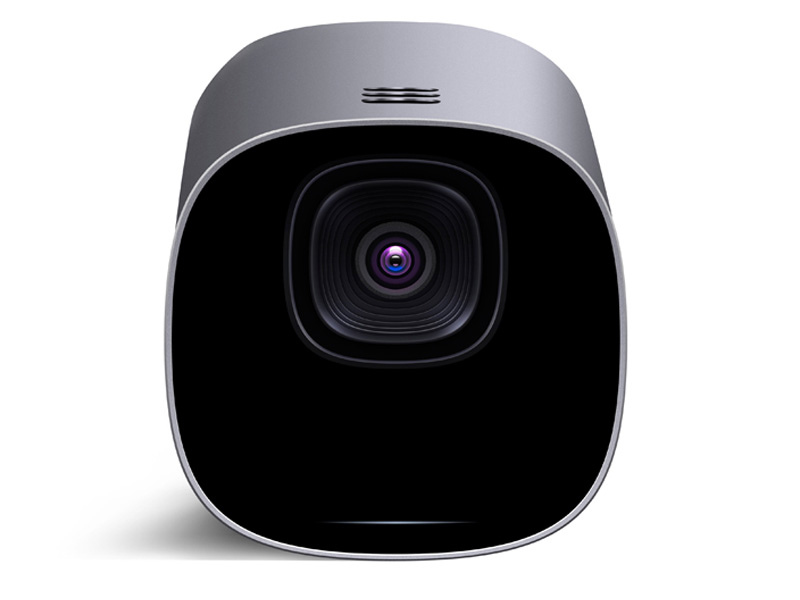

HD Endpoint Huawei TE10

HD Endpoint Huawei TE10 Available to Quote:

TE10

Request a Quote

Description Specifications Additional materials

Innovative cloud-based videoconferencing endpoint support Bluetooth and Wi-Fi.

General All

Interfaces

Video interfaces:	Built-in camera; 1-Port HDMI
Audio interfaces:	Buil-in microphone array; 1-Port 3.5mm (Output); Built-in speaker
Network interfaces:	1-Port 1GbE (RJ45)
Common interfaces:	1-Port USB 2.0

Physical Parameters

Dimensions (HxWxD) (mm)

90 x 90 x 90

(3.54 x 3.54 x 3.54 in)

Maximum Weight (kg)

0,5 (1.10 lbs)

Environmental Conditions

Relative Humidity (%)

0 to 95

Operating Temperature (°C)

0 to 40 (32 to 104°F)

Maximum power consumption (W)

WLAN

WLAN:	IEEE 802.11 a/b/g/n (2.4 ГГц, 5 ГГц)
Bluetooth:	Bluetooth 4.0

Video Output

1080p, 720p

Supported protocols

FTP, FTPS, DHCP, DNS, SNMP, Telnet, SSH, HTTP, HTTPS, SNTP, TR-069, RTP, RTCP

Supported codecs

Voice codecs:	G.711a/u, G.722
Video codecs:	H.264 BP, H.264 HP

Lens Specifications

Sensor

2МP

Zoom

Digital:

Power Supply Unit (PSU)

AC PSU

DC PSU

Not supported
