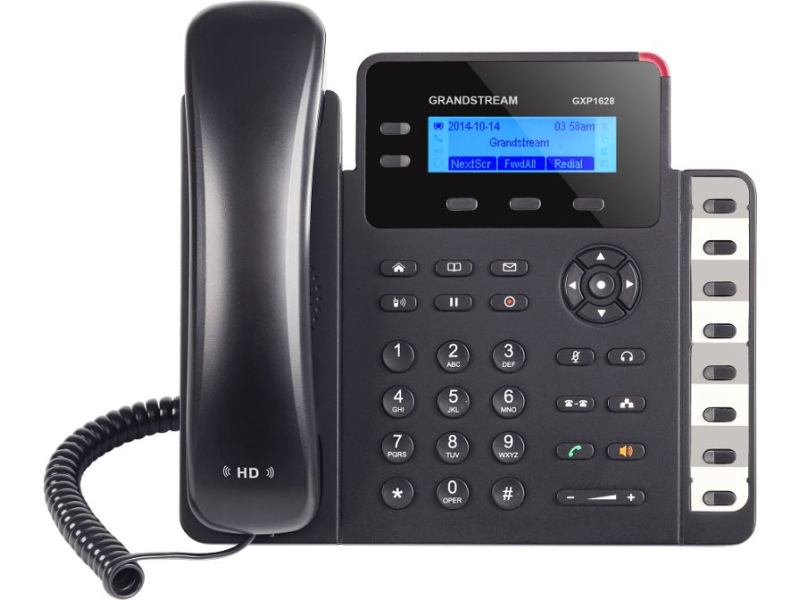

IP Phone Grandstream GXP1628

IP Phone Grandstream GXP1628 Available to Quote:

GXP1628

Request a Quote

Description Specifications Additional materials

GXP1628 Enterprise IP Phone for small and midsize business. IP Phone GXP1628 with 2 ports 1GbE, supports PoE, and 1 port for connecting a Plantronics headset (RJ9).

General All

Interfaces

2-Port 1GbE (RJ45) PoE;
1 headset jack (allowing EHS with Plantronics headsets) (RJ9)

Physical Parameters

Dimensions (HxWxD) (mm)

76 x 192,5 х 220,5

(2.99 x 7.58 x 8.68 in)

Maximum Weight (kg)

0,8 (1.76 lbs)

Environmental Conditions

Relative Humidity (%)

10 to 90

Operating Temperature (°C)

0 to 40 (32 to 104°F)

Maximum power consumption (W)

6,49

Screen

Graphical LCD display;

Resolution: 132 x 48.

Supported protocols

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP.

Supported codecs

G.711u/a-law, G.722 (wide-band), G.729A/B, G.726-32, G.723.1

Power Supply Unit (PSU)

AC PSU

Type:	External
Rated voltage range:	100 to 240 VAC, 50-60 Hz
Output:	5 VDC / 0.6А

DC PSU

Type:

PoE (802.3af)

Datasheet GXP1628 (en)
