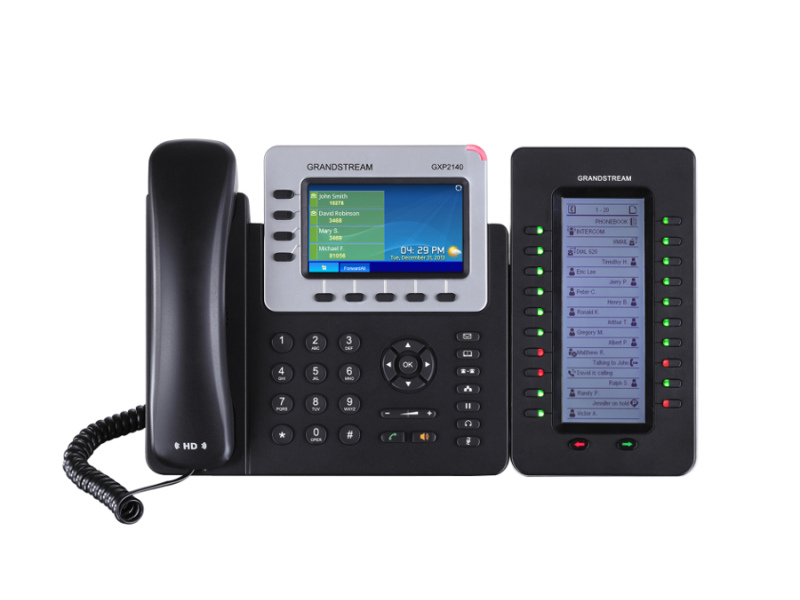

IP Phone Grandstream GXP2140

IP Phone Grandstream GXP2140 Available to Quote:

GXP2140

Request a Quote

Description Specifications Additional materials

Linux-based IP Phone that includes 4 lines, 5 XML programmable soft keys, and 5-way conferencing. A 4.3 color LCD screen and HD audio.

General All

Interfaces

2-Port 1GbE (RJ45) PoE;
1-Port headset jack (allowing EHS with Plantronics headsets) (RJ9);
1-Port USB;
Extension module

Physical Parameters

Dimensions (HxWxD) (mm)

46,5 x 228 х 206

(1.81 x 8.98 x 8.11 in)

Maximum Weight (kg)

0,98 (2.16 lbs)

Environmental Conditions

Relative Humidity (%)

10 to 90

Operating Temperature (°C)

0 to 40 (32 to 104°F)

Maximum power consumption (W)

Screen

4.3" TFT color LCD;

Resolution: 480 x 272.

Supported protocols

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, Bluetooth V2.1.

Supported codecs

G.711u/a-law, G.722 (wide-band), G.729A/B, G.726

Power Supply Unit (PSU)

AC PSU

Type:	External
Rated voltage range:	100 to 240 VAC, 50-60 Hz.
Output:	12 VDC / 1А

DC PSU

Supported PoE (802.3af)

Datasheet GXP2140 (en)
