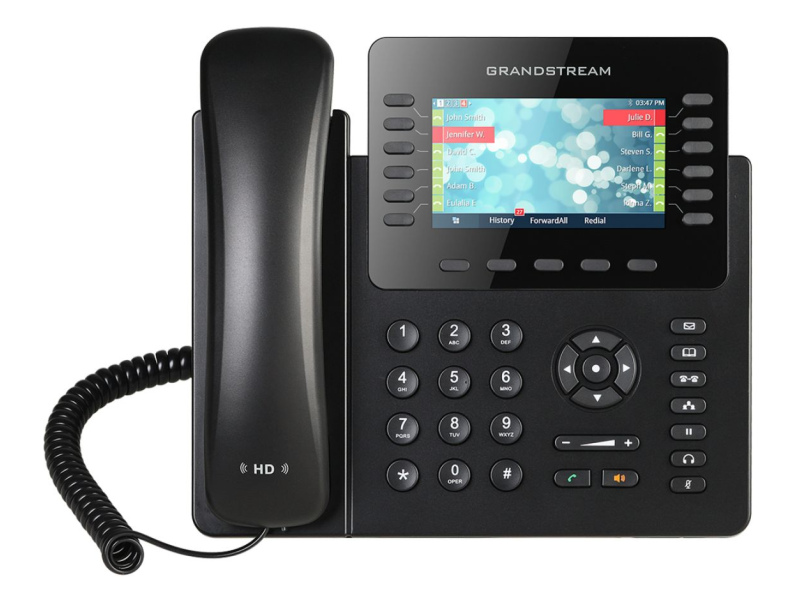

IP Phone Grandstream GXP2170

IP Phone Grandstream GXP2170 Available to Quote:

GXP2170

Request a Quote

Description Specifications Additional materials

Enterprise-grade IP Phone. Supports up to 6 SIP accounts. 4.3 inch color display LCD and full HD audio

General All

Interfaces

2-Port 1GbE (RJ45) PoE;
1-Port headset jack (allowing EHS with Plantronics headsets) (RJ9)
1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)

47 x 228 х 206

(1.85 x 8.97 x 8.11 in)

Maximum Weight (kg)

0.98 (2.1 lbs)

Environmental Conditions

Relative Humidity (%)

10 to 90

Operating Temperature (°C)

0 to 40 (32 to 104 °F)

Maximum Power Consumption (W)

9.2

Screen

4.3" TFT color LCD;

Resolution: 480 x 272.

Supported protocols

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6

Supported codecs

G.729A/B; G.711μ/a-law; G.726; G.722(wide-band); in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Power Supply Unit (PSU)

AC PSU

Type:	External
Rated voltage range:	100 to 240 VAC, 50-60 Hz.
Output:	12 VDC / 1 А

DC PSU

Type:

PoE (802.3af)

GXP2170 Datasheet (en)
