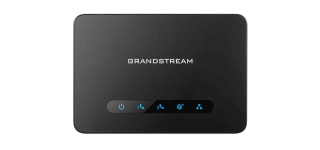

VoIP Gateway Grandstream HT801

VoIP Gateway Grandstream HT801 Available to Quote:

HT801

Request a Quote

Description Specifications Additional materials

The HT801 is a single port FXS VoIP Gateway that allows users to create a high-quality and manageable IP telephony solution for residential and office environments.

General All

Interfaces

1-Port FXS (RJ11);
1-Port 10/100MbE (RJ45)

Physical Parameters

Dimensions (HxWxD) (mm)

29.5 x 100 x 100
(1.14 x 3.93 x 3.93 in)

Maximum Weight (kg)

0.102 (0.22 Ibs)

Environmental Conditions

Relative Humidity (%)

10 to 90

Operating Temperature (°C)

0 to 40 (32 to 104 °F)

Supported protocols

TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261), SIP через TCP/TLS, SRTP, TR-069, HTTP, HTTPS, TELNET, TFTP, TR-069.

Supported codecs

G.711, G.723.1, G.726 (40/32/24/16), G.729 A/B, G.726, iLBC

Management

Telnet; Web; Syslog

Power Supply Unit (PSU)

AC PSU

Type:	External
Rated voltage range:	100 to 240 VAC, 50-60 Hz
Output:	5.0 VDC, 1.0 A

DC PSU

Not supported

HT801 Datasheet (en)
