IP Camera Huawei IPC6125-WDL-FA

IP Camera Huawei IPC6125-WDL-FA Available to Quote:

IPC6125-WDL-FA

Request a Quote

Description Specifications Additional materials

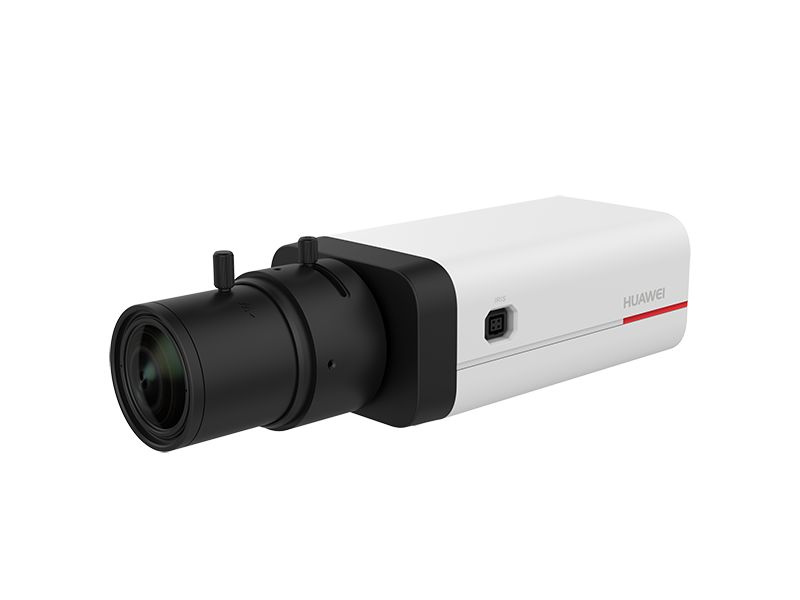

Huawei IPC6125-WDL-FA - IP camera provides high-quality images even in poor lighting conditions

General All

Interfaces

Audio interfaces:	1-Port 3.5mm line-in (IN); 1-Port 3.5mm line-out (OUT)
Network interfaces:	1-Port 1GbE (RJ45); 1-Port SFP
Common interfaces:	1-Port RS485 (5-pin Phoenix connector); 1-Port alarm-in and alarm-out (Phoenix connector); 1-Port CVBS (OUT) (RCA); 1 SD card slot

Physical Parameters

Dimensions (HxWxD) (mm)

62,5 x 78 x 149,2

(2.44 x 3.07 x 5.86 in)

Maximum Weight (kg)

0,5 (1.10 lb)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)

-20 to +60

(-4 to +140°F)

Maximum power consumption (W)

8,6

IP rating compliance

IP66

Video Output

1080p

Supported protocols

TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTP, HTTPS, SFTP, RTP, RTSP, RTCP, SIP, ARP, TLS, NTP, SNMP(V1/V2/V3), 802.1x, QoS, DDNS, FTP, SSL,SSH

Supported codecs

Voice codecs:	G.711u/a; G.726; OPUS
Video codecs:	H.265; H.264; MJPEG

Lens Specifications

Sensor

2MP 1/2.8" CMOS (1920 x 1080)

Lens Aperture

F1.4

Power Supply Unit (PSU)

AC PSU

Type:	External
Rated voltage range:	12 VAC

DC PSU

Type:	PoE (802.3at)
Rated voltage range:	24 VDC
