IP Camera Huawei IPC6224-IR

End-of-Sale.

Please see "Similar Products" below.

Description Specifications Additional materials

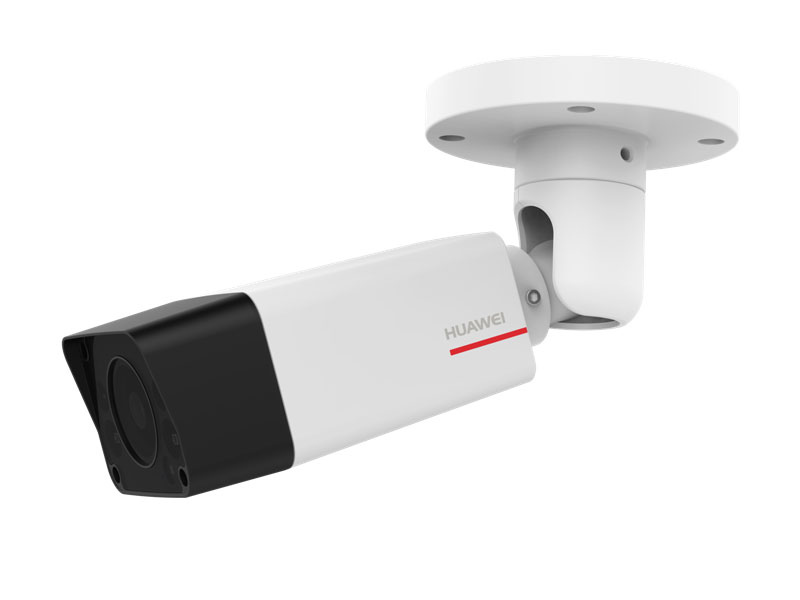

Huawei IPC6224-IR - IP camera provides high-quality images even in poor lighting conditions

General All
Interfaces
1
Audio interfaces: Not supported
Network interfaces:
  • 1-Port 10/100MbE (RJ45)
Common interfaces:
  • 1-Port alarm-in and alarm-out;
  • 1 SD card slot



2
Physical Parameters
3
Dimensions (HxWxD) (mm)

66 x 84,1 x 272,4

(2.59 x 3.31 x 10.72 in)

4
Maximum Weight (kg)

1,35 (2.97 lb)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

-30 to +60 (-22 to +140°F)

8
Maximum power consumption (W)

9,4

9
IP rating compliance

IP66

10
Video Output
11

1920 x 1080

12
Supported protocols
13

TCP/UDP/IP, RTP/RTCP, RTSP, DHCP, DDNS, HTTP, HTTPS, SMTP, FTP, NTP

14
Supported codecs
15
Voice codecs:

Not supported

Video codecs: H.265; H.264; MJPEG
16
Lens Specifications
17
Sensor

2МP 1/2.7" CMOS (1920 x 1080)

18
Focal Length (mm)

f = 3,6 / 6 / 12

19
Lens Aperture

F2.2

20
Maximum Field of View
Horizontal:
f = 3.6 mm 92°
f = 6.0 mm 56.2°
f = 12 mm 27.6°
Vertical:
f = 3.6 mm 49°
f = 6.0 mm 31°
f = 12 mm 15.5°
21
Power Supply Unit (PSU)
22
AC PSU

Not supported

23
DC PSU
Type: Extrenal, PoE (802.3at)
Rated voltage range: 12 V, 24 V
24
