IP Camera Huawei IPC6225-VRZ-ES Available to Quote:

IPC6225-VRZ-ES

Request a Quote
Description Specifications Additional materials

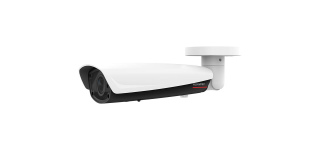

Huawei IPC6225-VRZ-ES - IP camera provides high-quality images even in poor lighting conditions

General All
Interfaces
1
Audio interfaces:
  • 1-Port 3.5mm line-in (IN) and line-out (OUT)
Network interfaces:
  • 1-Port 10/100MbE (RJ45)
Common interfaces:
  • 1-Port RS485 (PELCO-P/D protocol);
  • 2-Channel alarm-in;
  • 2-Channel alarm-out;
  • 1-Channel CVBS output (BNC);
  • 1 SD card slot
2
Physical Parameters
3
Dimensions (HxWxD) (mm)

120 x 128,1 x 353,6

(4.72 x 5.03 x 13.89 in)

4
Maximum Weight (kg)

1,4 (3.08 lb)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

-40 to +60 (-40 to 140°F)

8
Maximum power consumption (W)

16,3

9
Степень защиты IP

IP66

10
Video Output
11

1080p

12
Supported protocols
13

TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTP, HTTPS, SFTP, RTP, RTSP, RTCP, SIP, ARP, TLS, NTP, SNMP(V1/V2/V3), 802.1x, QoS, DDNS

14
Supported codecs
Voice codecs:

G.711u/a; G.726; OPUS

Video codecs: H.265; H.264; MJPEG
15
Lens Specifications
16
Sensor

2.0 МP 1/2.8" CMOS (1920 x 1080)

17
Zoom

Optical: 3.1x

18
Focal Length (mm)

f = 7 to 22

19
Lens Aperture

F1.4

20
Maximum Field of View
Horizontal: 14° to 43°
Vertical: 9° to 22°
21
Power Supply Unit (PSU)
22
AC PSU
Type: External
Rated voltage range: 24 VAC
23
DC PSU
Type: External, PoE (802.3at)
Rated voltage range:

12 VDC, 24 VDC

24
