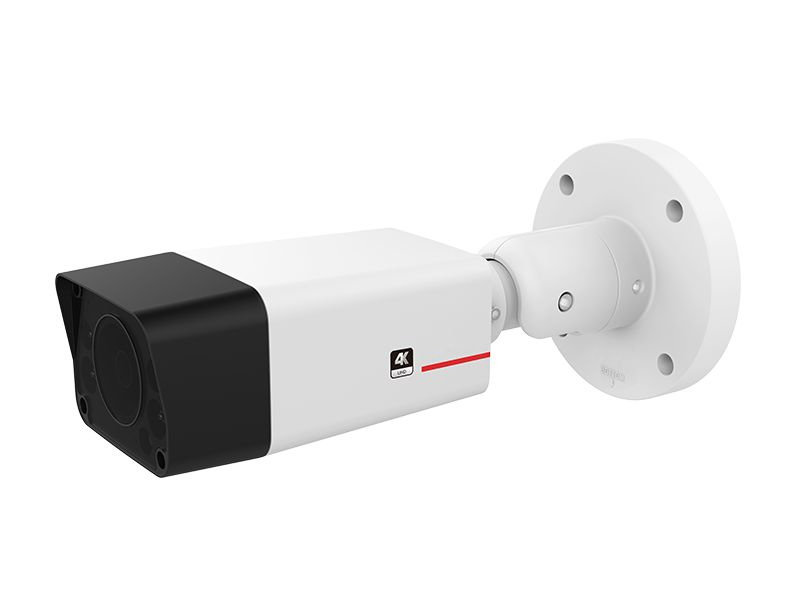

IP Camera Huawei IPC6284-VRZ

IP Camera Huawei IPC6284-VRZ Available to Quote:

IPC6284-VRZ

Request a Quote

Description Specifications Additional materials

IPC6284-VRZ - IP camera provides high-quality images even in poor lighting conditions for warehouses, roads and campuses.

General All

Interfaces

Audio interfaces:	1-Port 3.5mm line-in (IN); 1-Port line-out (OUT)
Network interfaces:	1-Port 10/100MbE (RJ45)
Common interfaces:	1-Channel alarm-in; 1-Channel alarm-out; 1 SD card slot

Physical Parameters

Dimensions (HxWxD) (mm)

66,0 x 84,1 x 272,4

(2.59 x 3.31 x 10.72 in)

Maximum Weight (kg)

1,50 (3.30 lb)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)

-40 to +60 (-40 to 140°F)

Maximum power consumption (W)

17,5

IP rating compliance

IP66

Video Output

3840 x 2160

Supported protocols

TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTP, HTTPS, SFTP, RTP, RTSP, RTCP, SIP, ARP, TLS, NTP, SNMP(V1/V2/V3), 802.1x, QoS, DDNS

Supported codecs

Voice codecs:	G.711u/a; G.726; OPUS
Video codecs:	H.265; H.264; MJPEG

Lens Specifications

Sensor

8.0MP 1/2.5" CMOS (3840 x 2160)

Focal Length (mm)

f = 4,1 to 12,8

Lens Aperture

F1.53 to F3.3

Maximum Field of View

Horizontal:

87.76° to 28.18°

Power Supply Unit (PSU)

AC PSU

Not supported

DC PSU

Type:	External, PoE (802.3at)
Rated voltage range:	12 VDC
