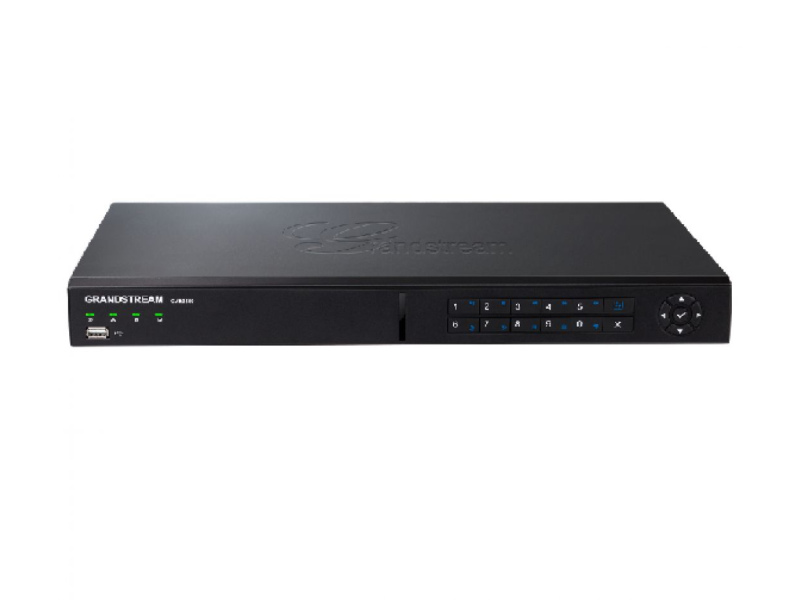

NVR Grandstream GVR3550

End-of-Sale.

Please see "Similar Products" below.

Description Specifications Additional materials

The GVR3550 Network Video Recorder (NVR) offers small to medium businesses and residential users a dedicated and reliable solution for centralized IP video surveillance recording and monitoring.

GVR3550 provides video recording, indexing, searching and video storage management for up to 24 IP video cameras to allow users to record and monitor their IP video surveillance network using one device.

General All

Interfaces

1-Port 1GbE (RJ45);
1-Port HDMI;
1-Port VGA;
1-Port RCA line-in;
1-Port RCA line-out;
1-Port alarm-in (4 inputs NO/NC);
1-Port alarm-out (2 outputs)
2-Port USB;
1-Port eSATA
1-Slot HDD (2 x 2.5" SATA drives);

Physical Parameters

Dimensions (HxWxD) (mm)

44 x 440 х 343,5

(1.73 x 17.32 x 13.50 in)

Maximum Weight (kg)

4 (8.81 lb)

Environmental Conditions

Relative Humidity (%)

10 to 90

Operating Temperature (°C)

0 to 50 (32 to 122°F)

Maximum power consumption (W)

Video Recording features

Max Video Recording channels:	24 channels (RAID 0 and 7,200 rpm HDD) or 16 channels (RAID 1 or 5,400 rpm HDD) of 720p (1280x720) or half the channel density using 1080p Full HD
Total Recording Rate:	48 Mbit/s

Compatible devices

IP cameras:	GXV36xx
Encoders / decoders:	GXV35xx

Supported protocols

TCP/IP/UDP, RTP/RTCP/RTSP, HTTP/HTTPS, ARP, ICMP, DNS, DDNS, DHCP, NTP, SSH, PPPoE, ONVIF 2.2

Supported codecs

Voice codecs:	G.711 (u-Law and a-Law)
Video codecs:	H.264

Power Supply Unit (PSU)

AC PSU

Type:	External
Rated voltage range:	100 to 240 VAC, 50-60Hz
Output:	12 VDC / 5A

DC PSU

Not supported

GVR3550 Datasheet (en)
