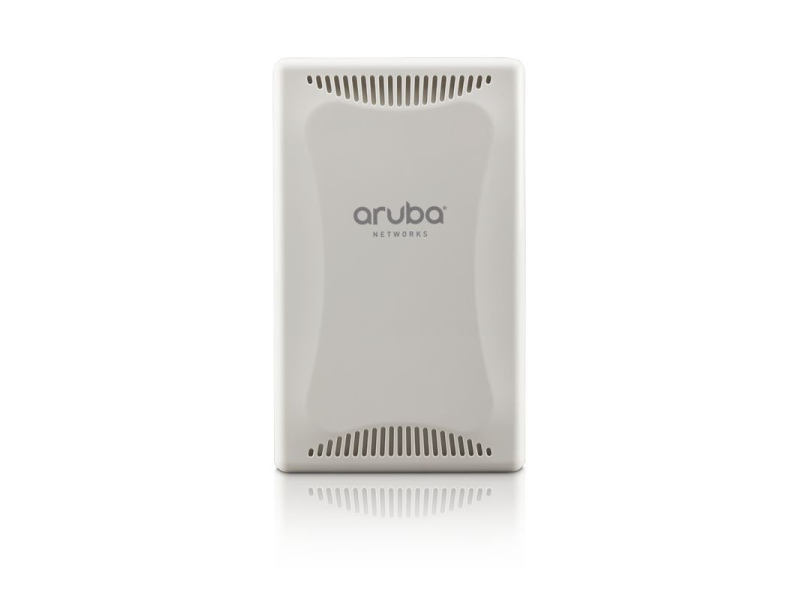

Access Point Aruba AP-103H

End-of-Sale

Please see "Similar Products" below.

Description Specifications Additional materials

Aruba AP-103H Access Point provide maximum data rate of 300 Mbit/s in the 5 GHz and 2.4 GHz bands

General All
Interfaces
1
AP-103H:
  • 1-Port 1GbE (RJ45) (WAN);
  • 2-Port 10/100MbE (RJ45) (LAN);
  • 1-Port Ethernet Pass-Through (RJ45)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)

30 x 140 х 86

(1.18 x 5.51 x 3.38 in)

4
Maximum Weight (kg)

0,26 (0.57 lbs)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

0 to 40 (32 to 104°F)

8
Maximum Power Consumption (W)

8,3

9
Access Point type
10

Indoor

11
Antenna type
12

Internal

13
Mounting
14

Wall / Desktop mounting

15
Supported radio technologies
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11g/n: Orthogonal frequency-division multiplexing (OFDM)
802.11n: 2×2 MIMO with up to two spatial streams



16
Management
17

Aruba Mobility Controller

18
Power Supply Unit (PSU)
19
AC PSU
Type: External
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz
20
DC PSU
Type: External
Quantity: 1
Rated voltage range: -48 VDC, PoE (802.3af).
21
