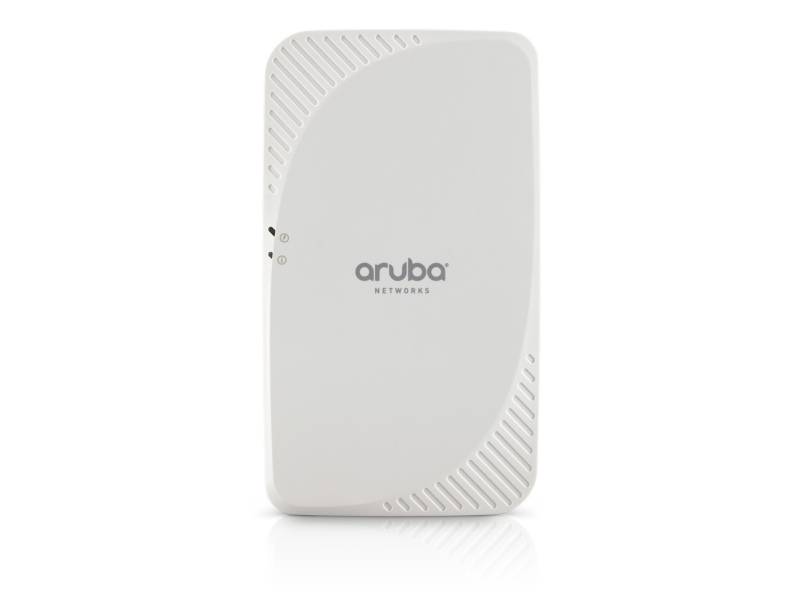

Access Point Aruba AP-205H Available to Quote:

AP-205H

Request a Quote
Description Specifications Additional materials

Access Points AP-205H provide maximum data rate of 400 Mbit/s in the 5 GHz and 2.4 GHz bands

General All
Interfaces
1
AP-205H:
  • 1-Port 1GbE (RJ45) (WAN) PoE;
  • 3-Port 10/100MbE (RJ45) (LAN) (1 port with PoE output (802.3af);
  • 1-Port passive pass-through (RJ45)
  • 1-Port USB;
  • 1-Port console (RJ45)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)

86 x 40 х 150

(3.38 x 1.57 x 5.90 in)

4
Maximum Weight (kg)

0,375 (0.82 lbs)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

0 to 40 (32 to 104°F)

8
Maximum Power Consumption (W)

12,5

9
Access Point type
10

Indoor

11
Antenna type
12

Internal

13
Mounting
14

Wall / Desktop mounting

15
Supported radio technologies
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n: Orthogonal frequency-division multiplexing (OFDM)
802.11n: 2×2 MIMO with up to two spatial streams
16
Management
17

Aruba Mobility Controller management, Instant AP

18
Power Supply Unit (PSU)
19
AC PSU

Not Supported

20
DC PSU
Type: External or PoE
Quantity: 1
Rated voltage range: -48 VDC
21
