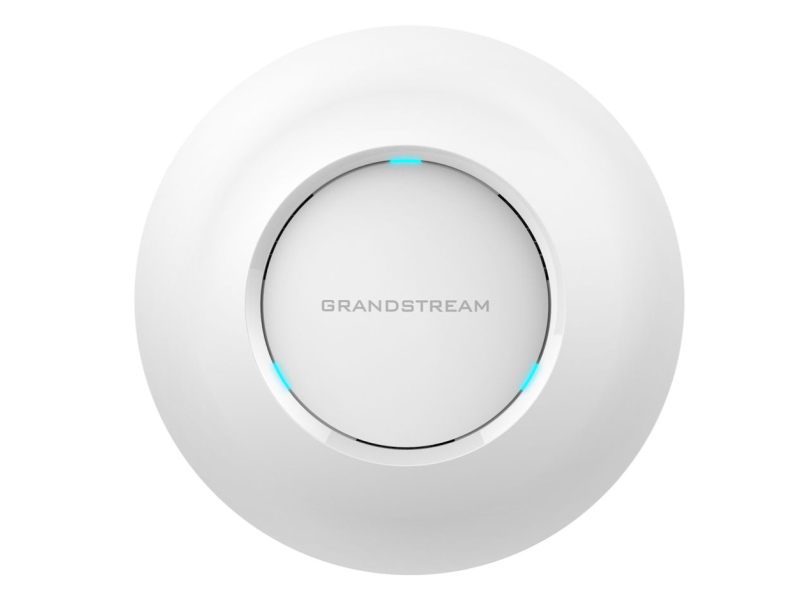

Access Point Grandstream GWN7610

Access Point Grandstream GWN7610 Available to Quote:

GWN7610

Request a Quote

Description Specifications Additional materials

Grandstream GWN7610 provide maximum data rate of 1300 Mbit/s in the 5 GHz and 450 Mbit/s in the 2.4 GHz bands

General All

Interfaces

GWN7610:

Physical Parameters

Dimensions (HxWxD) (mm)

45,9 x 205,3 x 205,3

(1.77 x 8.08 x 8.08 in)

Maximum Weight (kg)

0,54 (1.19 lbs)

Environmental Conditions

Relative Humidity (%)

10 to 90

Operating Temperature (°C)

0 to 50 (32 to 122°F)

Maximum Power Consumption (W)

13,8

Access Point type

Indoor

Antenna type

Internal

Mounting

Wall / Ceiling mounting

Supported radio technologies

802.11b:	Direct-sequence spread-spectrum (DSSS)
802.11a/g/n/ac:	Orthogonal frequency-division multiplexing (OFDM)
802.11n/ac:	802.11n: 3×3 MIMO with up to three spatial streams; 802.11ac: 3×3 MIMO with up to three spatial streams

Management

Embedded controller, supports up to 50 GWN7610 AP.

Power Supply Unit (PSU)

AC PSU

DC PSU
