Access Points Aruba 103 Series

Please see "Similar Products" below.

Description Specifications Additional materials

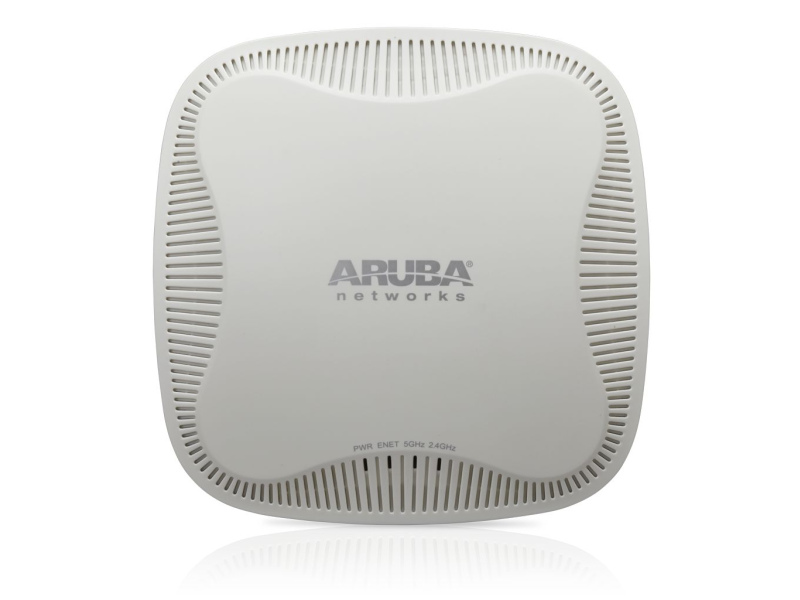

Aruba 103 Series Access Points series provide maximum data rate of 300 Mbit/s in the 5 GHz and 2.4 GHz bands

General All

Interfaces

IAP-103:	1-Port 1GbE (RJ45); 1-Port console (proprietary; optional adapter cable available)
AP-103:	1-Port 1GbE (RJ45); 1-Port console (proprietary; optional adapter cable available)

Physical Parameters

Dimensions (HxWxD) (mm)

41.5 x 150 х 150

(1.6 x 5.9 x 5.9 in)

Maximum Weight (kg)

0,3 (0.66 lbs)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)

0 to 40 (32 to 104°F)

Maximum Power Consumption (W)

Access Point type

Indoor

Antenna type

Internal

Mounting

Wall / Ceiling mounting

Supported radio technologies

802.11b:	Direct-sequence spread-spectrum (DSSS)
802.11a/g/n:	Orthogonal frequency-division multiplexing (OFDM)
802.11n:	2×2 MIMO with up to two spatial streams

Management

AP-103:	Aruba Mobility Controller
IAP-103:	Instant AP

Power Supply Unit (PSU)

AC PSU

DC PSU
