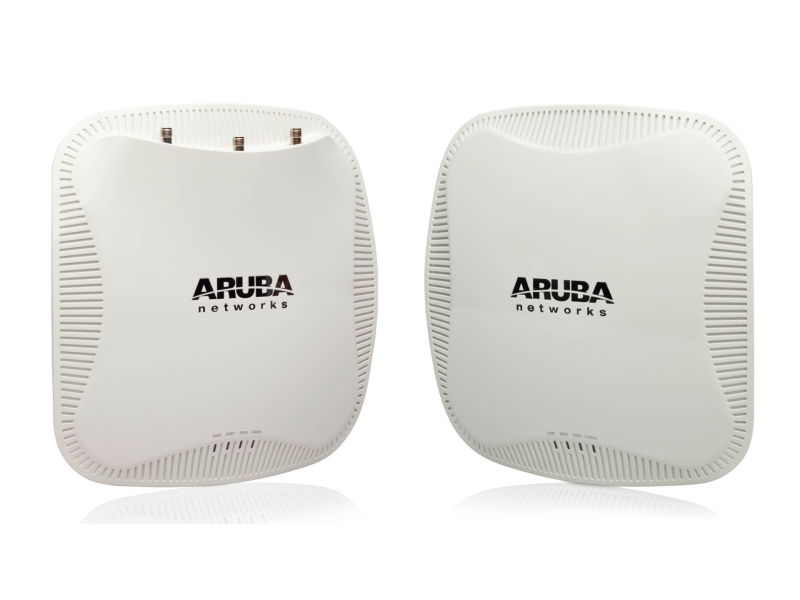

Access Points Aruba 110 Series

Please see "Similar Products" below.

Description Specifications Additional materials

Aruba 110 Series Access Points provide maximum concurrent data rate of 450 Mbit/s in the 5 GHz band and 2.4 GHz.

General All

Interfaces

IAP-114:	1-Port 1GbE (RJ45); 1-Port USB; 1-Port console (RJ45)
AP-114:	1-Port 1GbE (RJ45); 1-Port USB; 1-Port console (RJ45)
IAP-115:	1-Port 1GbE (RJ45); 1-Port USB; 1-Port console (RJ45)
AP-115:	1-Port 1GbE (RJ45); 1-Port USB; 1-Port console (RJ45)

Physical Parameters

Dimensions (HxWxD) (mm)

45 x 180 х 180

(1.77 x 7.08 x 7.08 in)

Maximum Weight (kg)

0.65 (1.43 lbs)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)

0 to 50 (32 to 122°F)

Maximum Power Consumption (W)

Access Point type

Indoor

Antenna type

IAP-114 / AP-114:	external
IAP-115 / AP-115:	internal

Mounting

Wall / Ceiling mounting

Supported radio technologies

802.11b:	Direct-sequence spread-spectrum (DSSS)
802.11a/g/n:	Orthogonal frequency-division multiplexing (OFDM)
802.11n:	3×3 MIMO with up to three spatial streams

Management

AP-114 / AP-115:	Aruba Mobility Controller
IAP-114 / IAP-115:	Instant AP

Power Supply Unit (PSU)

AC PSU

DC PSU
