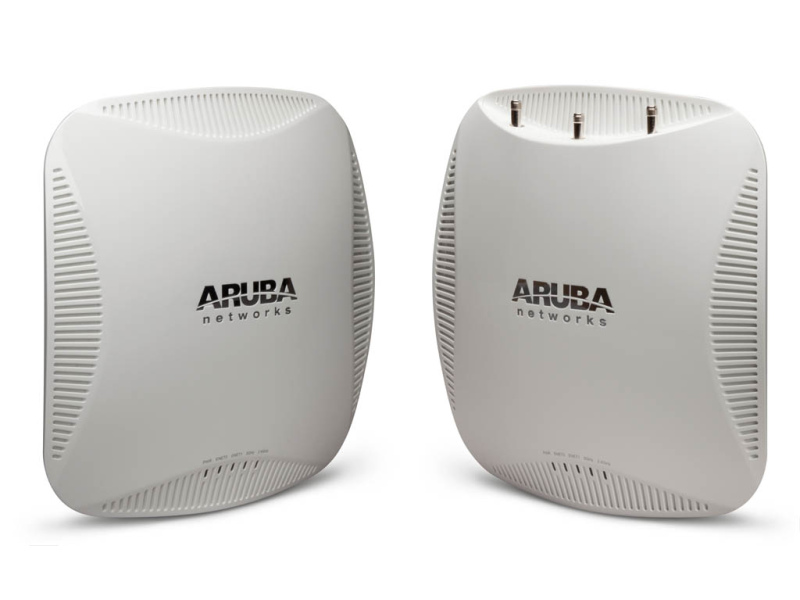

Access Points Aruba 220 Series

Please see "Similar Products" below.

Description Specifications Additional materials

Aruba 220 series Access Points provide maximum data rate of up 1.3 Gbit/s in the 5 GHz band and up to 600 Mbit/s in the 2.4 GHz band.

General All

Interfaces

IAP-224:	2-Port 1GbE (RJ45); 1-Port USB; 1-Port console (RJ45)
AP-224:	2-Port 1GbE (RJ45); 1-Port USB; 1-Port console (RJ45)
IAP-225:	2-Port 1GbE (RJ45); 1-Port USB; 1-Port console (RJ45)
AP-225:	2-Port 1GbE (RJ45); 1-Port USB; 1-Port console (RJ45)

Physical Parameters

Dimensions (HxWxD) (mm)

54 x 203 х 203

(2.1 x 7.9 x 7.9 in)

Maximum Weight (kg)

0.75 (1.65 lbs)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)

0 to 50 (32 to 122 °F)

Maximum Power Consumption (W)

Access Point type

Indoor

Antenna type

IAP-224: AP-224:	External
IAP-225: AP-225:	Internal

Mounting

Wall / Ceiling mount

Supported radio technologies

802.11b:	Direct-sequence spread-spectrum (DSSS)
802.11a/g/n/ac:	Orthogonal frequency-division multiplexing (OFDM)
802.11n/ac:	3×3 MIMO with up to three spatial streams

Management

IAP-224:

AP-224:

Aruba Mobility Controller

IAP-225:

AP-225:

Instant AP

Power Supply Unit (PSU)

AC PSU

DC PSU
