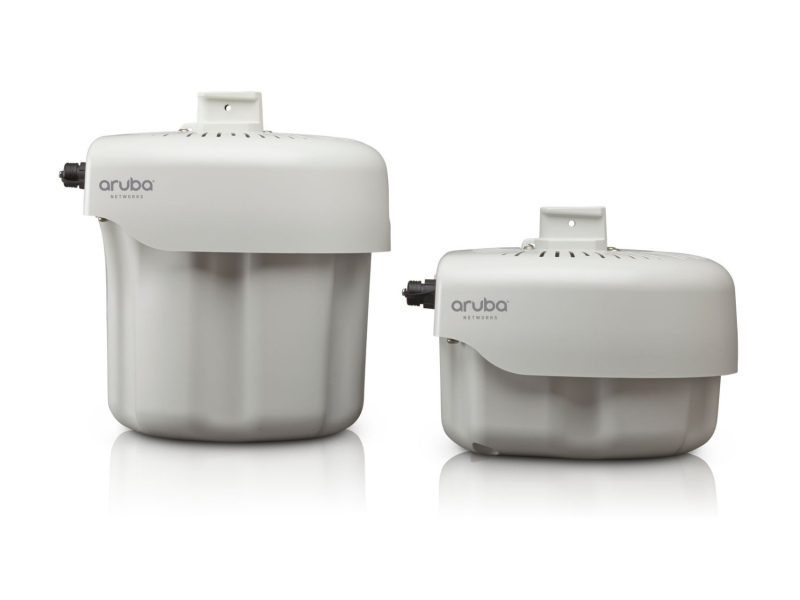

Access points Aruba 270 provide maximum data rate of 1.3 Gbit/s in the 5 GHz and 600 Mbit/s in the 2.4 GHz
|
AP-274:
IAP-274:
|
|
|
AP-276:
IAP-275:
|
|
|
AP-277:
IAP-277:
|
|
|
AP-274 (with aesthetic cover):
|
190 x 230 х 240
(7.5 x 9.0 x 9.4 in)
|
|
AP-275:
|
270 x 230 х 240
(10.6 x 9.0 x 9.4 in)
|
|
AP-277:
|
130 x 230 х 220
(5.1 x 9.0 x 8.7 in)
|
| AP-274 (with aesthetic cover): | 2.7 (6 lbs) |
| AP-275: | 2.4 (5.3 lbs) |
| AP-277: | 2.1 (4.6 lbs) |
5 to 95
-40 to +65 (-40 to 150°F)
23
Outdoor
| AP-274: | 6 N-type female connectors for external antennas |
| AP-275: | 6 integrated omni-directional antennas for 3x3 MIMO with maximum antenna gain of 5 dBi in 2.4 GHz and 5 dBi in 5 GHz. Built-in antennas are optimized for horizontal mounted orientation of AP-275. |
| AP-277: | 6 integrated multipolarized directional antennas with 80º H x 80º V beamwidths for 3x3 MIMO with maximum antenna gain of 6.5 dBi in 2.4 GHz and 5 GHz. |
Pole/ Wall mounting
| 802.11b: | Direct-sequence spread-spectrum (DSSS) |
| 802.11a/g/n: | Orthogonal frequency-division multiplexing (OFDM) |
| 802.11n: | 3×3 MIMO with up to three spatial streams |
Aruba Mobility Controller, Instant AP
| Type | External |
| Quantity: | 1 |
| Rated voltage range: | 100 to 240 VAC, 50-60 Hz |
| Type | PoE |
| Quantity: | 1 |
| Rated voltage range: | -48 VDC |
