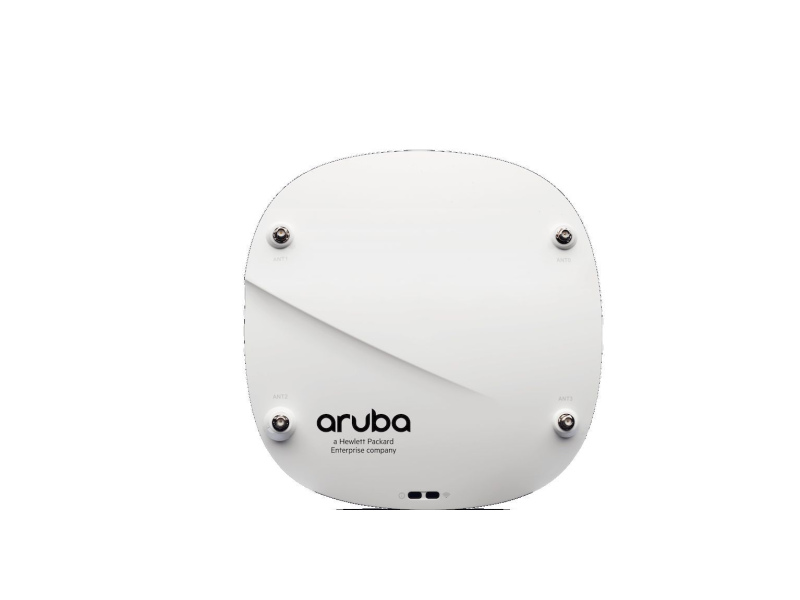

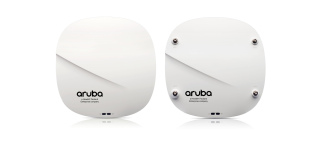

Access Points Aruba 310 Series

Access Points Aruba 310 Series Available to Quote:

AP-314; IAP-314

AP-315; IAP-315

Request a Quote

Description Specifications Additional materials

Access Points Aruba 310 series provides data transfer at 1733 Mbit/s in the 5 GHz band and 800 Mbit/s in the 2.4 GHz band.

General All

Interfaces

IAP-314:	1-Port 1GbE (RJ45) PoE; 1-Port USB 2.0; 1-Port console (proprietary)
AP-314:	1-Port 1GbE (RJ45) PoE; 1-Port USB 2.0; 1-Port console (proprietary)
IAP-315:	1-Port 1GbE (RJ45) PoE; 1-Port USB 2.0; 1-Port console (proprietary)
AP-315:	1-Port 1GbE (RJ45) PoE; 1-Port USB 2.0; 1-Port console (proprietary)

Physical Parameters

Dimensions (HxWxD) (mm)

48 x 182 х 180

(1.88 x 7.16 x 7.08 in)

Maximum Weight (kg)

0,85 (1.87 lbs)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)

0 to 50 (32 to 122°F)

Maximum Power Consumption (W)

14,1

Access Point type

Indoor

Antenna type

IAP-314 / AP-314:	external
IAP-315 / AP-315:	internal

Mounting

Wall / Ceiling mounting

Supported radio technologies

802.11b:	Direct-sequence spread-spectrum (DSSS);
802.11a/g/n/ac:	Orthogonal frequency-division multiplexing (OFDM)
802.11n/ac:	802.11n: 2×2 MIMO with up to two spatial streams; 802.11ac: 4×4 MIMO with up to four spatial streams;
Bluetooth Low Energy (BLE) radio:	4 dBm transmit power (class 2) and -91 dBm receive sensitivity. Integrated antenna, 3.5 dBi (AP314/IAP314) or 1.5 dBi (AP315/IAP315) gain (30 degrees downtilt)

Management

AP-314:

AP-315:

Aruba Mobility Controller

IAP-314:

IAP-315:

Instant AP

Power Supply Unit (PSU)

AC PSU

Постоянного тока (англ. DC)
