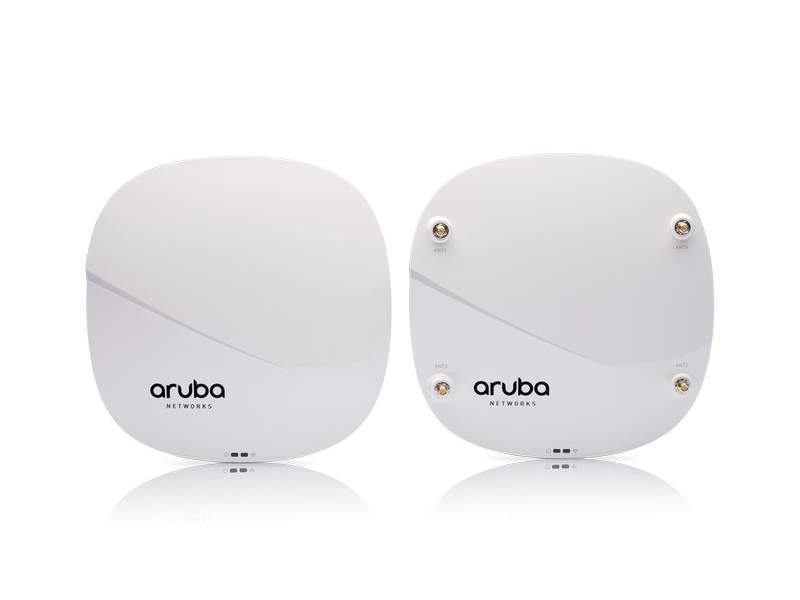

Access Points Aruba 320 Series

Access Points Aruba 320 Series Available to Quote:

IAP-324; AP-324

IAP-325; AP-325

Request a Quote

Description Specifications Additional materials

Aruba 320 Series Access Points provide maximum data rate of 1733 Mbit/s in the 5 GHz and 800 Mbit/s in the 2.4 GHz bands

General All

Interfaces

IAP-324:	2-Port 1GbE (RJ45); 1-Port USB; 1-Port console (RJ45)
AP-324:	2-Port 1GbE (RJ45); 1-Port USB; 1-Port console (RJ45)
IAP-325:	2-Port 1GbE (RJ45); 1-Port USB; 1-Port console (RJ45)
AP-325:	2-Port 1GbE (RJ45); 1-Port USB; 1-Port console (RJ45)

Physical Parameters

Dimensions (HxWxD) (mm)

57 x 203 х 203

(2.2 x 8.0 x 8.0 in)

Maximum Weight (kg)

0,95 (2.094 lbs)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)

0 to 50 (32 to 122°F)

Maximum Power Consumption (W)

Access Point type

Indoor

Antenna type

IAP-324 / AP-324:	external
IAP-325 / AP-325:	internal

Mounting

Wall / Ceiling mounting

Supported radio technologies

802.11b:	Direct-sequence spread-spectrum (DSSS);
802.11a/g/n/ac:	Orthogonal frequency-division multiplexing (OFDM)
802.11n/ac:	4×4 MIMO with up to four spatial streams
Bluetooth Low Energy (BLE) radio:	4 dBm transmit power (class 2) and -94dBm receive sensitivity. Integrated antenna, -5 dBi gain (30 degrees downtilt)

Management

AP-324:

AP-325:

Aruba Mobility Controller

IAP-324:

IAP-325:

Instant AP

Power Supply Unit (PSU)

AC PSU

DC PSU
