Access Points Aruba RAP-100 Series

Please see "Similar Products" below.

Description Specifications Additional materials

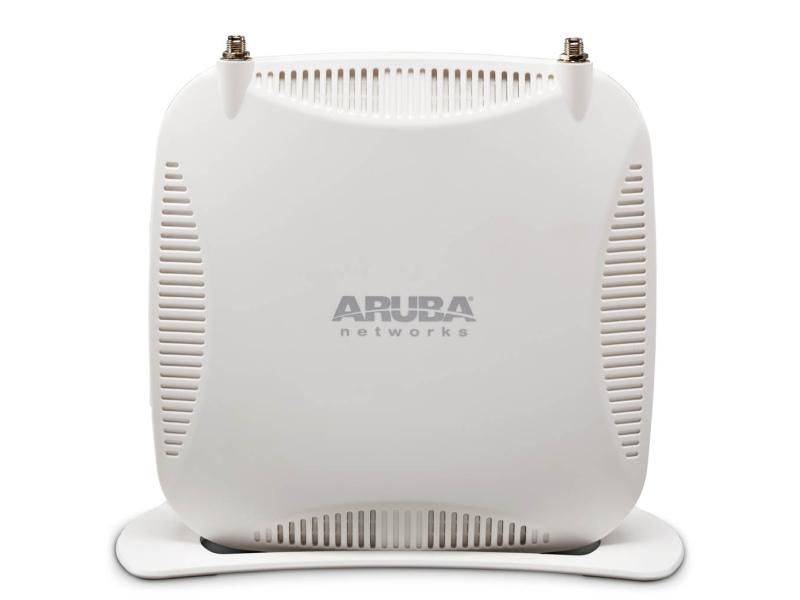

Aruba RAP-100 Access Points provide maximum data rate of 300 Mbit/s in the 2.4 GHz and 5 GHz bands

General All

Interfaces

RAP-108:	1-Port 1GbE (RJ45) WAN; 1-Port 10/100MbE (RJ45) LAN; 1-Port USB; 1-Port console (RJ45)
RAP-109:	1-Port 1GbE (RJ45) WAN; 1-Port 10/100MbE (RJ45) LAN; 1-Port USB; 1-Port console (RJ45)

Physical Parameters

Dimensions (HxWxD) (mm)

72 x 181 х 160

(2.8 x 7.1 x 6.3 in)

Maximum Weight (kg)

0.46 (1.01 lbs)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)

0 to 40 (32 to 104°F)

Maximum Power Consumption (W)

Access Point type

Indoor

Antenna type

RAP-108:	external
RAP-109:	internal

Mounting

Wall / Desktop mounting

Supported radio technologies

802.11b:	Direct-sequence spread-spectrum (DSSS)
802.11a/g/n:	Orthogonal frequency-division multiplexing (OFDM)
802.11n:	2×2 MIMO with up to two spatial streams

Management

Aruba Mobility Controller, Instant AP

Power Supply Unit (PSU)

AC PSU

DC PSU

Type:

PoE+ (802.3at)
