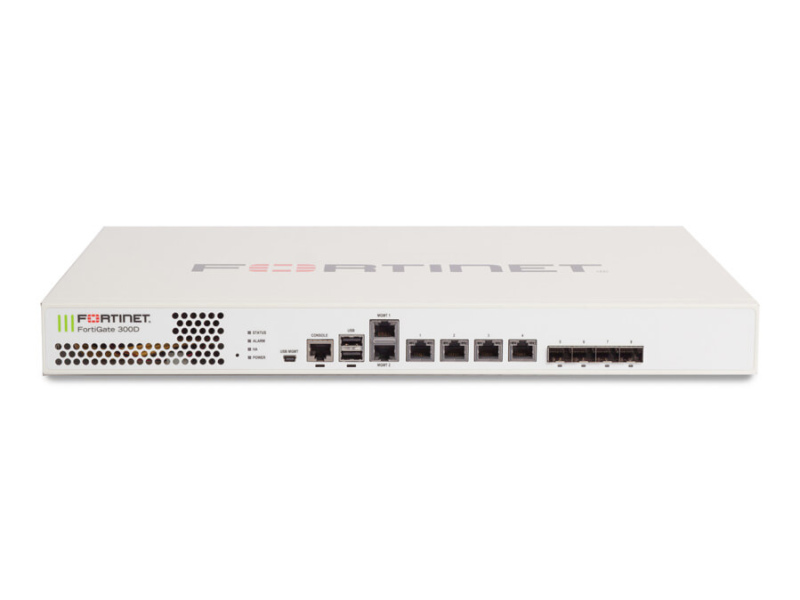

Fortinet FortiGate 300D Series

End-of-Sale

Please see "Similar Products" below.



Description Specifications Additional materials

The FortiGate 300D gateway provides comprehensive network security in a compact size, it is an operating system of network security and unified policy management, the most effective against modern cyber threats and targeted attacks.

The FortiGate 300D Gateway supports routing, switching, IPv4 / IPv6, SCTP, low latency multicast traffic up to 2 microseconds VPN, CAPWAP, and an accelerated IP tunnel.

FortiGate 300D provides flexible deployment, reliable protection against cyber threats using the SPU CP8 security processor. The SPU CP8 processor provides the high performance needed to block emerging threats and ensures that your network security solution does not become a network bottleneck.

General All
Interfaces
1
FortiGate 300D:
  • 6-Port 1GbE (RJ45);
  • 4-Port 1GbE (SFP);
  • 2-Port USB;
  • 2-Port management (RJ45);
  • 1-Port console (miniUSB/RJ45);
  • 120 GB SSD local storage
2
Physical Parameters
3
Dimensions (HxWxD) (mm)

44 (1U) x 432 х 322 mm

(1.75 (1U) x 17.01 x 12.68 in)

4
Maximum Weight (kg)

4.8 kg (10.5 lbs)

5
Environmental Conditions
6
Relative Humidity (%)

20 to 90

7
Operating Temperature (°C)

0 to 40 (32 to 104 °F)

8
Maximum Power Consumption (W)

194

9
Performance
10
Firewall throughput (Gbit/s): 8
Firewall throughput (Mp/s): 12
Maximum concurrent sessions: 6M
Connections per second: 200 000
Maximum security policies: 10 000
IPsec VPN throughput (Gbit/s): 7
IPsec VPN tunnels: 10 000
IPS throughput (Gbit/s): 2.8
Application Control throughput (Gbit/s) 2.5
11
Power Supply Unit (PSU)
12
AC PSU
Type: Built-in
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz
13
DC PSU

Not supported

14
Compatible Expansion Cards
15

Not supported
