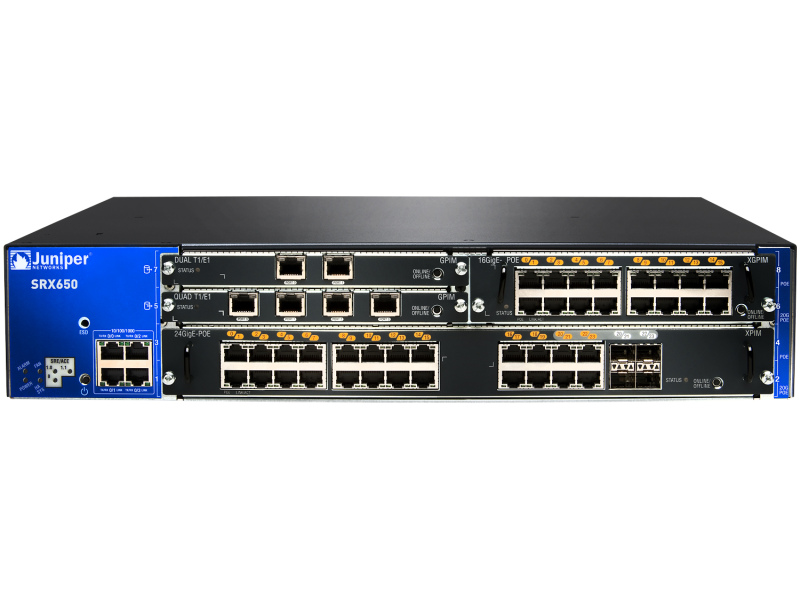

Juniper SRX650
Juniper SRX650

End-of-Sale

Please see "Similar Products" below.


Description Specifications Additional materials

Security Gateway for Midsize Enterprises

General All
Interfaces
1

SRX650-BASE-645AP:

SRX650-BASE-645DP:
  • 2 Control Cards (SRE) slots;
  • 6 GPIM Cards expansion slots;
  • 4-Port 1GbE (RJ45)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
88 (2U) x 444 х 462
(3.46 (2U) x 17.48 x 18.19 in)
4
Maximum Weight (kg)

11.3 (24.9 lbs)

5
Environmental Conditions
6
Relative Humidity (%)

10 to 90

7
Operating Temperature (°C)

0 to 40 (32 to 104°F)

8
Maximum Power Consumption (W)

122

9
Performance
10
Firewall throughput IMIX (Gbit/s): 7
Firewall throughput (64 Byte) (Kp/s): 850
Maximum concurrent sessions: 512,000
Connections per second: 35,000
Maximum security policies: 8192
IPsec VPN throughput (Gbit/s): 1.5
IPsec VPN tunnels: 3000
IPS throughput (Mbit/s): 1000
Application Control throughput (Mbit/s): 350
11
Power Supply Unit (PSU)
12
AC PSU
Type: Removable
Quantity: 2
Rated voltage range: 100 to 240 VAC, 50-60 Hz
13
DC PSU
Type: Removable
Quantity: 2
Rated voltage range: -48 to -60 VDC
14
Compatible Expansion Cards
15
Compatible GPIM Cards
Model Number Description
SRX-GP-DUAL-T1-E1: 2-Port E1
SRX-GP-QUAD-T1-E1: 4-Port E1
SRX-GP-1DS3-E3: 1-Port DS3/E3
SRX-GP-8SERIAL: 8-Port serial (DCE/DTE)
16
Compatible XPIM Cards
Model Number Description
SRX-GP-16GE: 16-Port 1GbE (RJ45)
SRX-GP-16GE-POE: 16-Port 1GbE (RJ45) PoE
SRX-GP-2XE-SFPPTX:
 2-Port 10GbE (SFP+)
SRX-GP-24GE: 18-Port 1GbE (RJ45);
4-Port combo 1GbE (RJ45/SFP)
SRX-GP-24GE-POE: 18-Port 1GbE (RJ45) PoE;
4-Port combo 1GbE (RJ45/SFP) PoE
SRX-GP-8SFP: 2-Port 1GbE (SFP)
17

SRX650 Datasheet (en)

SRX Series Expansion Cards Datasheet (en)
