OLT Huawei MA5603T

Interfaces

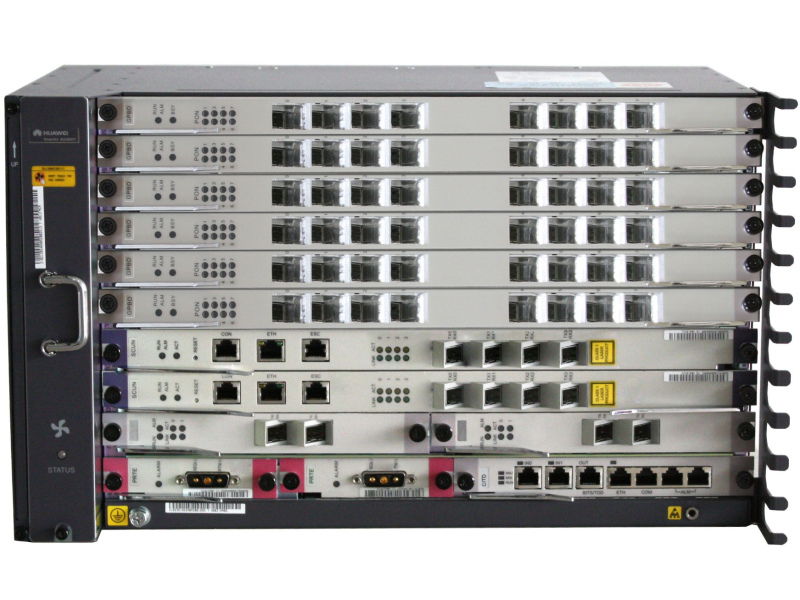

MA5603T:

6 Service Board slots;
2 Control Board slots;
2 Uplink Card slots;
2 DC Power Supply Card slots

Physical Parameters

Dimensions (HxWxD) (mm)

263.90 (6U) x 535 x 283.20

(10.39 (6U) x 21.07 x 11.15 in)

Maximum Weight (kg)

20 (44.1 lbs)

Environmental Conditions

Relative Humidity (%)

5 to 85

Operating Temperature (°C)

-5 to +45 (23 to 113°F)

Maximum Power Consumption (W)

670

Performance

Switching Bandwidth (Tbit/s)

1.5

MAC Address Table (entries)

SCUN:	32,000
SCUH:	131,072

ARP Table (entries)

SCUH:	16,384
SCUN:	8192

Maximum PON ports

GPON:	96
XG-PON:	48

Функции 2 уровня

VLAN

IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; ERPS (G.8032)

Multicast

IGMP snooping:	v2/v3
IGMP groups:	4096
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-SSM

Layer 3 features

Routing Table (routes)

IPv4:
SCUN:	5120
SCUH:	12,288

IPv6:
SCUN:	5120
SCUH:	6144

IP Routing

Static Routing; RIPv1/2; OSPFv2; IS-IS; VRRP; BGP

MPLS / VPN

Supported by:	SCUN (with H801SPUB service board); SCUH (with H801SPUB service board)
Supported Features:
MPLS:	MPLS-LDP; MPLS RSVP-TE; MPLS OAM; MPLS-TE
L3 VPN:	L3 interface-based VRF
L2 VPN:	VPLS; PWE3

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Not supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; LLDP; SNMP v1/v2/v3; Syslog; NTP

Compatible Control Boards

Model Number

Description

SCUN:

Control board for MA5603T

4-Port 1GbE (SFP)

SCUH:

Control board for MA5603T

4-Port 1/10GbE (SFP+)

Compatible Power Supply Cards

Model Number	Description
PRTE:	Power supply card for МА5603Т 1 x -48 VDC input

Compatible Uplink Boards

Model Number	Description
GICD:	Uplink card for МА5603Т 4-Port 1GbE (SFP)
GICE:	Uplink card for МА5603Т 4-Port 1GbE (RJ45)
GICF:	Uplink card for МА5603Т 2-Port 1GbE (SFP)
GICG:	Uplink card for МА5603Т 2-Port 1GbE (RJ45)
GICK:	Uplink card for МА5603Т 2-Port 1GbE (SFP) with 1588v2 support
GSCA:	Uplink card for МА5603Т 4-Port 1GbE (SFP) with SyncE support
X2CS:	Uplink card for МА5603Т 2-Port 10GbE (SFP+)

Compatible Service Boards

Universal Interface Cards

Model Number	Description
BIUA:	BITS card for MA5600T 2-Port BITS IN and 1-Port BITS OUT. Supports 2 MHz and E1 signals
CITD:	Combo interface transfer card for MA5600T 2-Port input of either 2 Mbit/s or 2 MHz BITS clock signals; 2-Port input of 1PPS+TOD signals; 1-Port output of either 2 Mbit/s or 2 MHz clock signalss 1-Port output of 1 PPS time signals

GPON Boards

Model Number	Description
GPBD:	GPON board 8-Port GPON. Splitting ratio: 1:64 and 1:128
GPFD:	GPON board 16-Port GPON. Splitting ratio: 1:64 and 1:128
GPBH:	GPON board 8-Port GPON. Splitting ratio: 1:64 and 1:128
GPMD:	GPON board 8-Port GPON. Splitting ratio: 1:64 and 1:128

XG-PON Boards

Model Number	Description
XGBC:	XG-PON board 4-Port XG-PON
XGBD:	XG-PON board 8-Port XG-PON

SPU Boards

Model Number	Description
SPUA:	Uplink board for Open Access scenario 8-Port 1GbE (SFP); 2-Port 10GbE (SFP+)
SPUB:	MPLS board
SPUC:	Uplink board for Open Access scenario 20-Port 1GbE (CSFP); 4-Port 10GbE (SFP+)
SPUF:	Uplink board for Open Access scenario. Supports L2 and L3 transfer modes. 8-Port 1/10GbE (SFP/SFP+)

Ethernet Service Boards

Model Number	Description
ETHB:	Ethernet service card 8-Port 1GbE (SFP)

P2P Service Boards

Model Number	Description
OPFA:	P2P services board 16-Port 100MbE (SFP)
OPGD:	P2P services board 24-Port 100/1000MbE (SFP) or 48-Port 100/1000MbE (CFSP)
OPGE:	P2P services board 24-Port 100/1000MbE (SFP) or 48-Port 100/1000MbE (CFSP). Supports 1588v2 (PTP)

TDM Service Boards

Model Number	Description
CSPA:	CESoP service board. Structure-agnostic TDM over packet (SAToP); 64-Channel E1
TOPB:	TDM Traffic over PSN service board. Supports the following features: Native TDM, CESoP, STM-1 2-Port STM-1 (SFP)
TOPA:	TDM Traffic over PSN service board. Supports the following features: Native TDM (with NH1A/O2CE extension card); CESoP (with EH1A/CSSA extension card); TDM (with 16-Channel E1 (with NH1A/EH1A extension card); TDM (with 2-Channel STM-1 (with O2CE/CSSA extension card);

Voice Service Boards

Model Number	Description
ASPB:	Voice Services board 64-Port VoIP POTS
DSRE:	Voice Services board 32-Channel ISDN
EDTB:	Voice Services board 16-Port SHDSL; 16-Port E1

ATM Service Boards

Model Number	Description
AIUG:	ATM services board 4-Port STM-1 (SFP)

ADSL2+ Service Boards

Model Number	Description
ADPD:	ADSL over POTS service board 64-Port ADSL2+
ADPM:	ADSL over POTS service board. 64-Port ADSL2+. Supports MELT
ADQD:	ADSL over ISDN service board 64-Port ADSL2+
ADKM:	ADSL over ISDN service board 64-Port ADSL2+. Supports ADSL Bonding
ADPE:	ADSL over POTS service board 64-Port ADSL2+. Internal 600ohms splitter

VDSL Service Boards

Model Number	Description
VDRD:	VDSL2 over POTS service board 24-Port VDSL2
VDMF:	VDSL2 over POTS service board 48-Port VDSL2. Supports VDSL2 PTM Bonding
VDNF:	VDSL2 over ISDN service board 48-Port VDSL2
VDJM:	VDSL2 over ISDN service board 48-Port VDSL2. Supports G.INP
VDPD:	VDSL2 over POTS service board 64-Port VDSL2. Supports VDSL2 PTM Bonding
VDPE:	VDSL2 over POTS service board 64-Port VDSL2
VDPM:	VDSL2 over POTS service board 64-Port VDSL2. Supports MELT
VDQM:	VDSL2 over ISDN service board. 64-Port VDSL2
VCMM:	VDSL2 over POTS service board 48-Port VDSL2. Supports MELT supported. Support sVDSL2 PTM Bonding
VCPE:	VDSL2 over POTS service board 64-Port VDSL2. Supports VDSL2 PTM Bonding. Internal splitter
VCPD:	VDSL2 over POTS service board 64-Port VDSL2. Supports VDSL2 PTM Bonding
VCPM:	VDSL2 over POTS service board 64-Port VDSL2. Supports MELT. Supports VDSL2 PTM Bonding

Vectoring Service Boards

Model Number	Description
VPEA:	VDSL Vectoring feature board. Compatible with the following VDSL2 Cards: VCMM, CCPE, VCPD, VCPE, VCPM
VPGA:	VDSL Vectoring feature support. Compatible with the following VDSL2 Cards: VCMM, CCPE. VCPD, VCPE, VCPM

Combo Service Boards

Model Number	Description
CAME:	ADSL over POTS service board 48-Port ADSL2+ and POTS with built-in splitter
CVME:	VDSL over POTS service board 48-Port VDSL2 and POTS with built-in splitter
CCPE:	VDSL over POTS service board 64-Port VDSL2 and POTS with built-in splitter

SHDSL Service Boards

Model Number	Description
SHLM:	SHDSL.bis Service Board 16-Port SHDSL
SHGM:	SHDSL.bis Service Board 32-Port SHDSL

SHDSL Extension Boards

Model Number	Description
SHET:	64-Channel SHDSL Extension Board Compatible with the folowing service boards: SHLM, SHGM

ADSL Splitter Boards

Model Number	Description
SPPLA:	Splitter board. Complex impedance (ETSI TS 101 952 01 01 option A). Compatible with the folowing service board: ADPD
SPPLB:	Splitter board. BT complex impedance. Compatible with the folowing service board: ADPD
SPPLC:	Splitter board. Complex impedance (ETSI TS 101 952 01 01 option B). Compatible with the folowing service board: ADPD
SPPH:	Splitter board. 2B1Q or 4B3T. Compatible with the folowing service board: ADQD
SPPF1:	Splitter board. 600 Ohm. Compatible with the folowing service board: ADPD

VDSL Splitter Boards

Model Number	Description
VSNF:	Splitter board. 600ohms. Compatible with the folowing service boards: VDMF, VDRD
VSNLA:	Splitter board. Complex impedance (ETSI TS 101 952 01 01 option A). Compatible with the folowing service boards: VDMF, VDRD
VSPHA:	Splitter board. 2B1Q or 4B3T. Compatible with the folowing service boards: VDNF, VDJM
VSPLA:	Splitter board. Complex impedance (ETSI TS 101 952 01 01 option A). Compatible with the folowing service boards: VDPM, VDQM, VDPD
VSPLC:	Splitter board. Complex impedance (ETSI TS 101 952 01 01 option B). Compatible with the folowing service boards: VDPM, VDQM, VDPD
