Routers Huawei AR200 Series
Routers Huawei AR200 Series

End-of-Sale

Please see "Similar Products" below.
Description Specifications Additional materials

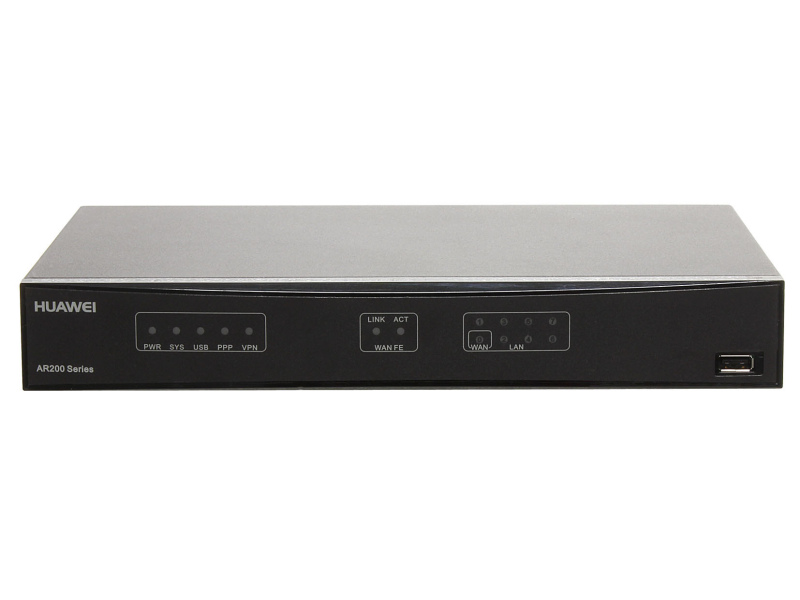

Huawei AR200 is series of small enterprise routers

General All
Interfaces
1
AR201:
  • 1-Port 10/100MbE (RJ45) WAN;
  • 8-Port 10/100MbE (RJ45) LAN;
  • 1-Port USB;
  • 1-Port console (RJ45)
AR207:
  • 1-Port ADSL (RJ11) WAN;
  • 8-Port 10/100MbE (RJ45) LAN;
  • 1-Port USB;
  • 1-Port console (RJ45)
AR207G-HSPA+7:
  • 1-Port ADSL (RJ11) WAN;
  • 8-Port 10/100MbE (RJ45) LAN;
  • 1 x SIM card slot;
  • 2 x 3G antennas (SMA);
  • 1-Port USB;
  • 1-Port console (RJ45)
AR208E:
  • 1-Port G.SHDSL (RJ11) WAN;
  • 8-Port 1GbE (RJ45) LAN;
  • 1-Port USB;
  • 1-Port console (RJ45)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)/(in)
44 (1U) x 300 x 216.4
(1.73 (1U) x 11.81 x 8.52)
4
Maximum Weight (kg)/(lbs)

2.8 (6.2)

5
Environmental Conditions
6
Relative Humidity

5 to 95

7
Operating Temperature (°C)/(°F)

0 to 45 (32 to 114)

8
Maximum power consumption (W)

36

9
Acoustic noise

0

10
WLAN
11
3G / LTE
AR207G-HSPA+7:
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz)
  • HSPA+/HSUPA/HSDPA/WCDMA: 850/900/1900/2100 (MHz)
12
AP Management Feature
13
Maximum AP Supported:
8 (with license)
Compatible AP:
AP6010SN-GN; AP6010DN-AGN; AP6310SN-GN; AP6510DN-AGN;
AP6610DN-AGN; AP7110SN-GN; AP7110DN-AGN; AP5010SN-GN;
AP5010DN-AGN; AP3010DN-AGN; AP6510DN-AGN-US; AP6610DN-AGN-US; AP5030DN; AP5130DN; AP7030DE; AP2010DN; AP8130DN; AP8030DN; AP9330DN; AP4030DN; AP4130DN; AP3030DN; AP2030DN; AP9131DN; AP3010DN-V2
14
Performance
15
Switching Bandwidth (Mbit/s)

150

16
MAC Address Table (entries)

2000

17
ARP Table (entries)

2000

18
Voice Features
19
Supported protocols: SIP / H.248  (with license)
Voice codecs: G.711A/µ
Fax: T.38
20
Layer 2 Features
21
VLAN

IEEE 802.1Q: 128; GVRP

22
Layer 2 Reliability

STP/RSTP/MSTP

23
Layer 3 features
24
Routing Table (prefixes)
Routing Table (RIB): 20,000
Forwarding Table (FIB): 10,000
25
IP Routing

Static Routing; BGP; IS-IS; OSPFv2

26
MPLS / VPN
27

IPSec VPN (with license); GRE; L2TP

28
Security
29
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server: Supported
BRAS: Not supported
NAT: Supported
Packet Filtering: Supported
30
Management
31

Telnet; SNMP v1/v2/v3; SSH; Web

32
Power Supply Unit (PSU)
33
AC PSU
Type: External
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz
34
DC PSU

Not supported

35
Compatible Expansion Cards
36

Not supported

37

AR200 Datasheet (en)
